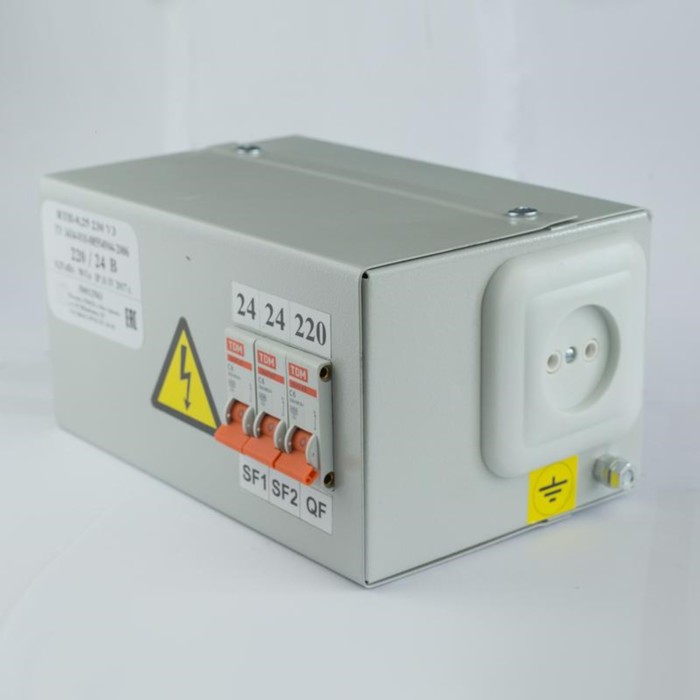

A box with a decreasing transformer of Kostroma OS0000002235 220/24V, 3 circuit breaker 97

A box with a lowering transformer of the YATP 0. 25-220/24 is designed to transform the AC voltage 220V of the primary circuit into a voltage of 24V secondary circuit. The chains are not interconnected and have a frequency of 50 Hz.

The box is equipped with a socket, which allows you to squeeze tools, lighting devices and other electrical equipment operating at a voltage of 24V.

The transformer box is made of steel sheets and is designed for installation on a vertical surface (most often on the wall). The dimensions of the case are 127 x 230 x 142 mm.

inside the box are mounted:

- the transformer of the YATP 0. 25-220/24;

- the automatic modular introductory switch;

- 2 modular machines.

The rated insulation voltage for this equipment is 600V. You can attach the TN-S or TN-C type to the box. Equipment can be operated in temperature ranges +10 - +40 degrees Celsius. At 20 degrees, humidity should not exceed 60%. It is not recommended to install a transformer in rooms with a high content of conductive dust, chemicals in the air.
