ACV PB-622 acoustic system, 16.5 cm, 180 watts, set 2 pcs

Coaxial two-lane acoustics ACV PB-622

two-lane coaxial from ACV with a maximum power of 180 W and a high sensitivity of 88 dB. Acoustics can successfully connect both directly to the radio and to the external amplifier, in any case it will provide the car with a high -quality sound with the desired detail and volume.

representative of the ACV series of the PB series, which is not a flagship, but It has excellent characteristics in design and performance. These columns are more powerful than the PB-422 and PB-522 and have more overall speakers of 6.5 inches. If you need to obtain a more indicative result, attention should be paid precisely to this model.

the design

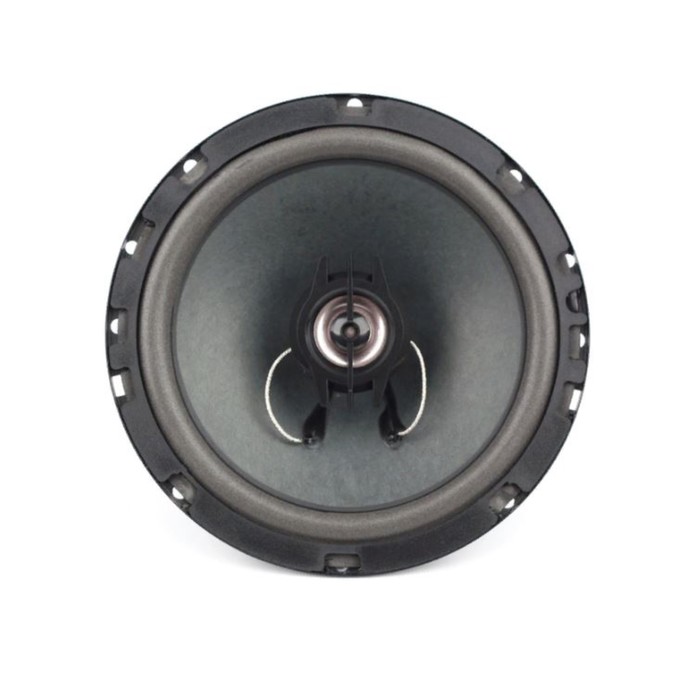

pb-622 are executed in the standard for two-lane coaxial acoustics of the structure. In each basket of steel, two speakers - midwofer and tweeter. This arrangement provides a better fusion of the sound of medium and high frequencies. The paper diffuser has excellent sound rendering indicators due to the features of the structure of the material and its lightness. The design also has a captone sound coil and a magnet of 6 ounces. The tweeter is executed from Maylar, it definitely reproduces the upper frequencies without distorting them. The suspension is made of foamed rubber, it is reliable and elastic, provides the diffuser with the desired amplitude of the movement and significantly prolongs the service life of the columns.

power

rarely users listen to music with small volume. Typically, acoustics is bought in order to improve the performance of the audio system and get the result that will be really distinguishable by ear. That is why the creators of the products have placed a special emphasis on the supply of performance and the reliability of components.

the speakers have a three -time power supply and easily cope with high loads. Durable diffuser, large sound coil, reliable steel baskets - all these are inalienable components of successful work, which will delight the user for a long time.

2 -lane coacca 16cm 70Hz - 20,000GS Sensitivity: 88DB/W/M 4 60W Max 180W

characteristics:

• type of coaxial acoustics
• size, inch/mm 6.5/165
• range frequencies, Hz 70-20000
• Magnit of the ND-Dynamics Neopia
• Material Materials of the DOM-Dynamics Maylar
• Magnit of the NPU/Assistance Ferrite
• Basket of the low-frequency/v-dynamics steel stamped
• maximum power, vt 180
• nominal power, vt 60
• resistance, ohm 4
• Sensitivity, dB 88
