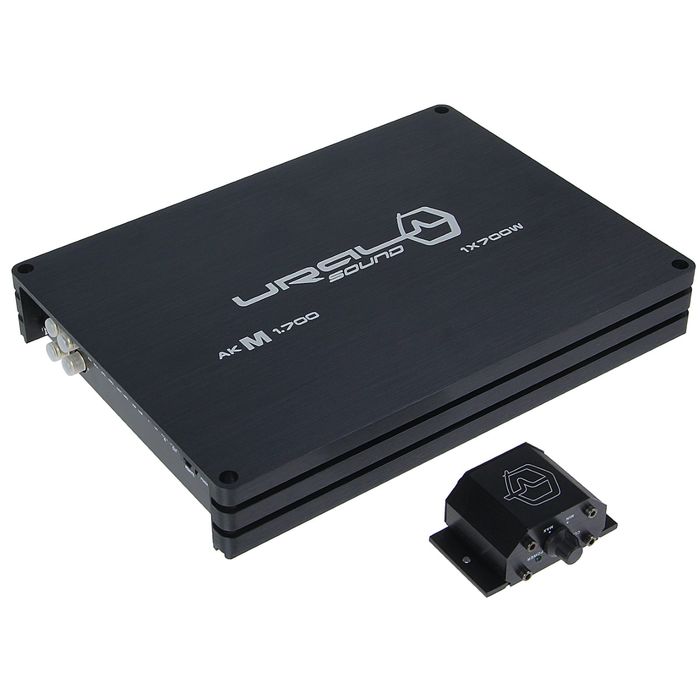

AKM 1.700 amplifier, single -channel, class D, 27.1x19.8x4.1 cm

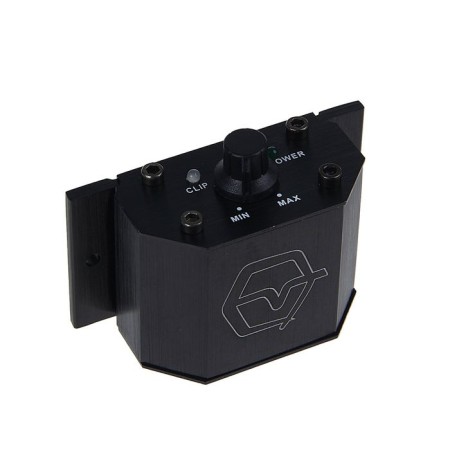

The ultracompact amplifier of the class D. Stable work at a load of 1 Ohm; adjustable subsonic (15 Hz - 50 Hz); powerful Hexfet Mosfet transistors; the possibility of smooth phase adjustment; Tender BAS TARE with Clippus indication in the kit; The ability to use two amplifiers simultaneously in the bridge mode.

characteristics

• class d
• nominal output power (4 Ohms), W: 1x350
• nominal output power (2 Ohms), W: 1x550
• Nominal output (1 Ohm), W: 1x700
• Nominal output power in the bridge of the inclusion of two amplifiers (4 OM), Tue: 1x1100
• Nominal output power in the bridge inclusion of two amplifiers (2 Ohms), W: 1x1500
• Frequency range (-3DB), Hz, not already: 10–10– 250
• The coefficient of harmonic distortion, %, no more than: 0.05
• Separation of channels, DB, at least: 60
• Input sensitivity, B: 0, 0, 0, 2–6
• Intercessified attitude signal/noise (IEC A), DB, at least: 100
• FNCH adjustment limits (12 dB/OKT), Hz: 30-250
• limits of adjustment of the subsoniki filter (12 dB/Oct), Hz: 10-55
• Bas reinforcement adjustment (45 Hz), dB: 0–12
• limits Smooth phase adjustment, °: 0-180
• Dimensions, mm: 271 x 198 x 41
