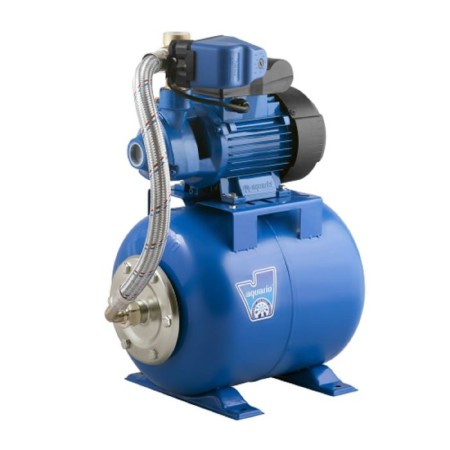

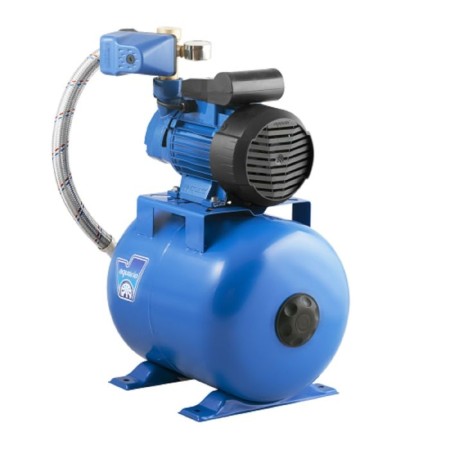

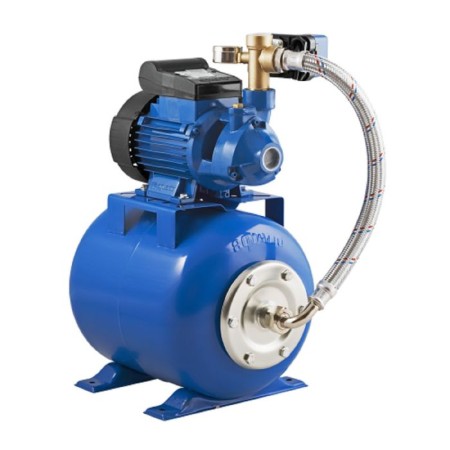

Aquario Auto Adb-60, 760 watts, 55 l/min, pressure 40 m, tank 18 liters

Aquario pumping automatic station is used in individual water supply systems. This model serves to pump pure cold water from wells, wells, open ponds, etc.

Operational restrictions

• Installation: in a dry ventilated room/on the street in A place protected from direct sunlight and rainfall.
• The maximum absorption height: up to 7 m.
• The maximum allowable pressure in the pump housing: 8 bar.
• Environmental temperature: from +1 to +40 ° C.
• The temperature of the pumped water: from +1 to +60 ° C.
• The maximum size of solid particles in pumped water: 0.1 mm.

The characteristics

• nominal (average) productivity range: 10–35 l/min.
• nominal (average) range of working pressure: 12–42 meters of water column (1.2–4.2 atm.).
• Pump engine: air cooling, single -phase, asynchronous, with a short -closed rotor, trigger capacitor and built -in protective thermal relay.
• Power network parameters: 220 V, 50 Hz.
• The heat resistance class of engine insulation: V.
• Engine protection class: IP44.
• Type of the working wheel: vortex.
• Stator winding material: 100 % copper.
• Material of the core of the stator and rotor: electrical cold steel.
• Material of the pump shaft: stainless steel AISI 304.
• The material of the pump body: cast iron with brass inserts (reduce the risk of blocking the working wheel).
• Workwap material: brass.
• Capacity of the accumulator: 18 l.
• Material of the accumulator membrane: ethylene-protopylene rubber (EPDM).
