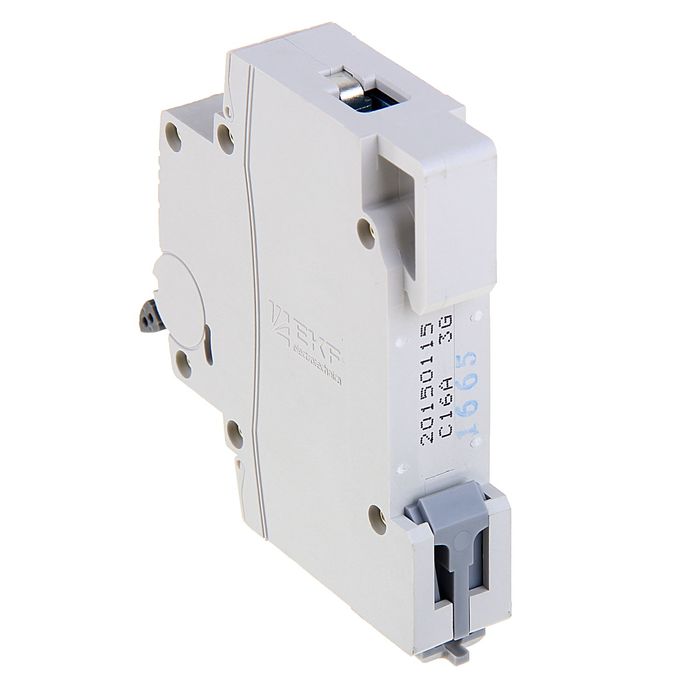

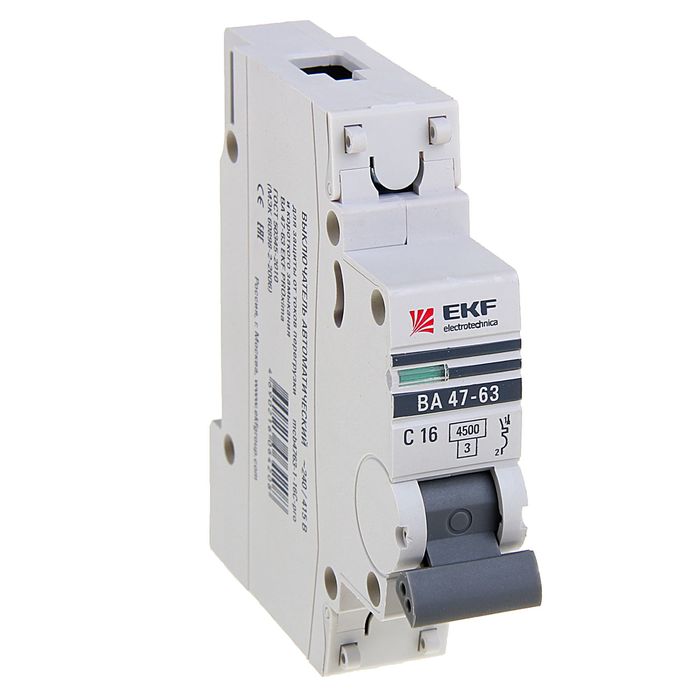

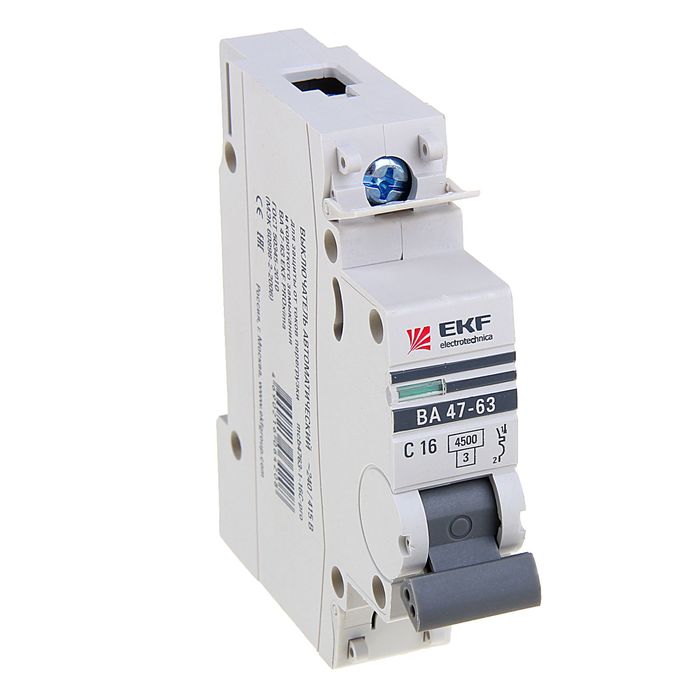

Automatic circuit breaker EKF Proxima, 1P, modular, 16 A

Automatic single-pole circuit breaker EKF Proxima Va 47-63 4.5ka is designed to protect from voltage drops and short circuits of electrical circuits.

The device’s body is made of durable plastic, the contact of the movable switch is equipped with a silver -containing attack, due to which the service life of the device is increased.

The characteristics

• Nominal working voltage: 230 V.
• Method of installation: Din-rack.
• Frequency: 50 Hz.
• The width of the number of modules: 1
• Type of voltage: ac.
• Climate performance: UHL4
• Nominal current: 16 A.
• The number of poles: 1p.
• The maximum disconnection: 4.5 ka.
• Degree: IP20.
• Size: 80x18x72 mm.
