Automatic circuit breaker EKF Proxima, 1P, modular, 63 A
$11.93
In Stock
Characteristics
A country
China
Disabled ability
4.5 ka
Method of installation
On a DIN-rack
Nominal current, and
63
Rated voltage
220 century

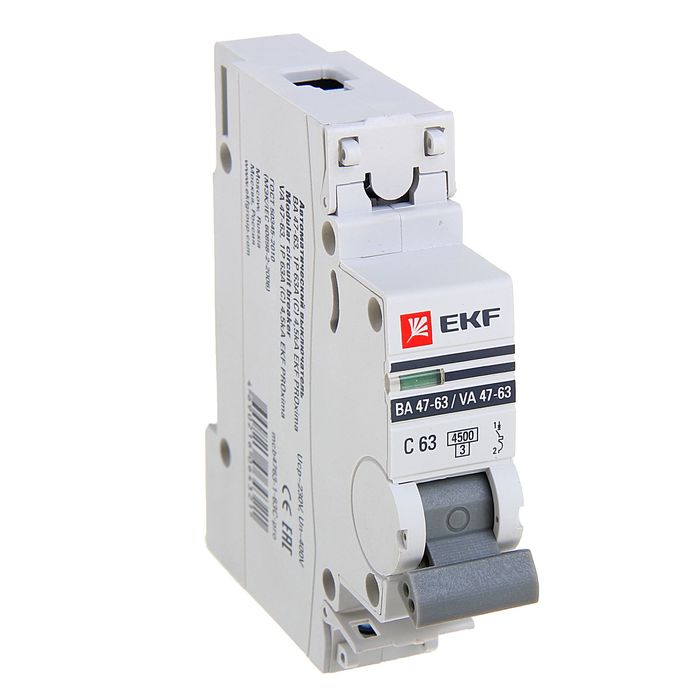

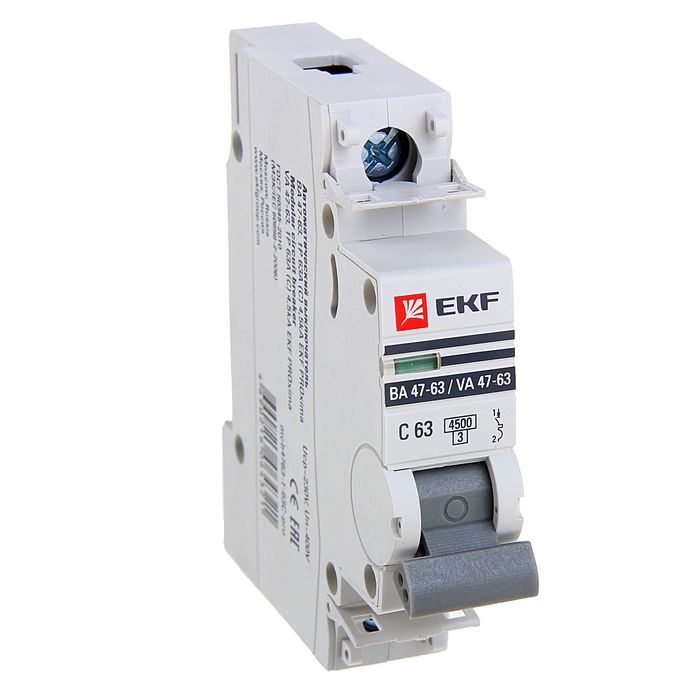

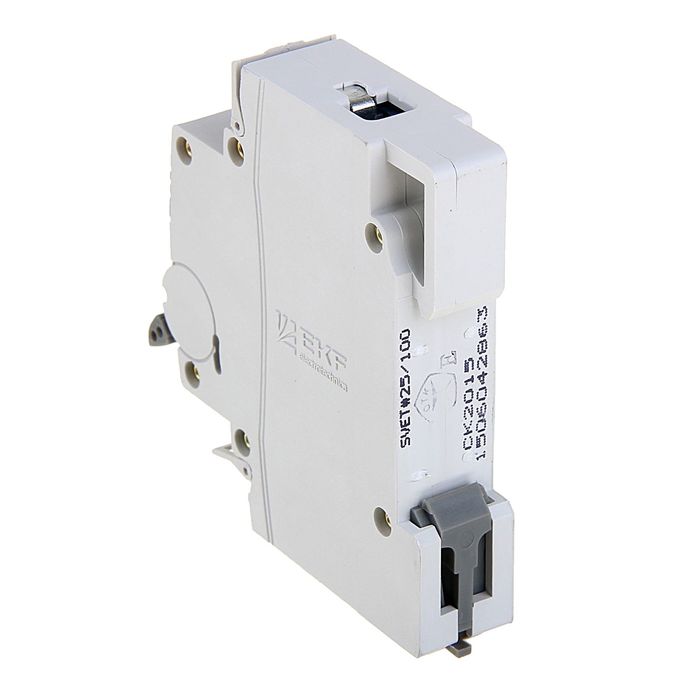

Automatic single-pole circuit breaker EKF Proxima Va 47-63 4.5ka is designed to protect from voltage drops and short circuits of electrical circuits.
The device’s body is made of durable plastic, the contact of the movable switch is equipped with a silver -containing attack, due to which the service life of the device is increased.
The characteristics
- Nominal working voltage: 230 V.
- Method of installation: Din-rack.
- Frequency: 50 Hz.
- The width of the number of modules: 1
- Type of voltage: ac.
- Climate performance: UHL4
- Nominal current: 63 A.
- Number of poles: 1p.
- The maximum disconnection: 4.5 ka.
- Degree: IP20.
- Size: 80x18x72 mm.
| Characteristics | |
| A country | China |
| Disabled ability | 4.5 ka |
| Method of installation | On a DIN-rack |
| Nominal current, and | 63 |
| Rated voltage | 220 century |
| The characteristic of the operation | C |
| The number of poles | 1 |
| Type of protection device | Circuit breaker |
