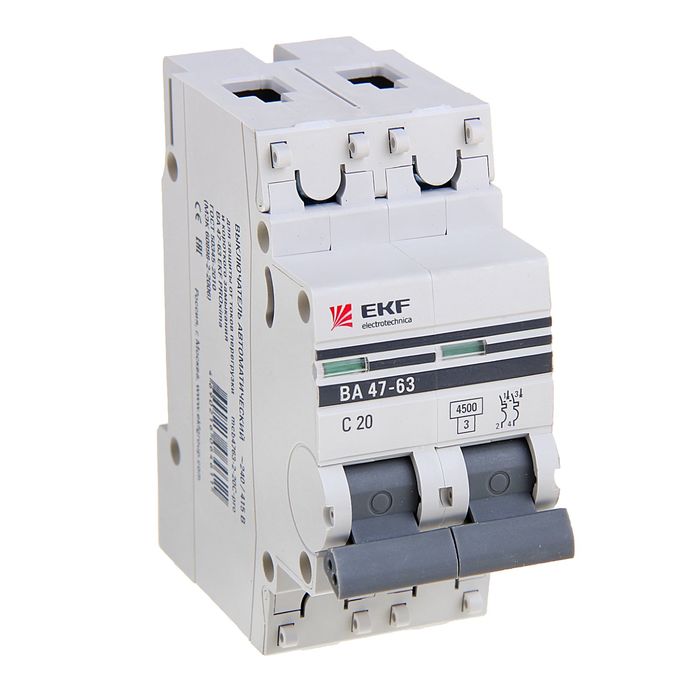

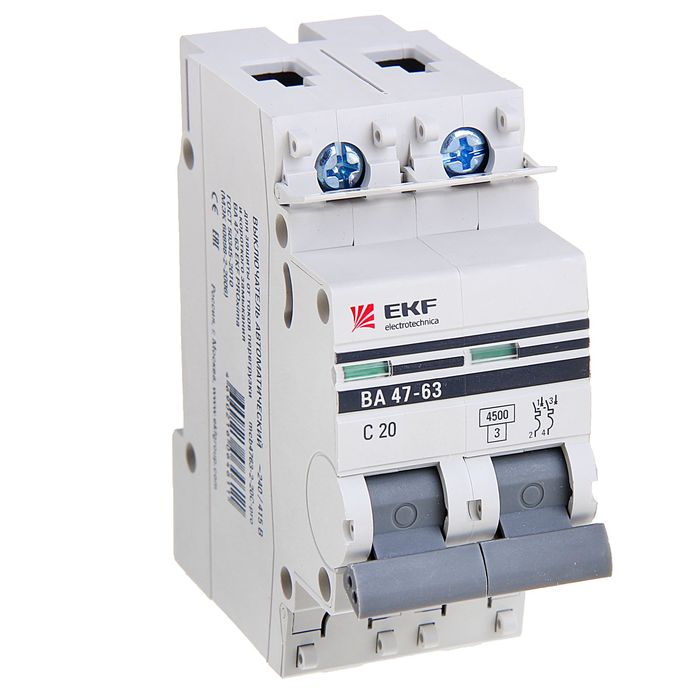

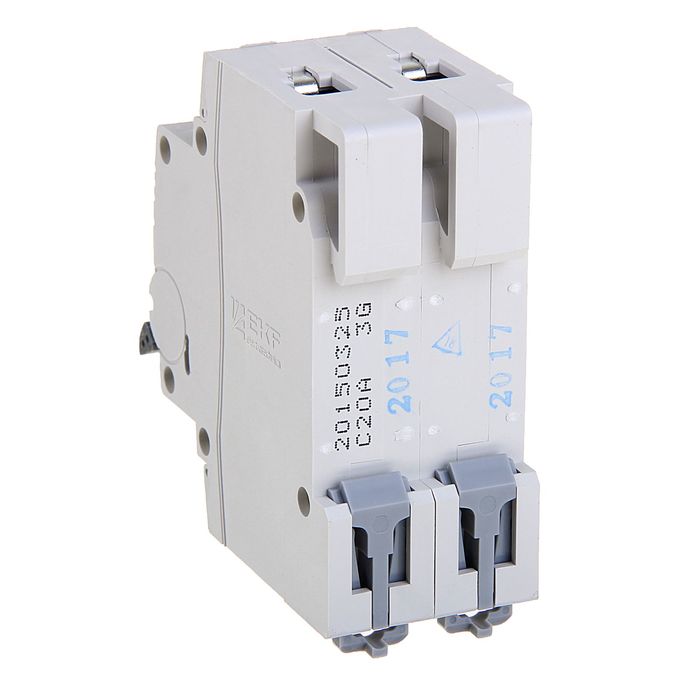

Automatic circuit breaker EKF Proxima, 2P, modular, 20 A

Automatic two-pole circuit breaker EKF Proxima Va 47-63 4.5ka is designed to protect against voltage drops and short circuits of electric circuits.

The device case is made of durable plastic, the contact of the movable switch is equipped with a silver -containing attack, due to which the life of the device is increased.

characteristics

• Nominal operating voltage: 400 V.
• Method of installation: DIN-RAKA.
• Frequency: 50 Hz.
• The width of the number of modules: 2
• Type of voltage: ac.
• Climate performance: UHL4
• Nominal current: 20 A.
• The number of poles: 2p.
• The maximum disconnection: 4.5 ka.
• Degree: IP20.
• Size: 80x36x72 mm.
