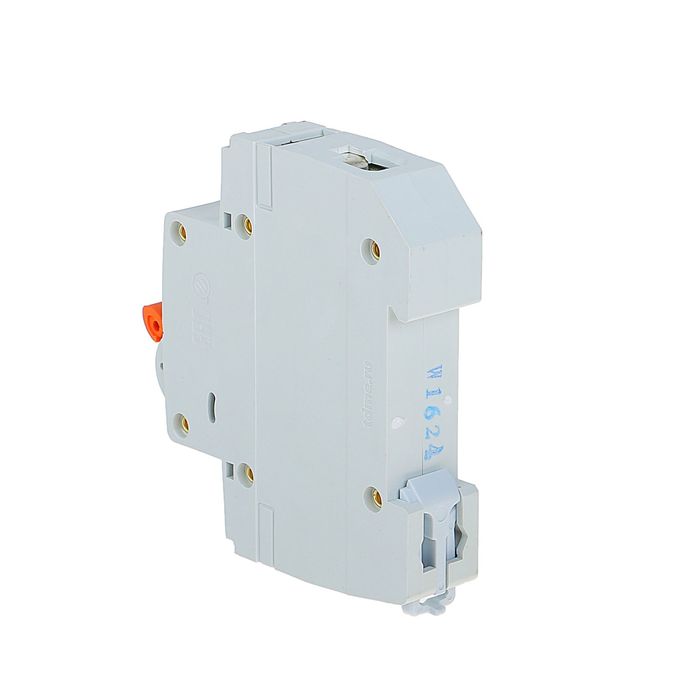

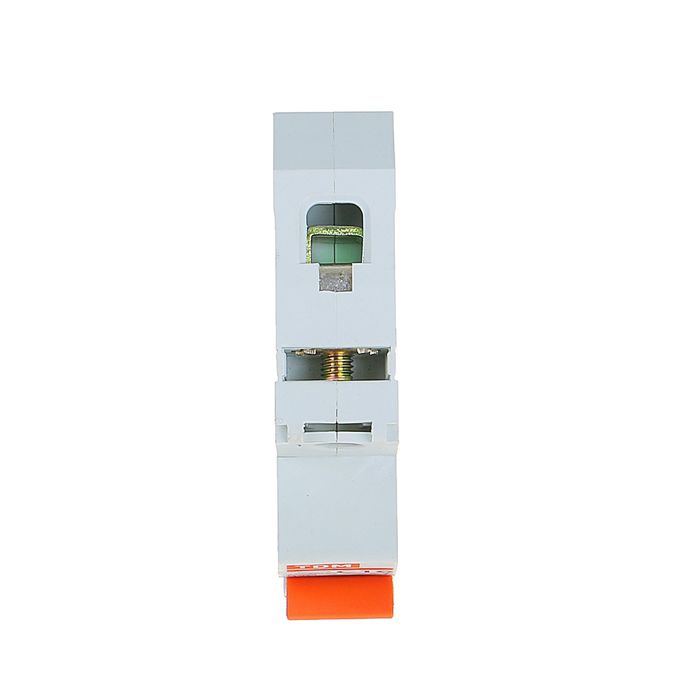

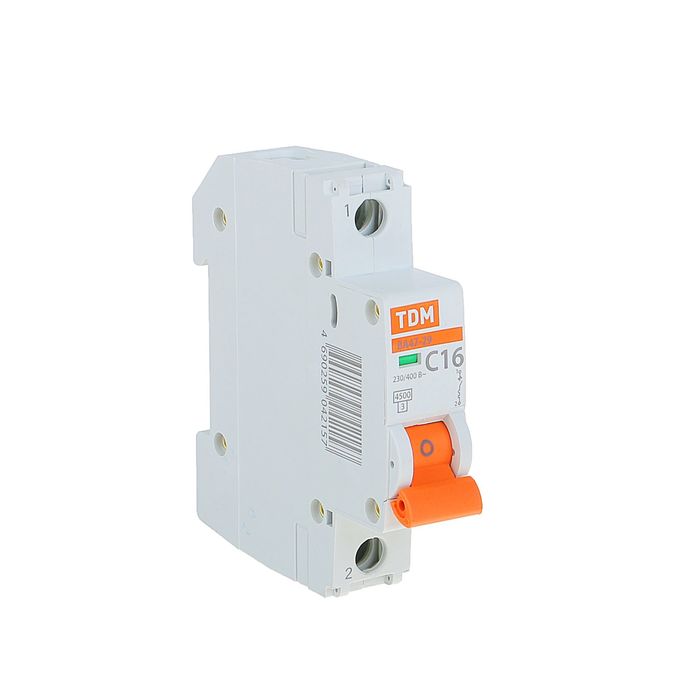

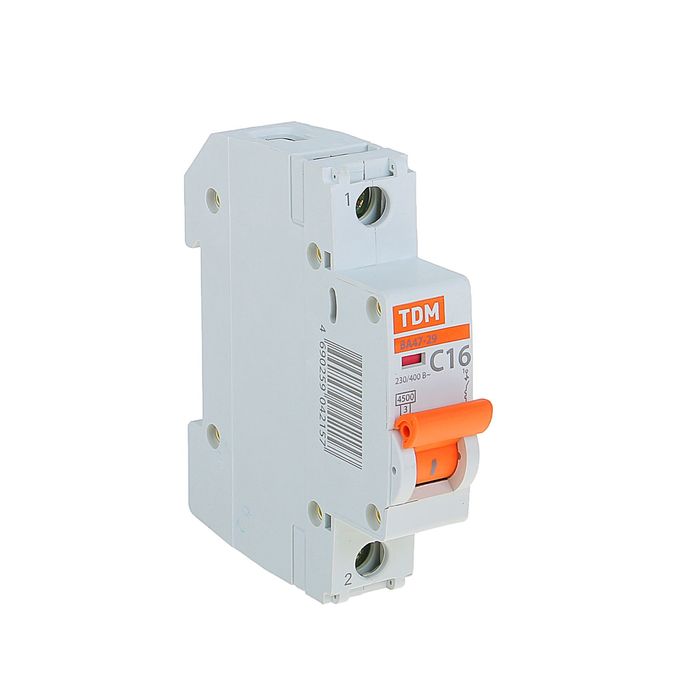

Automatic switch TDM VAL47-29, 1P, 16 A, 4.5 ka

VA47-29 TDM automatic circuit breaker is an introductory-distribution device for residential and public buildings. The product with a characteristic C is used to protect in the electrical stress electrical.

characteristics

• nominal current: 16 A.
• Nominal disconnecting differential current: 4.5 ka.
• Reamed voltage with a frequency of 50 Hz: 230 - 400 V (~).
• Nominal disconnecting ability: 4500 A.
• The maximum cross section of the attached conductors: 25 mm² -for multi -core wires, 35 mm² -for one -core.
• Range of operating temperatures: from -40 to + 50 ° C.
• The number of poles: 1.
• The moment of tightening: 3 h/m.
• Warranty period: 5 years.
