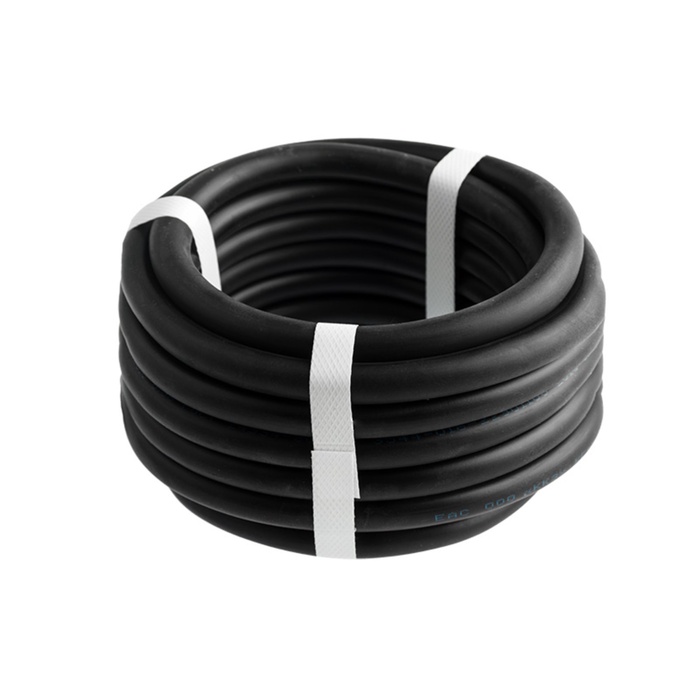

Bay cable Flexible welding KGTP-X 1x35 mm², length 3 meters rexant

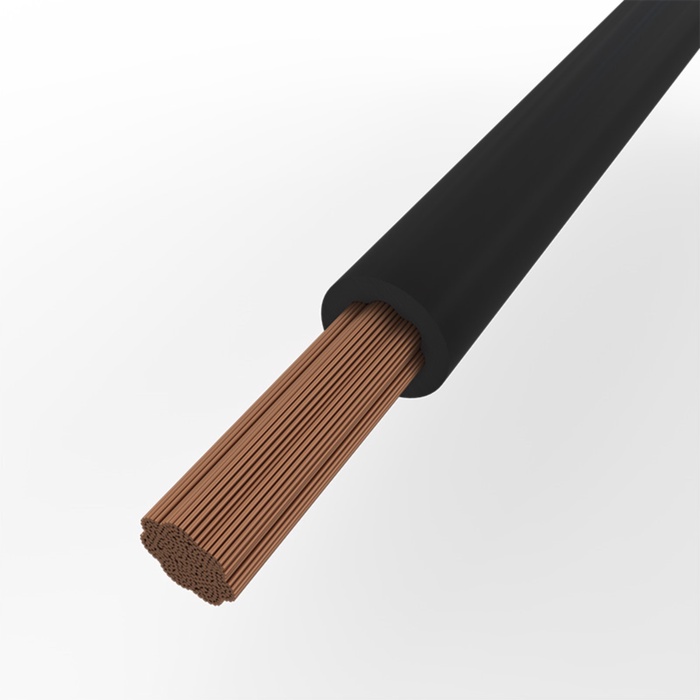

conductive veins-copper, round in shape, multi-core class 5 according to GOST 22483-2012. The number of cores is 1 with a nominal cross section of 10.0-50.0 mm².
a composition from a composition based on stylical thermoelastoplasts.
In the same cable cables, KGTP-KL is allowed to replace the insulation and shell isolated -riferous shell made of thermo-elastoplast.
Black shell color.
application:
KG cables are used in power units, moving lifting mechanisms, lifting equipment, power tools and other equipment of high power, as well as in welding machines for various types of welding work. The cables are designed to join mobile mechanisms to electric networks at a variable voltage of 660 in a frequency of up to 400 Hz or a constant voltage of 1000 V, with bends with a radius of at least 8 diameters of the cable at the permissible temperature of the heating of conductive cores to 75 ° C. The range of permissible temperatures is 60...+50 ° C.
Cable decoding:
K - cable
g - flexible
TP - isolation and shell of thermo -elastoplast
HL - cold -resistant performance
| Characteristics | |
| A country | Russia |
| Cable Mark | KGTP-KL |
| Flot material | Thermolastoplast |
| Height, see | 1.64 |
| Length, see | 300 |
| Operation temperature, ° C. | From -60 to 50 ° C |
| The number of veins | 1 |
| Width, see | 1.64 |
