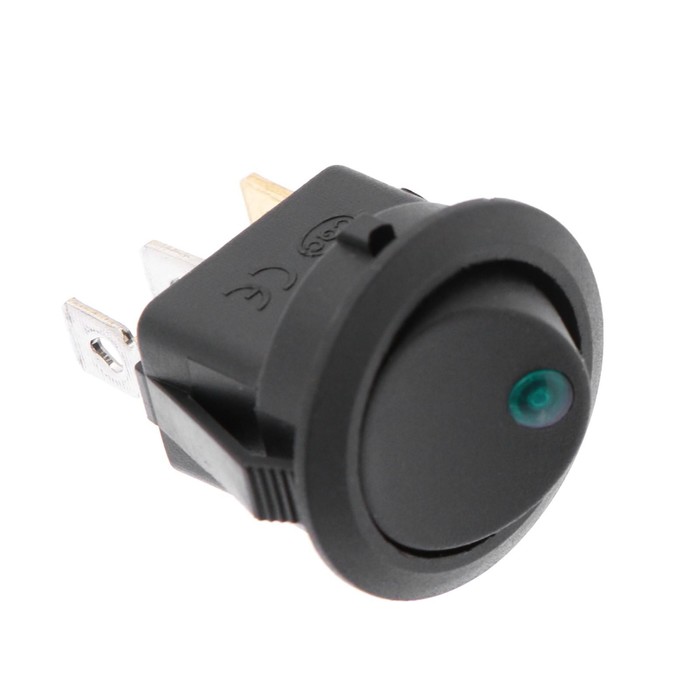

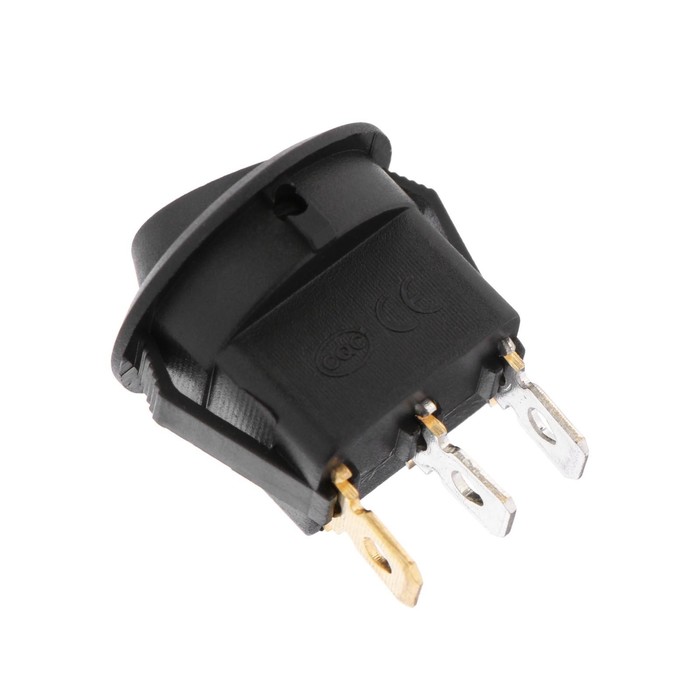

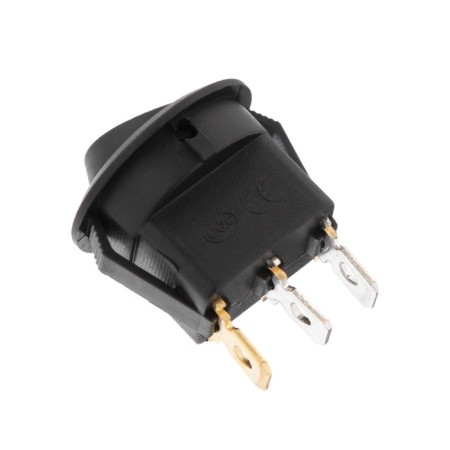

Black switch with green backlight, 12 V, 20 A, 3 contacts

The switch is designed to switch electrical circuits. The keyboards (rocker) switches are used as components of various electrical equipment (in audio equipment, power supplies, electrical installations in various industries, cars, and many other places), with a current voltage of not more than 12 V. such a keyboat has two provisions. The principle of action is based on moving the key to one of the positions. To switch to the right position, you need to make some efforts to the key. Installation is carried out without the use of screws on flat panels with a thickness of 0.8 mm to 3 mm. Contact connection is carried out by a flat terminal or using soldering.

characteristics:

• Nominal voltage: 12 V;
• Nominal current: 20 A;
• Contact resistance: not more than 35 MOM;
• Type of switching: on-off;
• Number of contact groups: 1;
• Number of contacts in Contact group: 3;
• Fixation of the provisions: yes;
• indicator of switching provisions: green;
• working temperature: from -25 ℃ to +85 ℃; < /li>
• degree of protection (IP): IP30;
• resource: 10,000 cycles.
