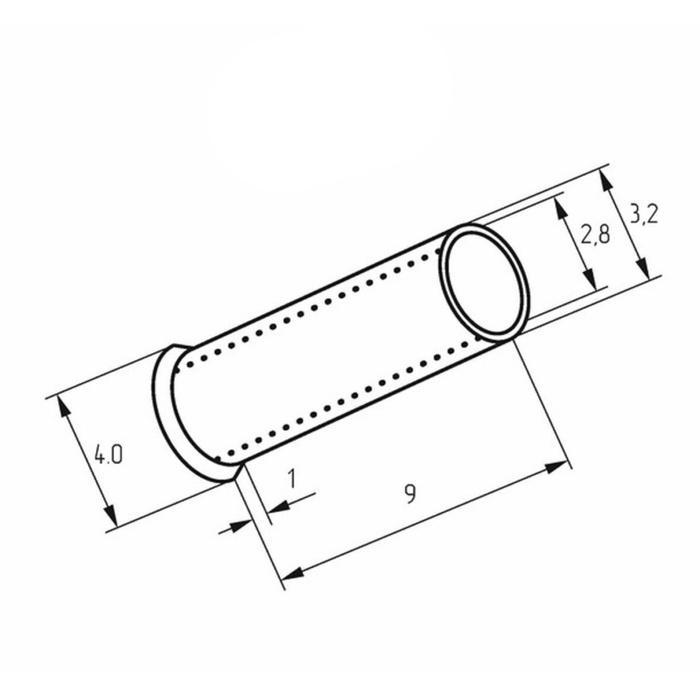

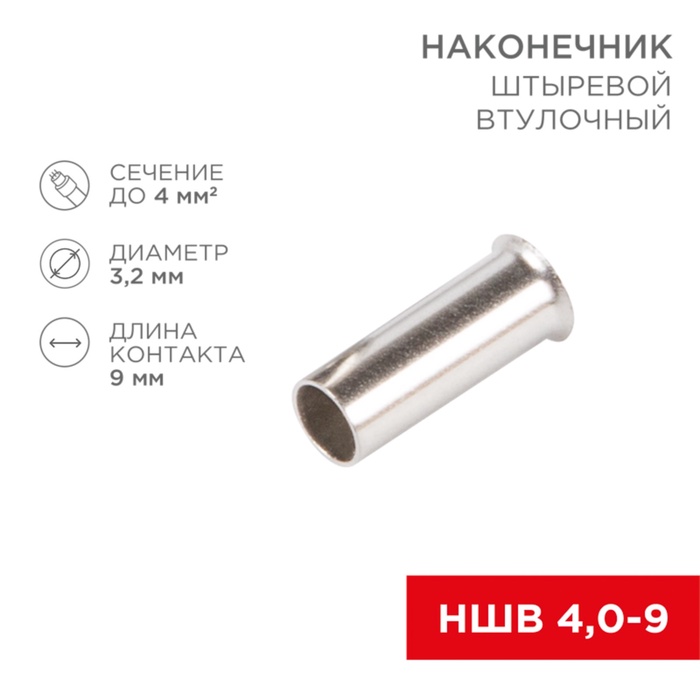

Boat-9 mm pins 4 mm² tips (NSHV 4.0-9/NG 4.0-9) Rexant

The bayonet's sleeve tip is designed to connect various electrical equipment and installation of electric networks.

Such a modern method of preparing a cable replaces the process of elaboration or twisting of multi -core copper wires, and also forms a holistic end of the cable for subsequent connection to industrial or domestic electrical equipment.

The sleeve tip is made of brass with a surface electrolytic pound and is designed for the installation of one conductor with an appropriate cross section.

previously cleaned vein is started inside the brass bus and is squeezed out with special press rolls in a few seconds.

For the convenience of establishing a multi -core wire inside the brass sleeve, one side is broken off.

The connection of the cable using a sleeve tip significantly saves time for the installation of the power grid.
