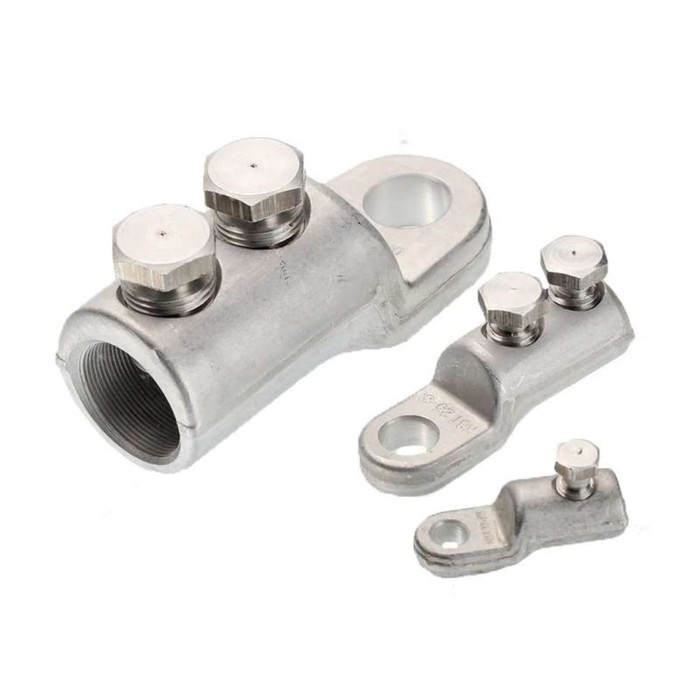

Bolovaya Tip 1NB-10/25 kW 65908,

- are designed for ending of any type of cable core: aluminum and copper, round and sector, mono -carrier and multi -core

- each bolt tip is multi -sized and designed for the range of cable sections

- The in -line location of the bolts on the tip of the tip

is an eccentric hole for the cable cable in the tip of the tip

- the working voltage: up to 10 kV

- the material of the case and bolts: special Aluminum alloy

- coating: without coating

- the mount on the wire is carried out by screwing bolts with a breakdown. The bolted heads are broken when the established moment is reached, which provides the optimal mechanical and electrical properties of the contact connection

- the design of the bolts has several grooves - breakdowns “Shek”, due to which the head breakdown occurs or below the surface of the tip

- the corrugated roll on the inner surface of the cylindrical part of the tips increases the area and mechanical strength of the contact connection

- on the shoulder blade of each tip, the marking is knocked out indicating the nominal range of sections of the cable and the manufacturer’s logo

- the NMB -6 set (kW)

- recommended for the installation of heat -shrinkable couplings and equipment repair service services

- the ranges of the use of bolted tips and connectors coincide with the ranges of heat -assigned cable couplings, which makes them an ideal addition to configure cable couplings
