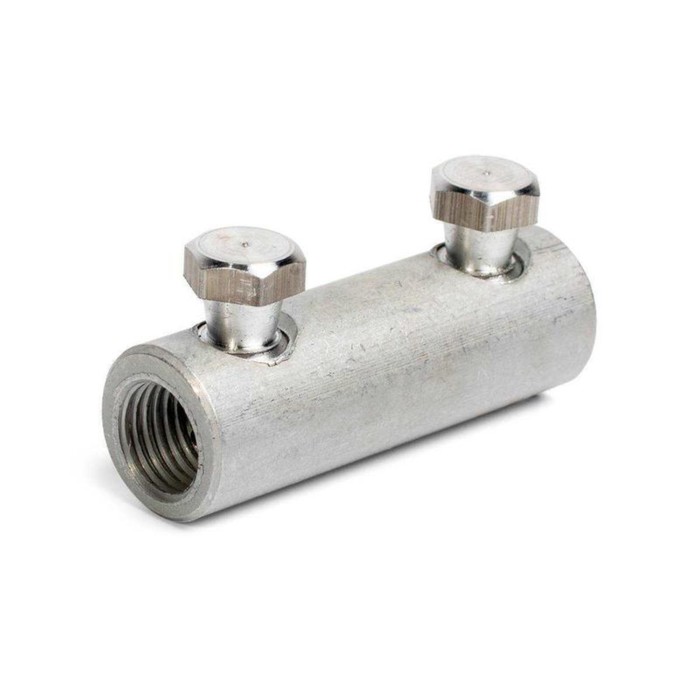

Bolt kW 65813, 2SB-10/25

- designed for connecting any type of cable cores: aluminum and copper, round and sector, mono -vegetable and multi -core

- each bolt connector is multi -sized and designed for the range of sections of the cable

- The in -line arrangement of the bolts on the connector case

is an eccentric hole for the cable cable in the connector case

- the operating voltage: up to 10 kV

- the material of the case and bolts: special Aluminum alloy

- coating: without coating

- the mount on the wire is carried out by screwing bolts with a breakdown. The bolted heads are broken when the established moment is reached, which provides the optimal mechanical and electrical properties of the contact connection

- the design of the bolts has several grooves - disruption “Shek”, due to which the head breakdown occurs or below the surface of the connector

- corrugated rolling on the inner surface of the cylindrical part of the connectors increases the area and mechanical strength of the contact connection

- on each connector, the marking is knocked out indicating the nominal range of sections of the cable and the manufacturer’s logo

- the installation tool: NMB -6 set (kW)

- recommended for the installation of heat -shrinkable couplings and equipping repair services

- the ranges of the use of bolted tips and connectors coincide with the ranges of thermal cable couplings, which makes them an ideal addition to equip the sets of cable couplings
