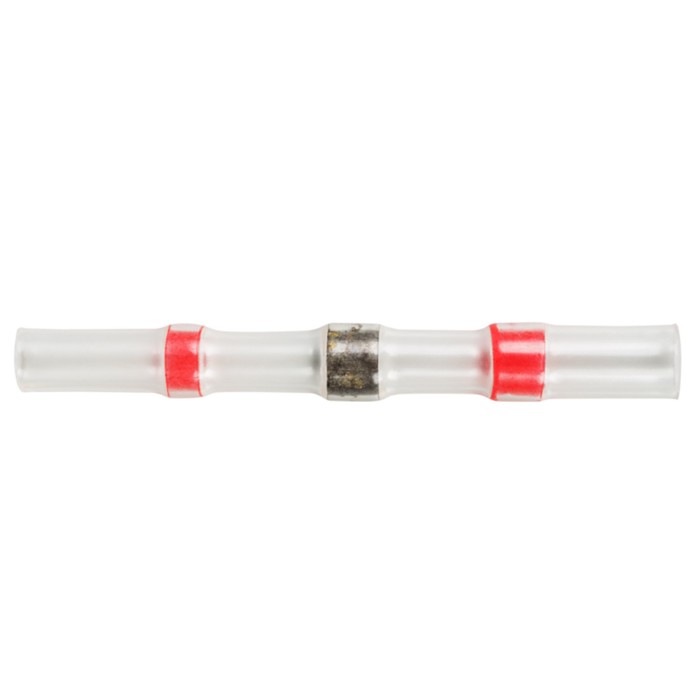

Cable I isolated REXANT PC-T 1.5, heat-shrinkable for soldering L-40 mm 0.5-1.5 mm, red

The connector thermal-sensitive to soldering (L-40 mm) 0.5-1.5 mm² Red Rexant is designed to connect copper multi-wire wires overlapping or vastek by heat treatment. >

• To ensure visual monitoring of the installation process, transparent isolation material is used;
• in the middle of the connector is a sleeve of low-temperature solder of the tin-sunglance group;
• on both sides on the internal The surfaces of the heat-assigned tube are glue strips that ensure the tightness of the connection after shrinkage.

The main characteristics:

• The section of the used copper multi-ceremony wires: 0.5-1.5 mm²
• the length of the connector: 40 mm
• permissible limit voltage: 690 V
• Thermal resistance of insulating material: 125 ° C
• Moisture disease: IP67
• isolation material: stitched polyethylene, without halogens
• the color of thermal glue strips: red

To achieve the best result, it is necessary to warm the arrow ring from all sides to melting to melting around the contact connection of the wires.
