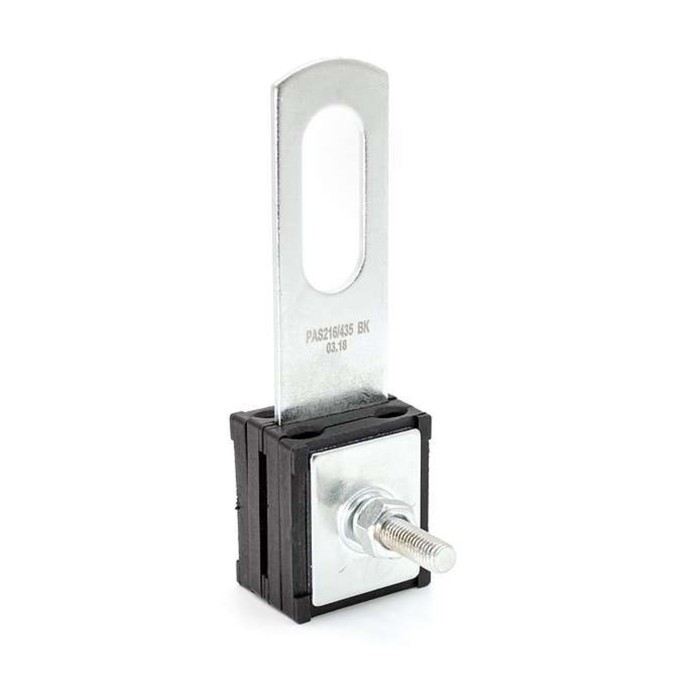

Clamp Anchor-Supporting VK 20601111, 2x16-4x35KV. mm

Purpose of

The anchor-supporting clamp PAS 216/435 is used for anchor and intermediate fastening of 2-4-filled SIP with a cross-section of 16-35 mm2.

Scope

The universal design of the clamp allows you to easily turn it into an anchor or supporting clamp by a turning element by 90 ° by weakening the bolt. The relief of the surface of the wedges provides a reliable fixation of the conductor, preventing it from slipping, without damaging the insulation. Hoock mount.

Principle of action

The sequence of installation operations:

- weaken the nut with a wrench of 17 mm.

- straighten the twisting of the SIP and place individual veins in the clip housing designed for this.

- fix the veins in the channels of the clip case by tightening the nut with a fixed puff moment - 35 N · m.

- pull the wire along with the clamp and install the clamp on the mounting hook (bracket).

- the necessary tool for installation is a wrench of 17 mm.
