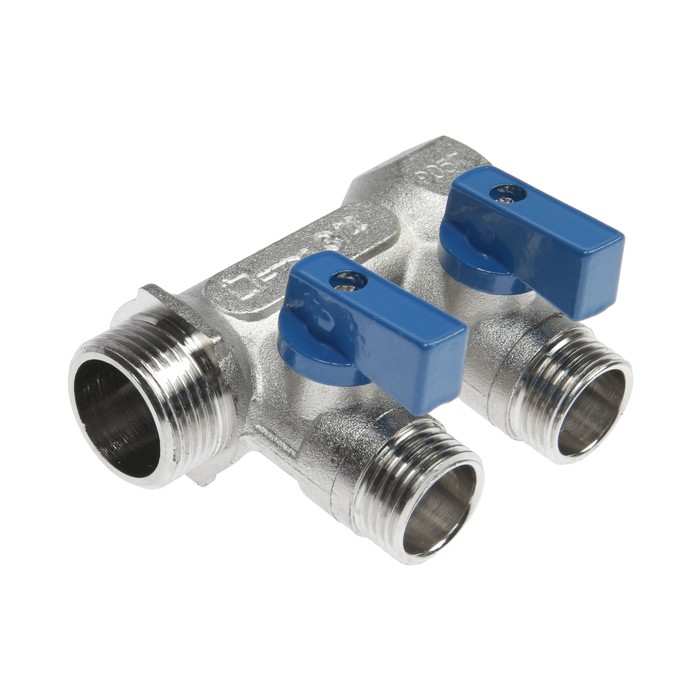

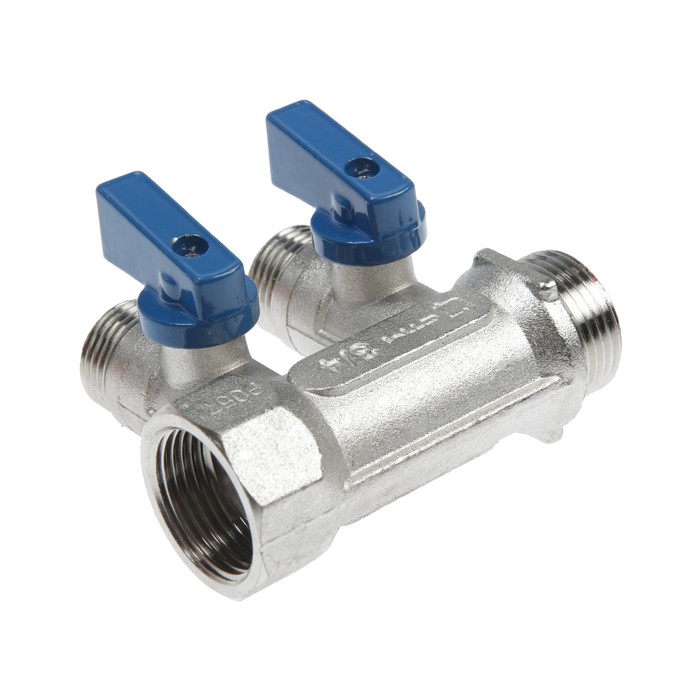

Collector "STM", 3/4 "X1/2", external thread, 2 outputs, with ball valves, nickel.

The collector for 2 outputs with ball valves 1/2 "with external threads is designed to distribute the coolant in water supply systems in individual contours or devices. The manifold is used on pipelines of cold and hot water systems, drinking, heating, compressed air, liquid hydrocarbons , as well as technological pipelines that transport fluids that are not aggressive to the materials of the product.

the diameter of the collector - 3/4 ", the thread is internal or external. The housing is made of high -quality hot -propressed brass with nickelled coating. The ball crane is a non -combination. The housing and rods of the crane are made of high -quality hot -propressed brass with nickel -plated coating. The ball shutter is made of the same material, polished and covered with chrome. The tightness of the crane shutter corresponds to the highest class a.

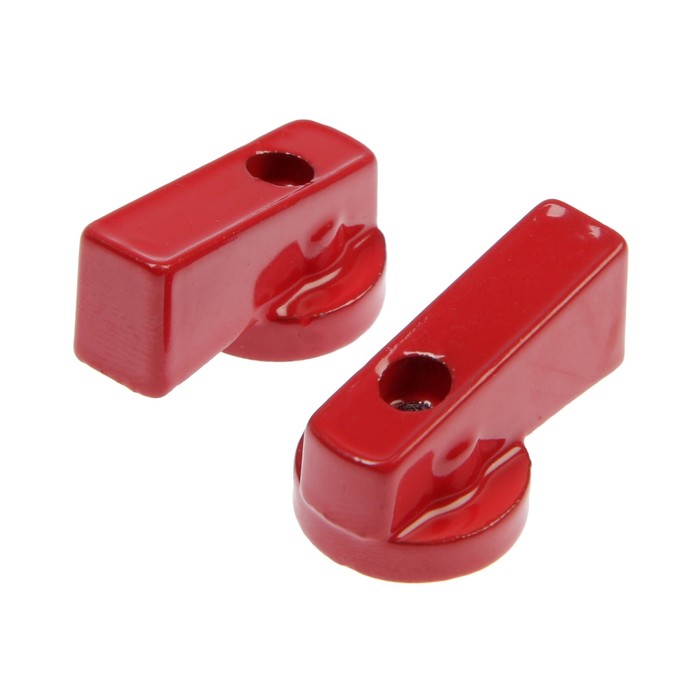

The presence of Teflon saddle rings and an oil lumps of the crane allows you to use a collector in heating systems with an operating temperature of up to +110 ºС. Maintenance of the crane is not required during operation (the average resource of operating time for refusal is 8,000 cycles). The operating temperature of the coolant is up to +110 ° C, pressure - up to 10 bar. The collector with ball valves includes interchangeable blue or red pens, depending on the default installed.
