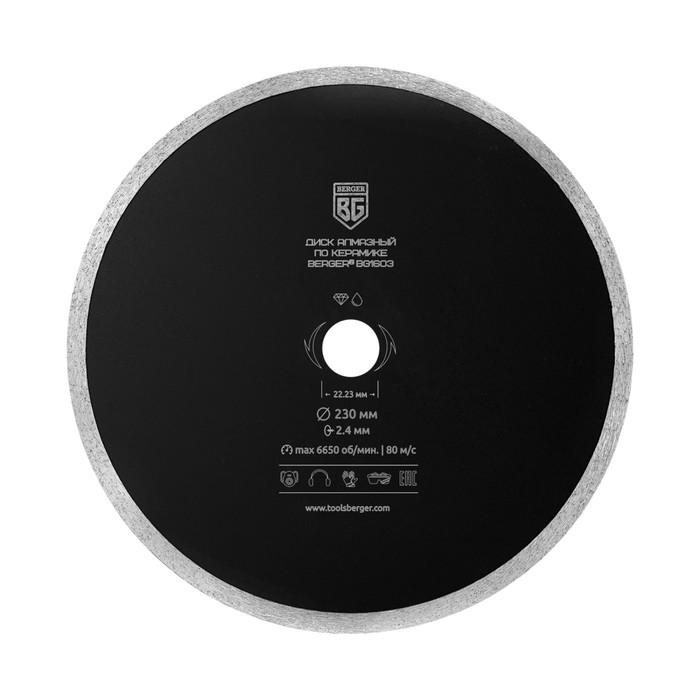

Diamond Disk of Ceramics Berger BG1603, Non -Great, 230 x 2.4 x 22.23 mm

Diameter: 230 mm

Disk thickness: 2.4 mm

landing: 22.23 mm

Type: non -aggregate (continuous)

Form: 1a1r

disk housing: 65mn

cutting edge: melt with technical diamonds with granularity 60/50, concentration of 12-15%

the height of the diamond layer : 7 mm

Only wet cutting

only a direct cut

max. Rotation speed: 6650 rpm

Maximum depth of the cut: 6 cm

The total resource of the cut: 8.4 m2 of the area of ​​the cut

The total length of the cut (active cut): 420 meters

high-quality detachment of a professional level with an increased to 50% concentration of diamond powder with a grain of 60/50 in a working layer with a concentration of 12-15%

is used for cutting tiles, ceramics, ceramics, ceramics porcelain, sandstone, marble, travertine and other building materials similar with mandatory water cooling

are used on the Ushm

precise balancing of the disk housing and a specially selected metal ligament of the continuous diamond -bearing layer, they provide a neatly, neatly, they provide a neat Pure cut without beating and chips

the disk is made by hot sintering, which provides high ( +20%) cutting speed and increased to +40% working resource
