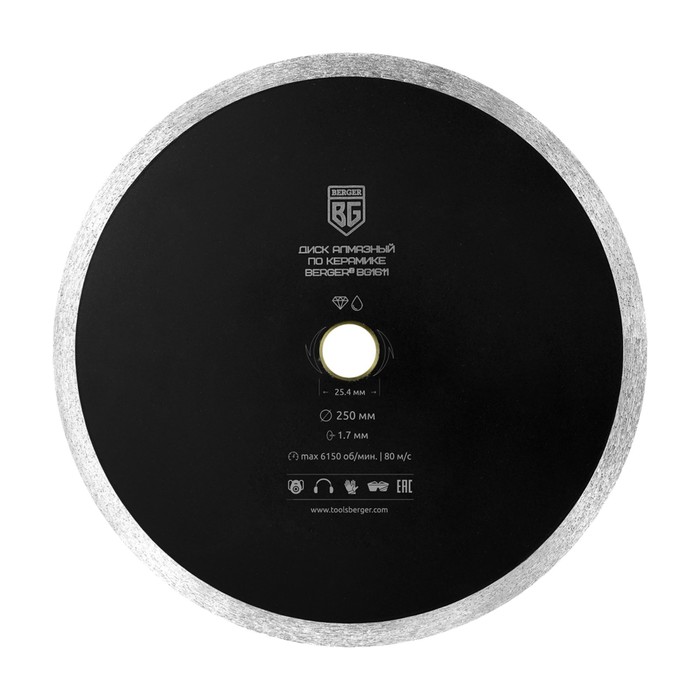

Diamond Disk of Ceramics Berger BG1611, 250 x 1.8x25.4 mm + adapter 22.23 mm

Diameter: 250 mm

Disk thickness: 1.8 mm

landing: 25.4 mm + transition ring at 22.23 mm

type: non -aggregate (continuous) < /p>

Form: 1a1r

disk case: 65mn

cutting edge: melt with technical diamonds of granularity 80/60, concentration of 12-15%

The height of the diamond layer: 10 mm

Only wet cutting

only a direct cut

max. Rotation speed: 6150 rpm

Maximum depth of the cut: 7 cm

The total resource of the cut: 11 m2 of the area of ​​the cut

The total length of the cut (active cut): 600 meters

high-quality detachment of a professional level with an increased to 50% concentration of diamond powder with a grain of 80/60 in a working layer with a concentration of 12-15%

is used for cutting tiles, ceramics, ceramics, ceramics. porcelain, sandstone, marble, travertine and other building materials similar with mandatory water cooling

are used on electric stoves and ushm

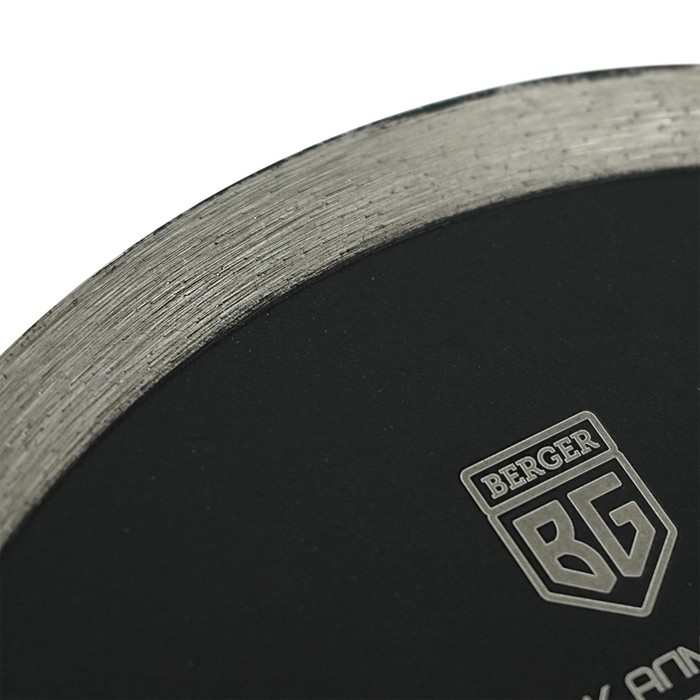

accurate balancing of the disk housing and a specially selected metal ligament of the continuous diamondens A neat, pure cut without beating and chips

the disk is made by hot sintering, which provides high ( +20%) cutting speed and increased to +40% working resource
