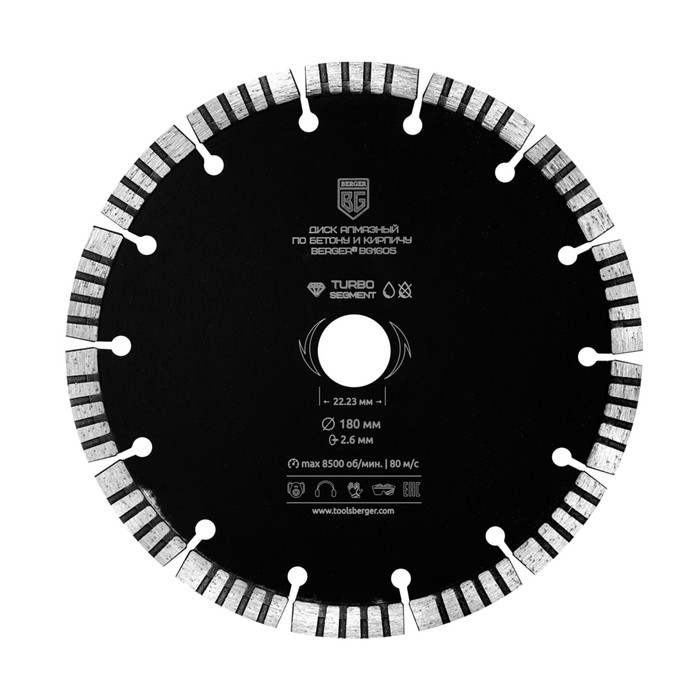

Diamond Distine Cremel and Brick Berger BG1605, 180 x 2.6 x 22.23 mm

Diameter: 180 mm

Disk thickness: 2.6 mm

landing: 22.23 mm

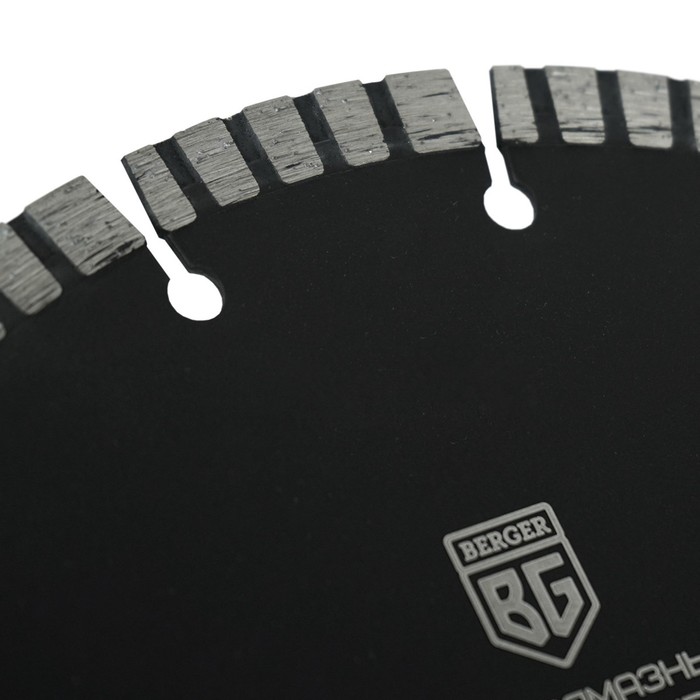

Type: Turbo-segmented

form : 1A1RSS + 1A1R-TURBO

disk case: 65MN

cutting edge: melt with technical diamonds of grain 50/40, concentration of 15-18%

The height of the diamond layer: 10 mm

Dry and wet cutting

only a straight cut

max. Rotation speed: 8500 rpm

Maximum depth of the cut: 5 cm

The total resource of the cut: 9 m2 of the area of ​​the cut

the total length of the sawnut (active cut): 455 meters

high-quality detachment of a professional level with an increased to 50% concentration of diamond powder 50/40 in a working layer with a concentration of 15-18%

is used for rapid rude cutting of high-strength concrete, brickwork, granite and paving slabs, borders and other similar building materials without compulsory water cooling

is used on the Ushm

accurate balancing of the disk case and a specially selected metal ligament of the continuous diamond layer provide a neatly , pure cut without beating and chips

The segment form and a special profile of the cutting edge of the “turbo” type increases to +30% cutting speed and contributes to a more efficient removal of the developed material, preventing the disk overheating and halving its working resource < /p>
