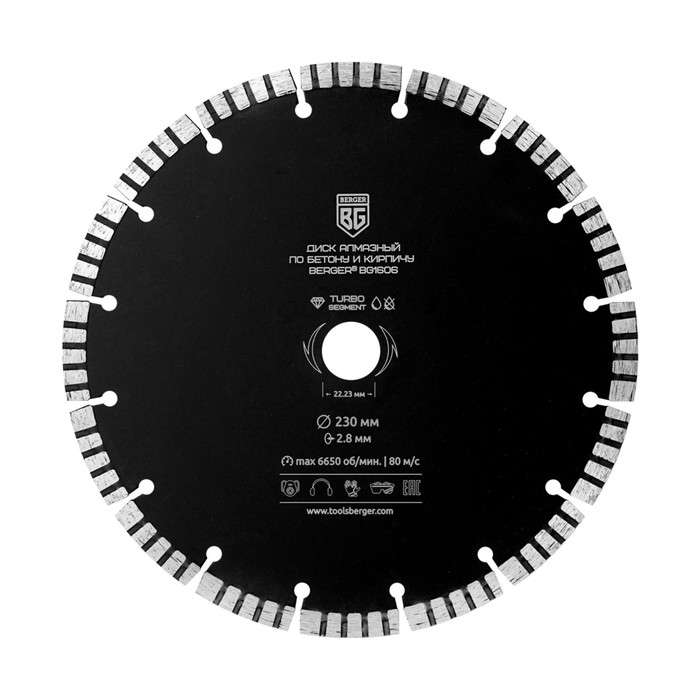

Diamond Diston of Club and Brick Berger BG1606, turbo-segmented, 230 x 2.8 x 22.23

Diameter: 230 mm

Disk thickness: 2.8 mm

landing: 22.23 mm

Type: Turbo-segmented

form : 1A1RSS + 1A1R-TURBO

disk case: 65MN

cutting edge: melt with technical diamonds of grain 50/40, concentration of 15-18%

The height of the diamond layer: 10 mm

Dry and wet cutting

only a straight cut

max. Rotation speed: 6650 rpm

Maximum cut depth: 6 cm

The total cutting resource: 10 m2 of the area of ​​the cut

The total length of the cut (active cut): 640 meters

high-quality detachment of a professional level with an increased to 50% concentration of diamond powder 50/40 in a working layer with a concentration of 15-18%

is used for rapid rude cutting of high-strength concrete, brickwork, granite and paving slabs, borders and other similar building materials without compulsory water cooling

is used on the Ushm

accurate balancing of the disk case and a specially selected metal ligament of the continuous diamond layer provide a neatly , pure cut without beating and chips

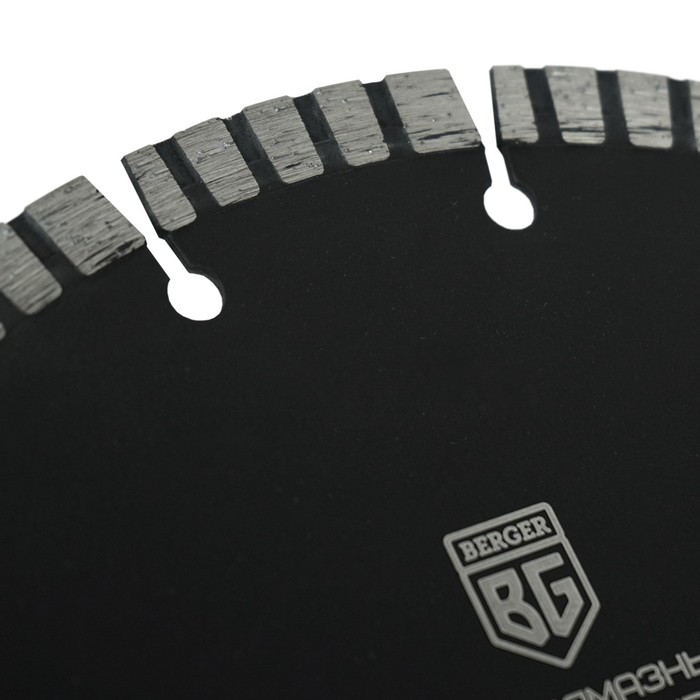

The segment form and a special profile of the cutting edge of the “turbo” type increases to +30% cutting speed and contributes to a more efficient removal of the developed material, preventing the disk overheating and halving its working resource < /p>
