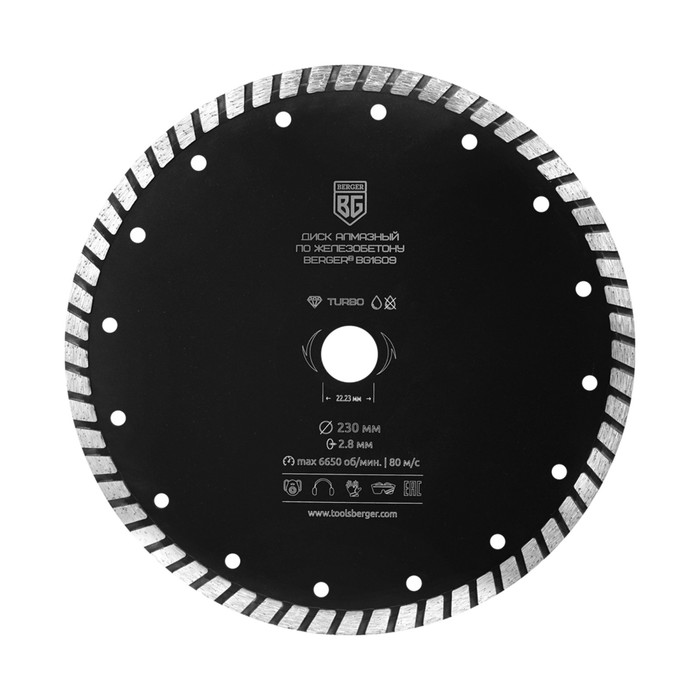

Diamond Diston Silent in reinforced concrete Berger BG1609, type turbo, 230 x 2.8 x 22.23 mm

Diameter: 230 mm

Disk thickness: 2.8 mm

landing: 22.23 mm

Type: Turbo

Form: 1a1r -Turbo

disk housing: 65mn

cutting edge: a melt with technical diamonds of 50/40 granularity, a concentration of 15-18%

the height of the diamond layer: 10 mm

Dry and wet cutting

only a direct cut

max. Rotation speed: 6650 rpm

Maximum cut depth: 6 cm

The total resource of the cut: 12 m2 of the area of ​​the cut

The total length of the cut (active cut): 640 meters

high-quality detachment of a professional level with an increase to 50% an increased diamond powder with a grain of 50/40 in a working layer with a concentration of 15-18%

is used for careful cutting of reinforced concrete, reinforced concrete , construction and border stone, brick, granite and paving slabs, porcelain tiles, marble and other solid building materials without compulsory water cooling

are used on Ushm

accurate balancing of the disk housing and specially selected metallic The ligament of the continuous diamond -bearing layer is provided with a neat, pure cut without beating and chips

a special profile of the “turbo” type of type increases to +40% of the cut rate and helps more efficiently remove the spent material, preventing the disk overheating and extending more than more than half his working resource
