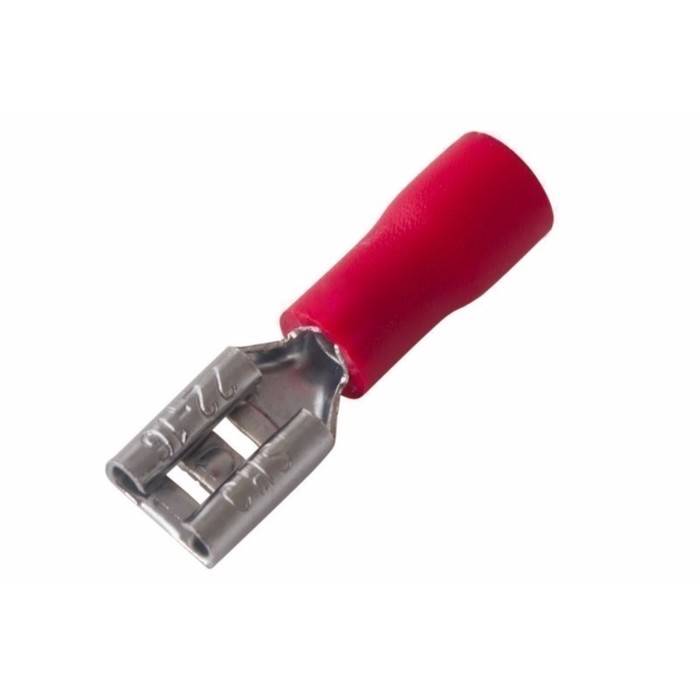

Domestic terminal isolated rexant RPI-M 1.5- (4.8)/RPP 1.25-5, nest 5.6 mm, 0.5-1.5 mm2

PLEARMENTED terminal (CPPs of a nest - 5.6 mm) 0.5-1.5 mm² Rexant is designed to create a high -quality connection of electrical equipment or connection of wires with each other, which, if necessary, can be disconnected without unnecessary efforts. Such a terminal is used to end the multi-core copper wires when installing mobile electrical contact connections on a rolling stock (car, car, airplane, airplane and shipbuilding). ) and protective insulator. The metal connector is made of brass, with superficial electrolytic poking, and the terminal insulator is made of polyvinyl chloride (PVC), which reliably protects the place of squeezing the cable. The squeezing is carried out by special press rooms on top of the protective insulator. Each terminal has a latch for a more durable mechanical connection with a plug. The color of the insulator is red.

The main characteristics:

• The section of the used wire in the range: 0.5-1.5 mm²
• The operating width of the plug: B = 5.6 mm < /li>
• The maximum permissible value of the transmitted current force: 10 a
• temperature range: -10...+75 ℃

the use of isolated flat terminas makes it possible Significantly accelerate electrical work, while the possibility of repeated disconnection and accession of wires.
