DVR ARTWAY AV-601, two cameras, 4.3 "TFT, review 120 °/90 °, 1440x1080 HD

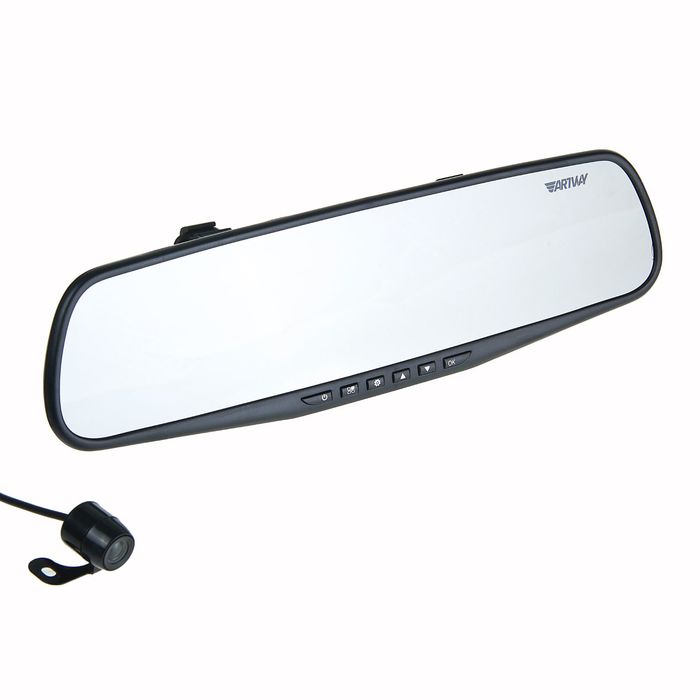

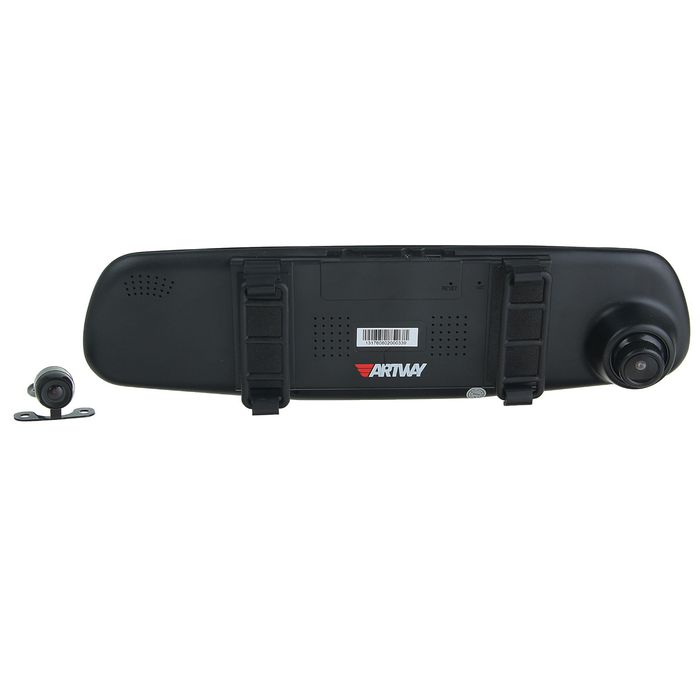

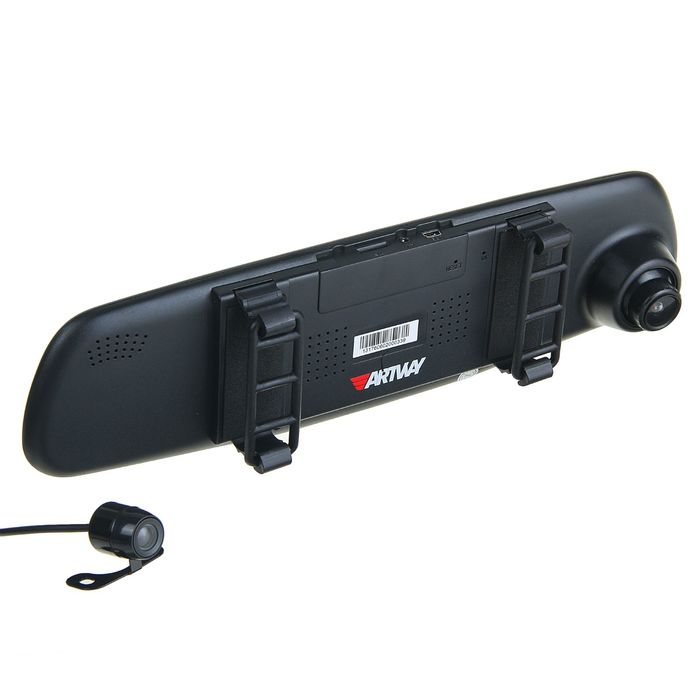

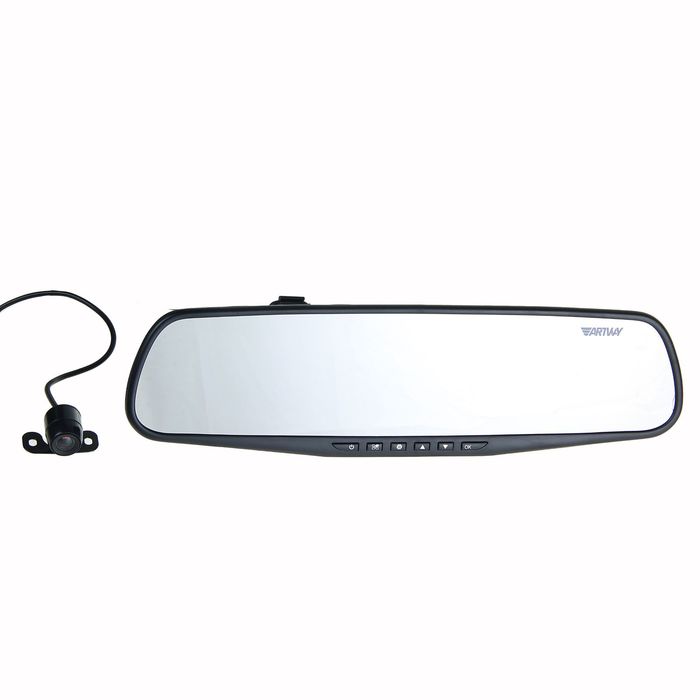

artway AV-601-Automobile DVR and rear-view mirror. It is installed on a standard internal (salon) mirror of the car using special mounts. The DVR provides several additional advantages. The video recorder built into the mirror is practically not noticeable from the outside, which significantly reduces the likelihood of its theft, as well as damage to the car during an attempt by an attacker to get inside. Thanks to this, there is no need to remove the device every time the driver leaves the interior. Unlike the registration devices placed in a separate case, this model does not worsen the view. The display of the DVR of 3.5 inches is located right behind the mirror and after setting up the lens position for the optimal review can be disconnected.

Thanks to its invisibility, this model of the DVR can be used not only during the movement of the car, but also in the parking lot. In case of damage to the car during the absence of a driver next to him, he will establish the culprit of the accident and fix the date and time of the incident (displayed on the video). The built -in traffic sensor will ensure the inclusion of the record only at the time of potential danger, thereby saving the battery charge and the place on the memory card, the maximum volume of which can reach 32 GB.

characteristics

• The number of cameras: 2
• The main camera is built -in, 1 pc. Waterproof
• cyclic mode: is (1 min, 2 min, 5 min, OFF)

Camera 1, shooting parameters:

• Lens Linz Material: Glass
• Resolution of the matrix (MPIC.) - Video1.3 MP
• Resolution of the matrix (MPIC.) - photo 5 megapixels
• Type of matrix: CCD/CMOS (1/4)
• The maximum video resolution: Full HD (1440*1080)
• Number of personnel per second: 30
• The lens viewing angle, GR: 120

Possibility of shooting photos/resolution photos, MPIC.

• 5m 2560*1920
• 3m 2048*1536
• 2m 1600*1200
• 1m 1280*960

• type of recording: cyclic with the ability to configure temporary segments
• formats video recording: avi
• video codec: m-jpeg
• diagonal of the screen ( ") 3.5
• Spending mode (Screen Saver): 1, 3, 5 min, Off

Support for memory cards

• The maximum supported volume of cards: 32 GB
• Support for memory cards: Micro sd card
• Recommended Memory card class: 10
• SOS button: There is
• Auto -Start Records: there is
• built -in microphone (sound recording): there is
• shutdown time (auto power off (shutdown time)): 1, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 5 min, Off
• Camera turn: there is
• body material: plastic
• operating temperature: -10 ° C ~ 70 ° C
• Input operating voltage of the DVR: 5v
• Input Parametes: Vidio register current: 1a
• Connect the second chamber through: AV
• Frequency: 50/60Hz

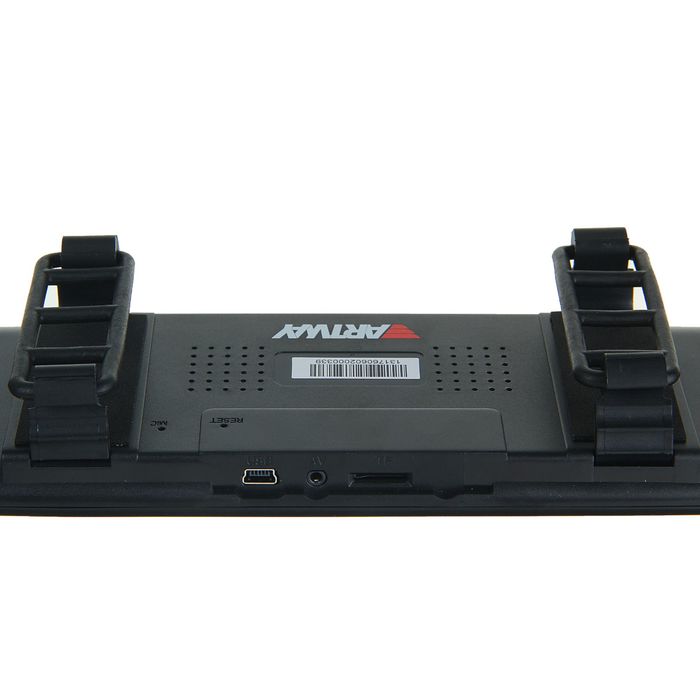

• output interface: miniusb; AV;
• dimensions (ShHHHV) 350x85x15 mm
• capacity of the accumulator: 180 mAh

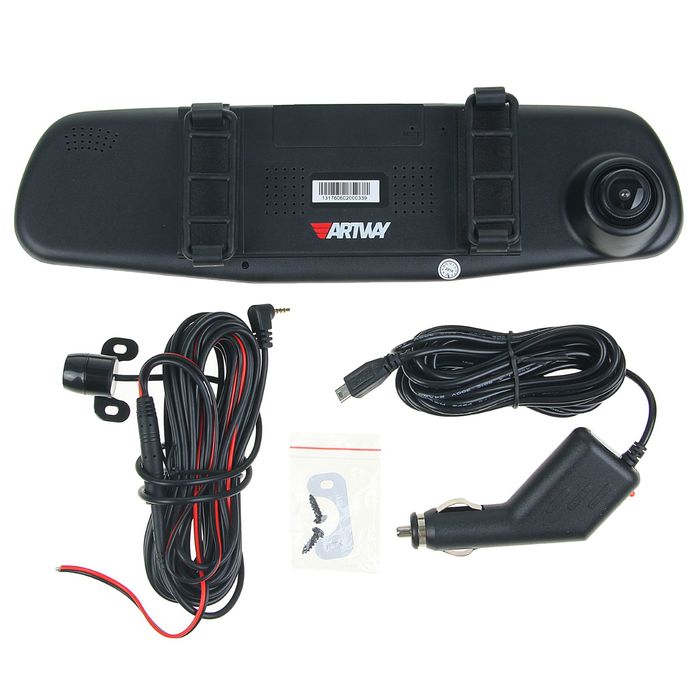

charger device

• Input parameters: voltage12v
• Input parameters: current force1a
• type of connector: miniusb

Camera 2 A shooting parameters: CCD /Cmos (1/6.5)

• Lens Lens: Plastic
• The number of lenses: 6
• Video quality: VGA (720x480)
• video resolution: 720x480
• number of personnel per sec: 25
• Available shooting modes: VGA (720x480)
• The angle of review of the lens, GR: 90
• type of recording: by segments (cyclic)
• formats video recording: avi
• video codec: m-jpeg
• ability to connect as a parking camera: there is
