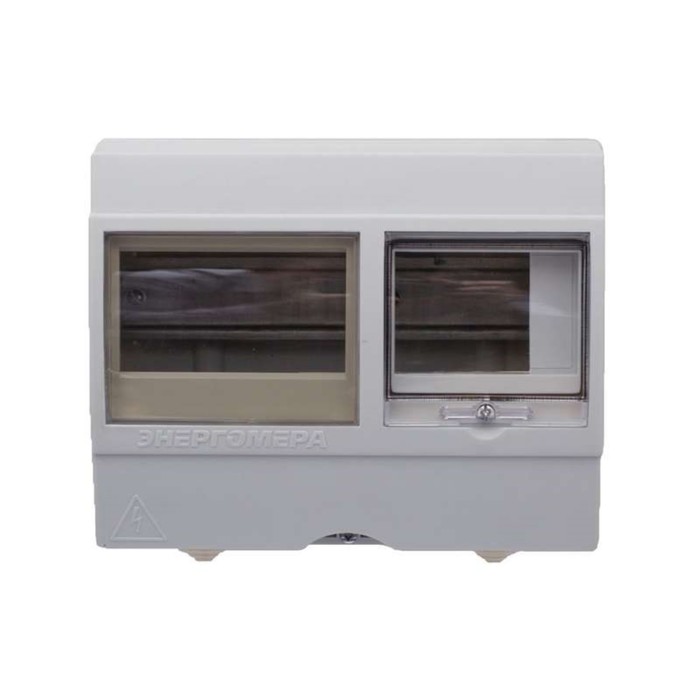

Energomer case 106001004009605

The houses of the KSh6 Energomer series are designed for the manufacture of apartment introductory shields of the outer and internal installation, by embedding electrical equipment (electric energy meters, automatic circuit breakers, protective shutdown (RCD), etc.).

Design features

- the case at the place of installation and the material of manufacture has two climatic executions - U1 and U2.

- the housings provide protection of the equipment established in it from adverse effects of external factors.

- the presence of transparent windows of the accounting and hardware compartments with a place for sealing and sealing screws.

- the casing of the case has a filling place in the lower part.

- Salnic inputs located at the bottom of the case provide the input (withdrawal) of power lines and additional protection of electrical equipment.

- the hull is mounted to the wall in 4 places through holes with a diameter of 6 mm without dismantling the devices.

- the housing provides for the installation of re -execution or installation meters to the surface.

- the window in the housing has broken down plugs for installing devices

- the housings are designed for installation:

1. KShN6R-1 of a single-phase counter in the R5 case with the ability to install not more than 4 single-pole circuit breakers;

2. KShn6Sh-3 of a single-phase counter in the S4, S6, S7 case with the possibility of installing not more than 4 single-pole circuit breakers;

3. KSh6P-2 of a three-phase counter in the R31 case with the ability to install not more than 6 single-pole circuit breakers.

- The cases have the degree of protection IP 54 according to GOST 14254-2015:

1. With a closed door on the front side - not lower than IP54;

2. With an open door or its absence - IP20.
