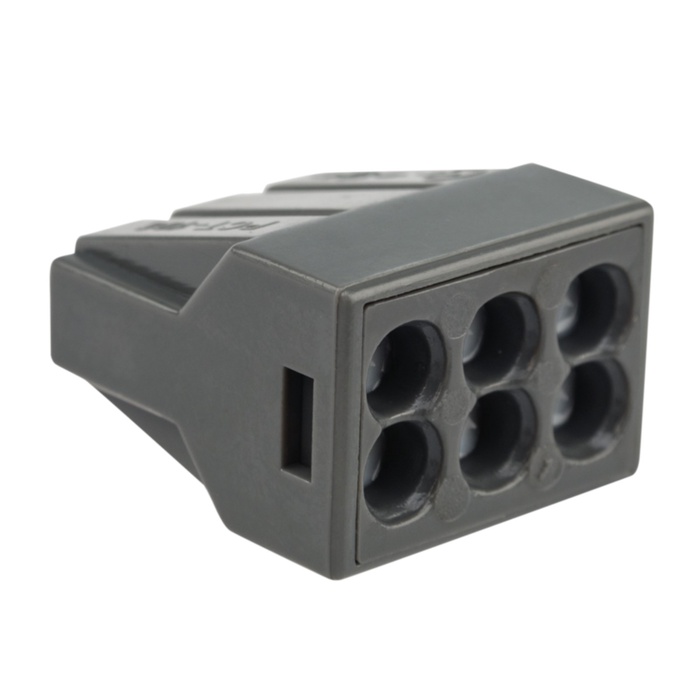

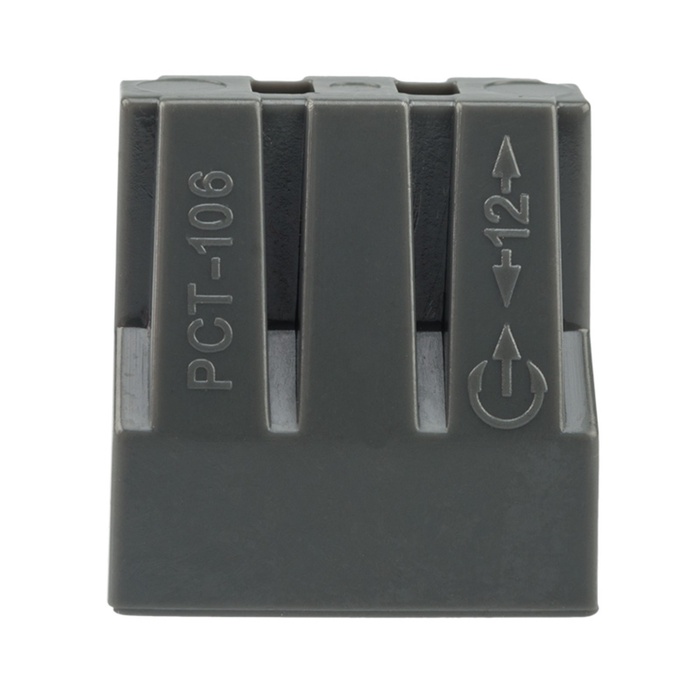

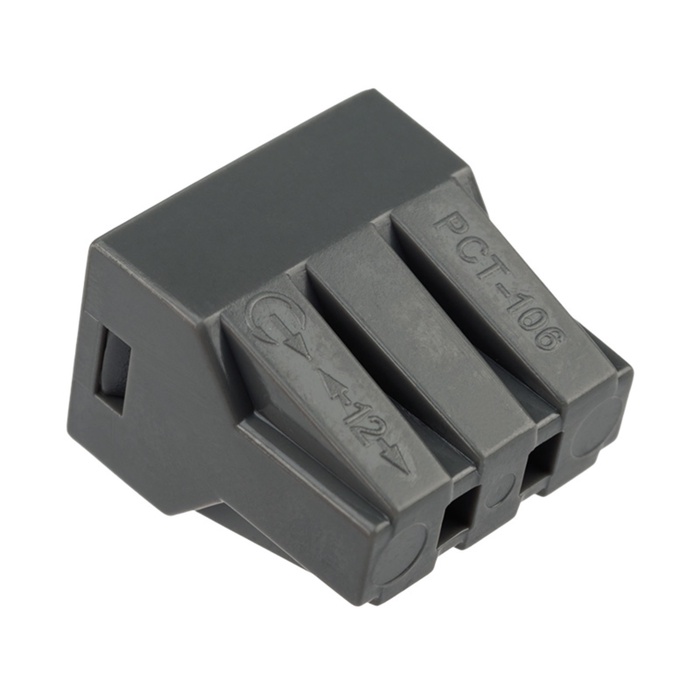

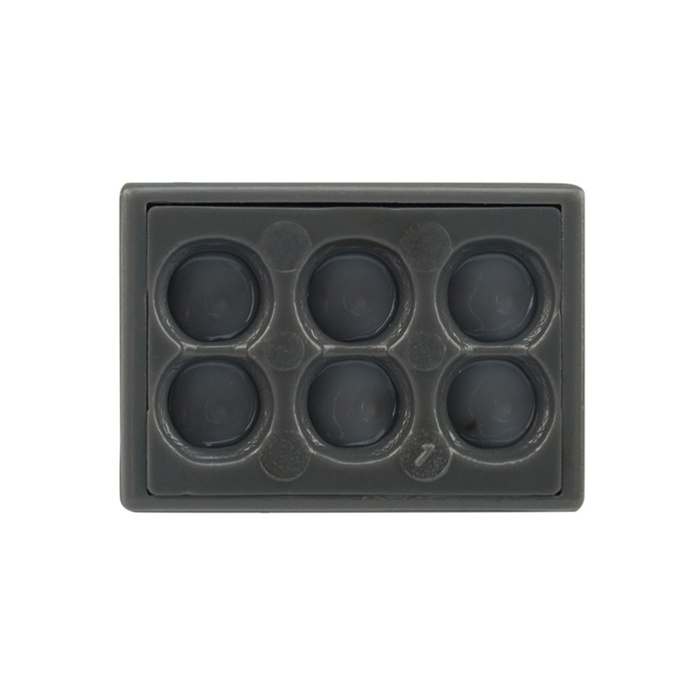

Express Klem with Paste QMS 773-306, 6-wire up to 2.5 mm², gray (50 pcs/° C) rexant

Electric power plants will allow you to easily, and most importantly safely and instantly, connect 6 wires among themselves (aluminum and copper single-core).

It is enough just insert the cable or wires into the terminal and self-loading contact reliably The connection will record.

the diameter of the connected wires should be in a section from 0.2 to 2.5 mm². Before installation from the connected conductors, it is necessary to remove the isolation in accordance with the designations on the terminal body (9-12 mm). The cleaned area on the mounting side should not have strong bends. Connection is carried out by the method of pushing to the stop to stop the wire cleaned from insulation in the free nest of the terminal. In turn, the terminals are filled with special contact paste, which creates a barrier to get moisture into the connector, and also prevents the oxidation of the conductors. A special technological hole on the back of the terminal is designed to check the connection by the tester-industrialist or probe of the multimeter. The black plastic shell in conjunction with insulating paste inside makes contact isolated. If necessary, the dismantling is carried out by pulling the conductor from the nest while swaying the wire.
