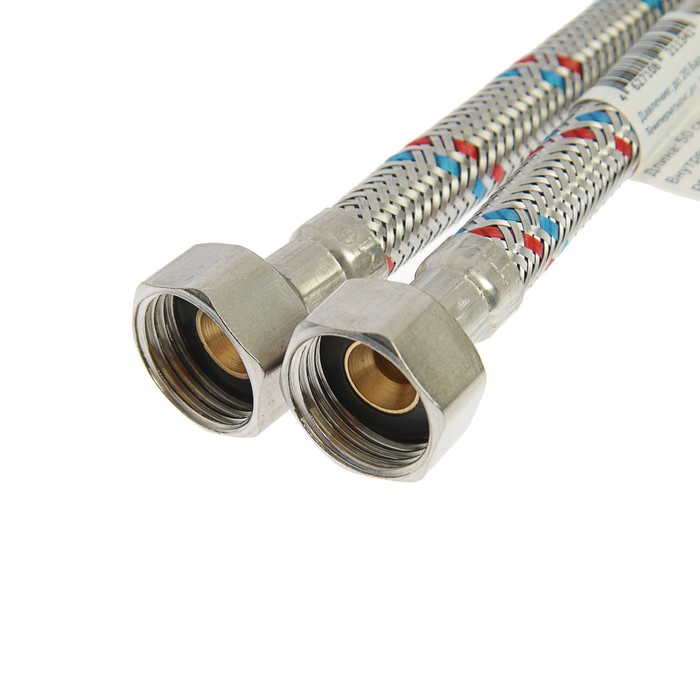

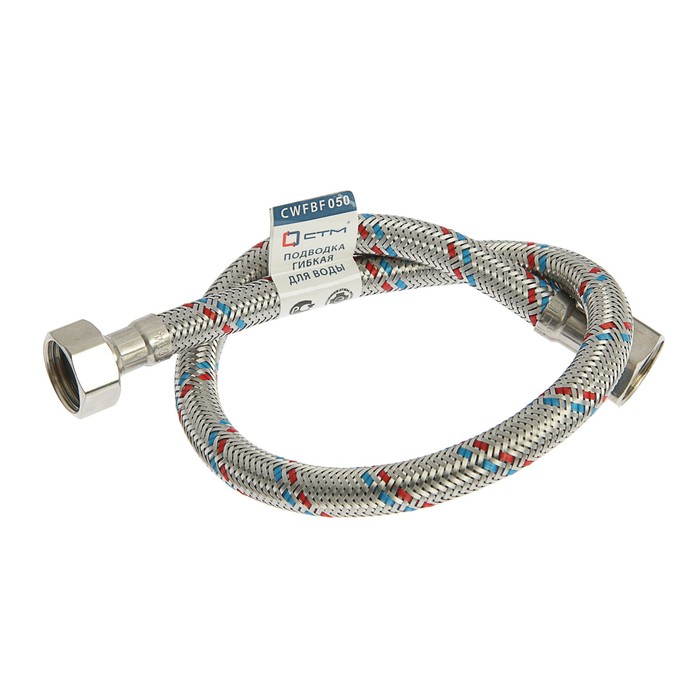

Flexible eyeliner "STM", nut-gayka, 50 cm
Water eyeliner with internal threads is designed to join the plumbing reinforcement pipelines and plumbing devices (mixers, showers, bidet, washbasins, toilets) and water supply to domestic units (water heating devices, washing and dishwasher, pumps and dishwashers, and pumping machines and dishwashers. etc.).
The braid of a flexible eyeliner is woven from 7 stainless steel threads 0.2 mm thick. The internal hose (tube) is made of special non -toxic rubber. The internal diameter of the hose is 8.5 mm ± 0.5 mm. The external diameter of the hose is 12.5 mm ± 0.5 mm.
When installing a flexible eyeliner, the end reinforcement must be tightened with a force of not more than 4 n ∙ m. The service life is 10 years.
| Characteristics | |
| A country | China |
| Color | Silver |
| Connection diameter | 1/2" |
| External diameter, mm | 12.5 |
| Inner diameter, mm | 8.5 |
| Length, see | 50 |
| Max. The moment of tightening of the end reinforcement, n/m | 0.4 |
| Nominal stream, l/min | 35 |
| Operating temperature, C ° | +75 ° C. |
| Radius of curvature, mm | 60 |
| Type of connection | With internal/internal thread |
| Working pressure, bar | 15 |
