Freak-tick Diamond passage end Berger BG1941, double segment, 180 x 22.23 x 5 mm

Cup-Frez Diamond Two-row-row

diameter 180 mm

planting diameter: 22.23 mm

Stamped base

Material of the cup body material -Frozes - steel 45x,

material of diamond segments - melt with technical diamonds

the height of the diamond segment: 5 mm

maximum speed: 7900 rpm (80 m/s)

TS 010/2011, DIN EN 13236: 2011

High-quality cup-Freza end-level a professional level with

increased more than 25% concentration synthetic diamonds with a size of 400/500 μm in the working layer

designed to remove paint, cleaning, alignment and grinding of brick, concrete, marble, granite, stone and other building materials without forced liquid cooling

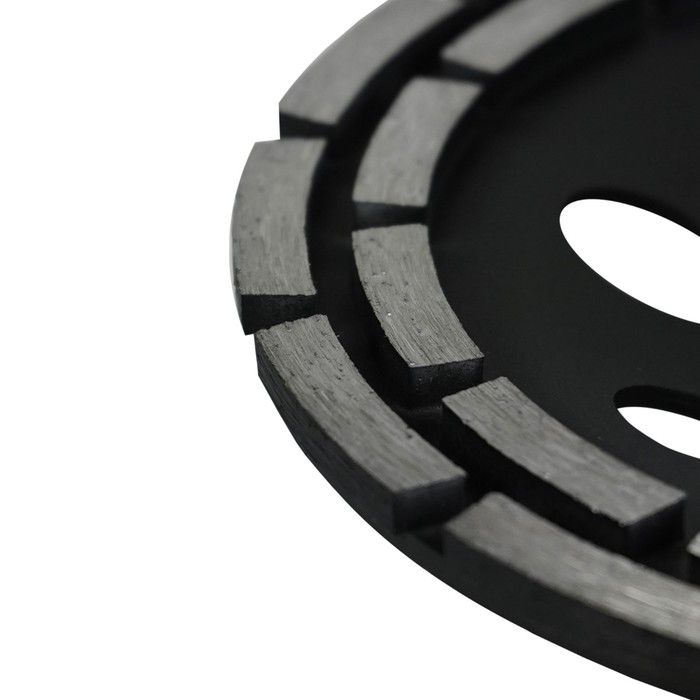

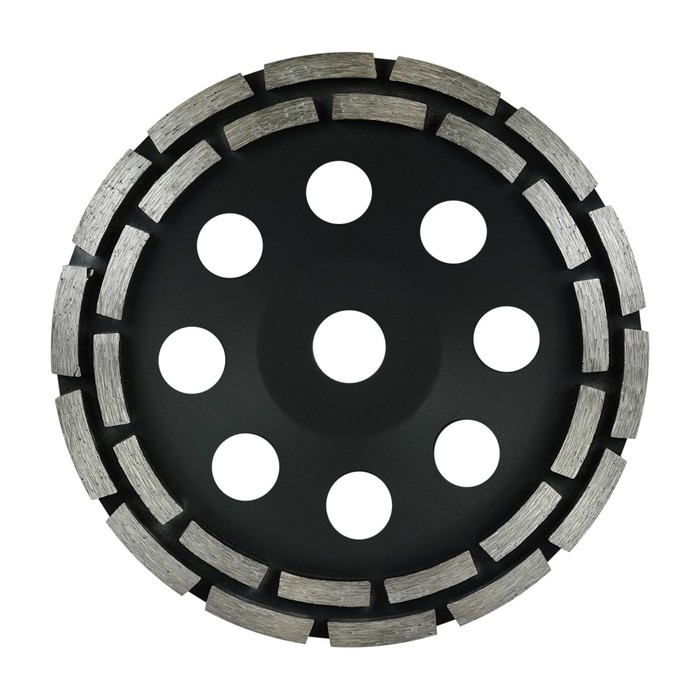

Two rows of diamond segments provide high-quality, uniform and 40% faster cleaning of the large area of ​​the processed material

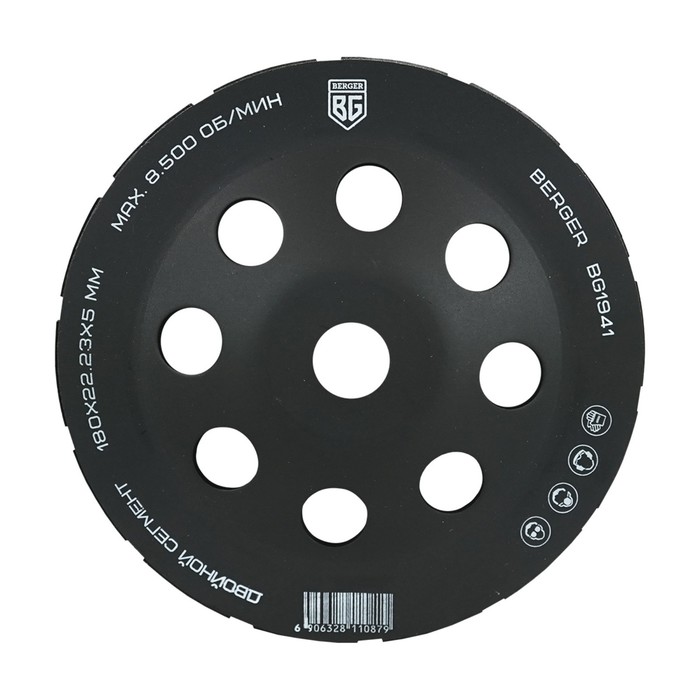

of the cup-puff body is made of high-strength alloy carbon steel 45x, carefully extended and has holes for natural cooling and the removal of sludge during operation

the height of diamond segments of increased firmness of 5 mm provides an increase in the working resource of a cup-frase cup to 700 square meters of area and more
