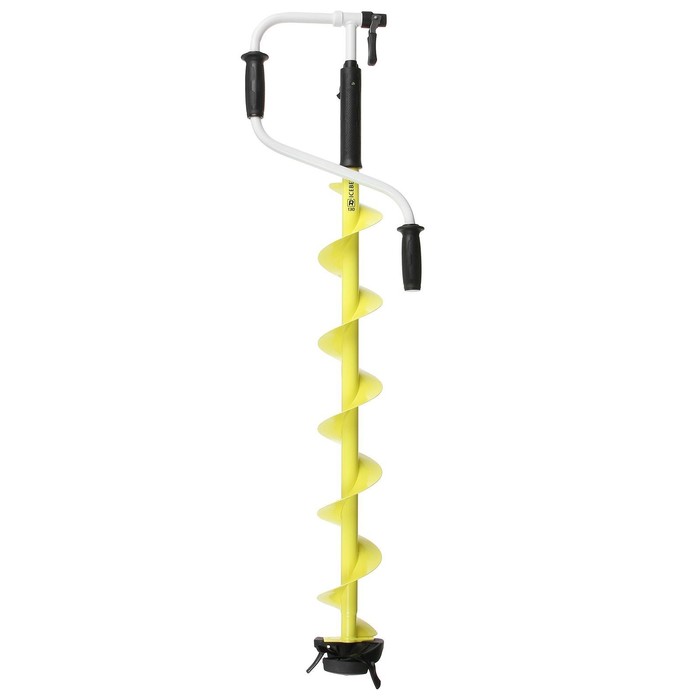

Ice Bonar Iceberg-Euro 130r

Iceberg-EURO 130 (R) V3.0 with right rotation perfectly copes with the drilling of dry and wet ice. A new patented mechanism for folding the handle guarantees the absence of backlash, helps with one movement to bring icebour to working condition. This model is made with a reliable whole screw. An increase in the step of the turns to 150 mm provides the rapid release of the hole from the shoga, reduces the effort of the fisherman and prevents the junction of the screw. The telescopic insert-approval allows you to adjust the height of the ice discovery under the thickness of the ice and the growth of the fisherman. The maximum drilling without the use of extension cords reaches 1.3 m. For deeper holes, it is possible to increase the depth of drilling by adding an extension cord of the Usha-400 to the screw.

non-slip “warm” handles provide comfort for drilling. The upper and lower handles of the ice discovery are shifted relative to the axis of the screw. This arrangement allows you to rotate the icebow at the same time with two hands. The storm move is smooth, brings without effort. Reliable polymer coating can withstand sharp temperature fluctuations and strong mechanical loads. The cladding of the telescopic part prevents the fruits of the tube in the screw when using a drill in severe frost. A “warm” nozzle for carrying an ice discovery is made on the screw.

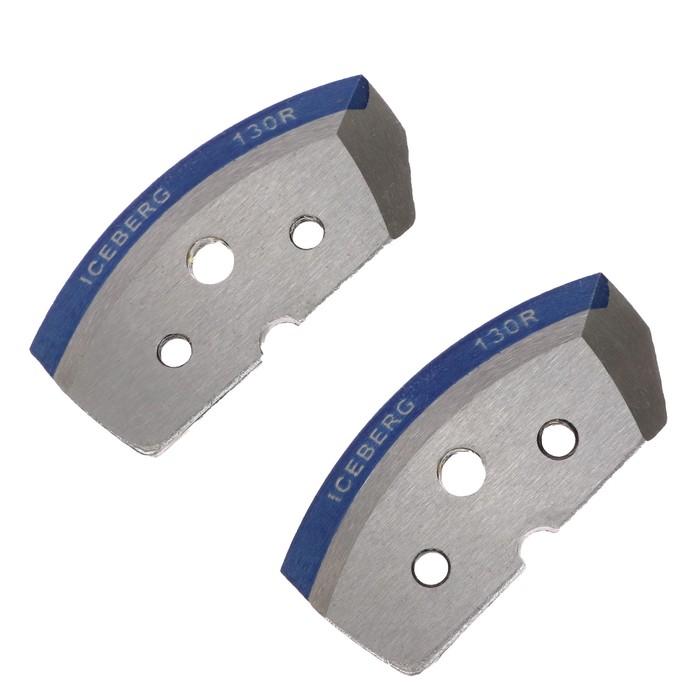

the removable head is made of durable composite material, therefore it withstands heavy loads and guarantees a constant cutting angle to the knives. Radius knives made of high -quality steel are suitable for working with all types of ice, providing light drilling.

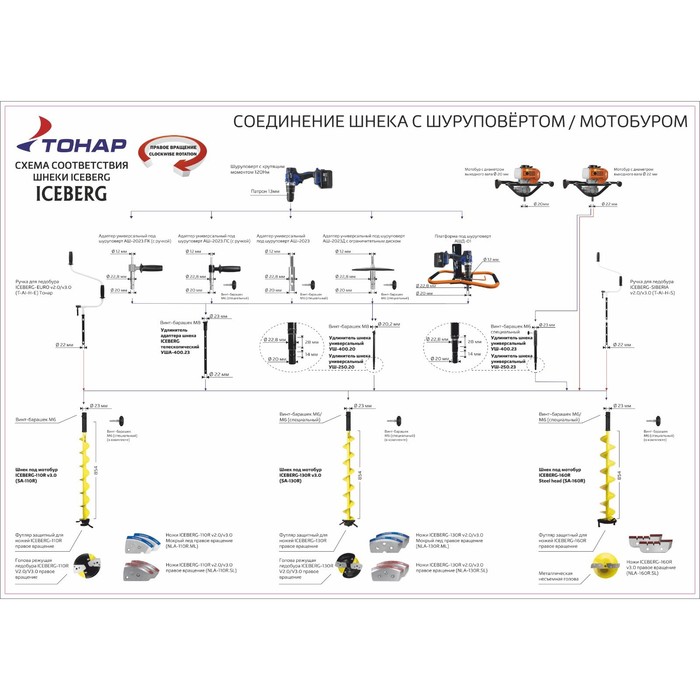

In addition to the extension cord, it is possible to install the electric motor of the left rotation with the adapter and the diameter of the output shaft 22 mm.

when using We recommend using the Iceberg - Euroburg - Euroburs “Iceberg - Euro 130 (L)” knives for wet ice in order to avoid slipping during drilling.

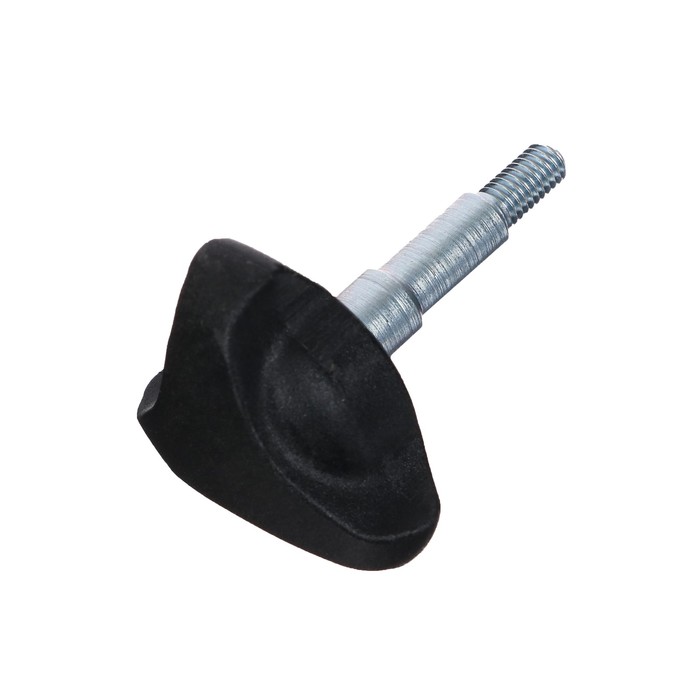

Adapters for screws under screws are carried out using a special step -barbar M6. Both lambs come with the Iceberg v3.0 ice discovery

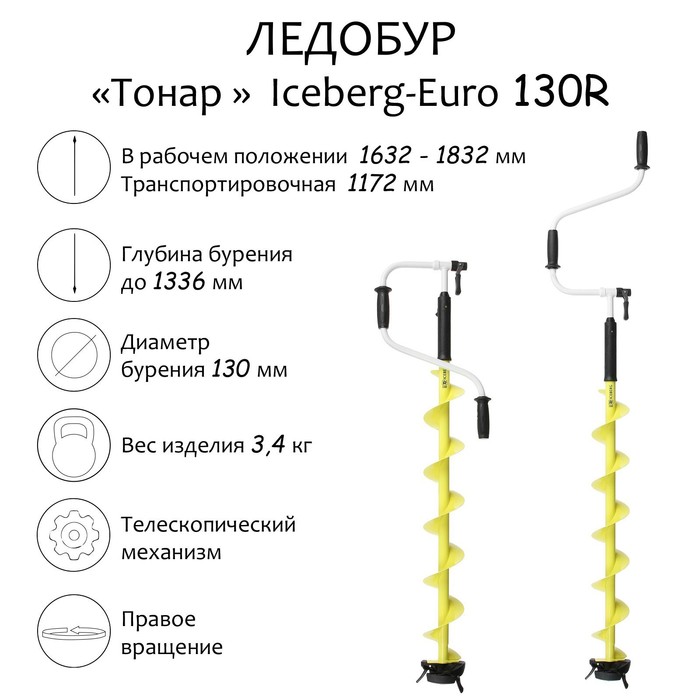

Technical characteristics

• Right rotation.
• Diameter of drilling: 130 ± 5 mm. << /li>
• drilling depth: up to 1336 mm.
• length in the working position: 1632 -1832 mm.
• Shnek length: 853 mm.
• Length in the transport position: 1172 mm.
• screw-barashka (thread parameter): M6. Collection: 1 pc.
• Iceberg knife 130l v2.0: 2 pcs. (installed on the ice drift).
• Iceberg knives 130l v2.0 (wet ice): 1 set.

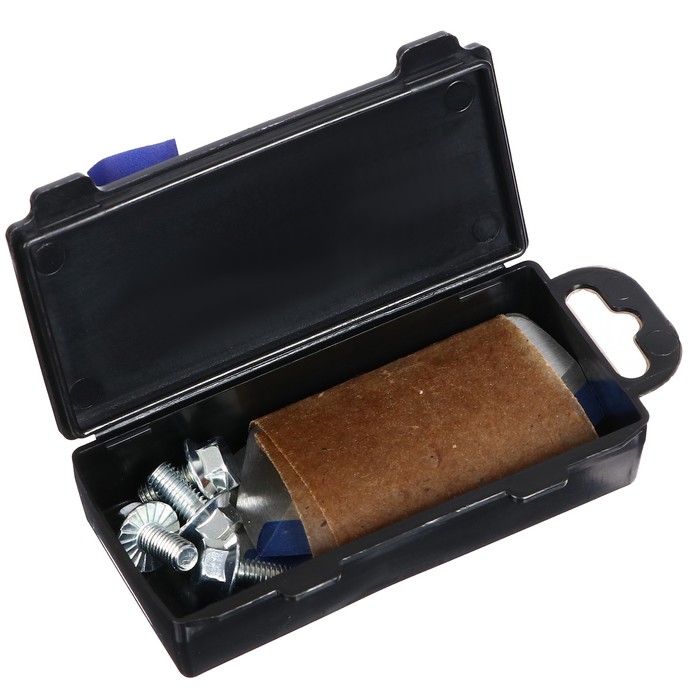

• Protective case: 1 pc. 2 pcs.

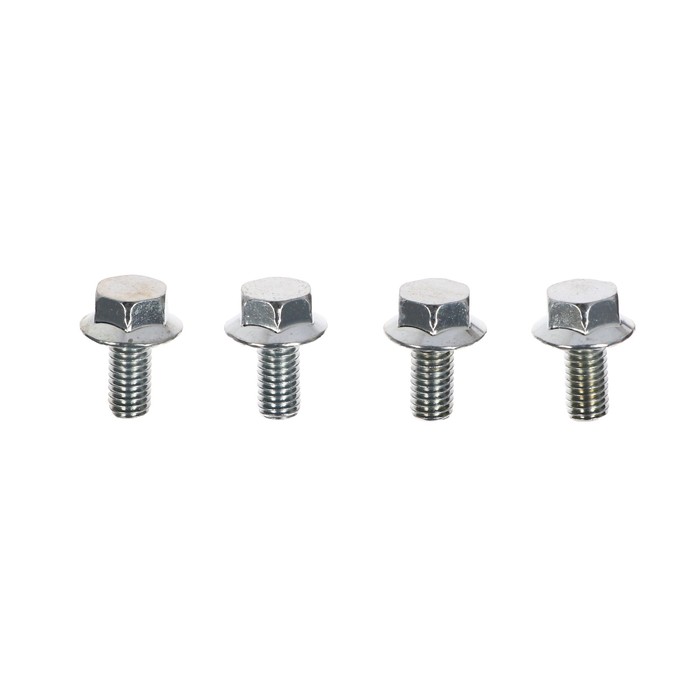

• Bolt M5x10 DIN 6921: 6 pcs. (installed on the ice drift).

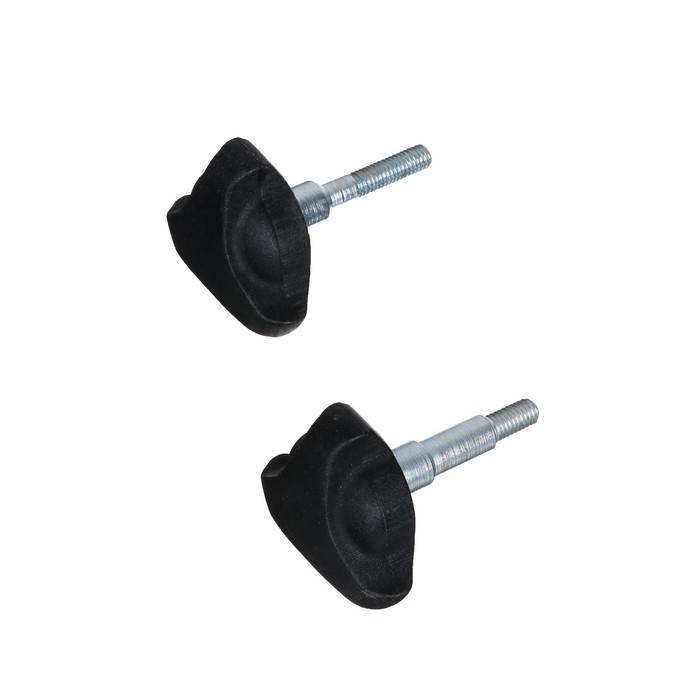

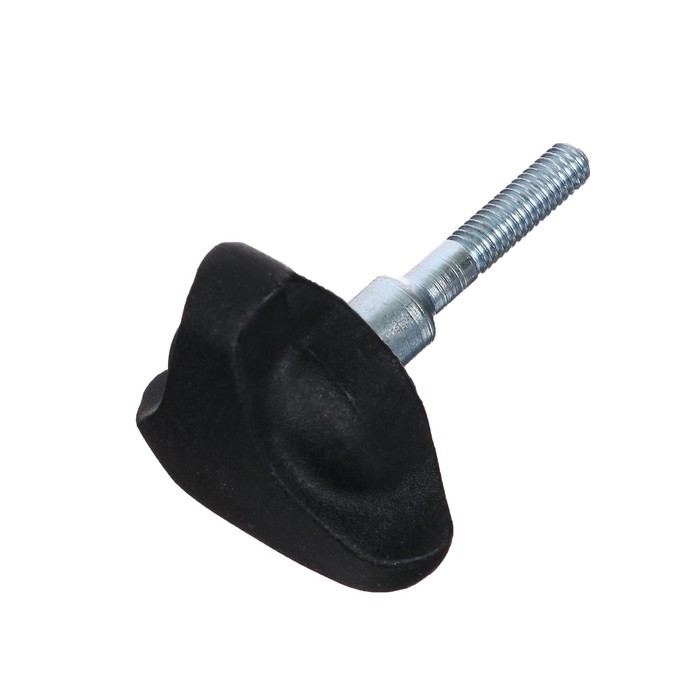

• M6 vint-barashka (special): 1 pc. : 1 pc.
