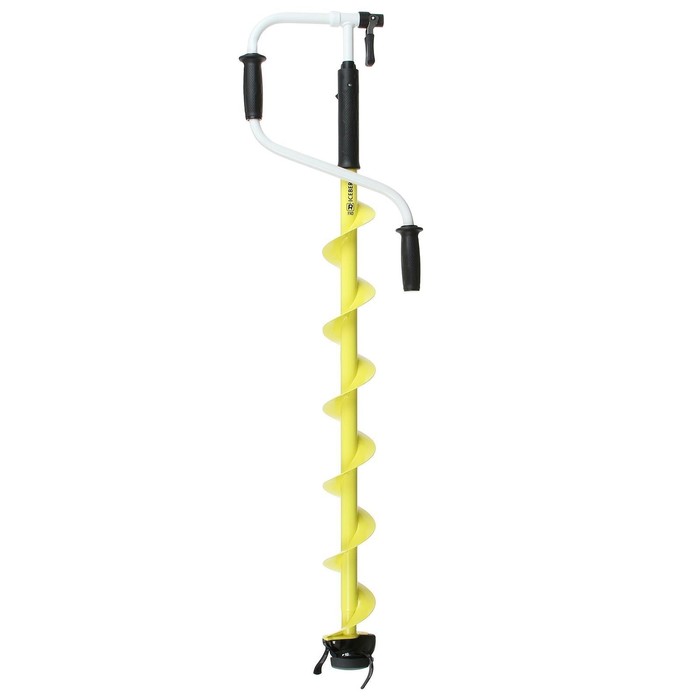

Iceberg-Siberia 110R-1600 V3.0, right rotation

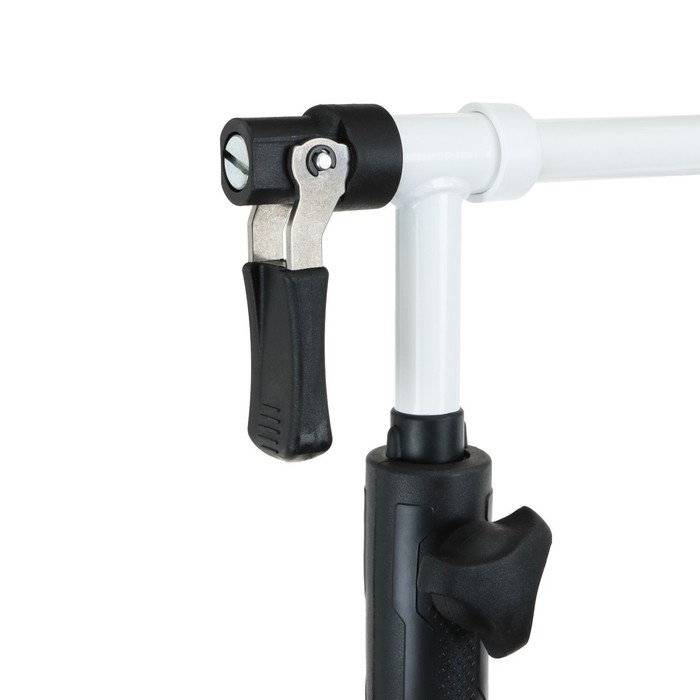

Iceberg -Siberia 110 (R) -1600 V3.0 with right rotation perfectly copes with drilling dry and wet ice. The new patented mechanism of folding the handle guarantees the absence of backlash and makes the more light and conveniently bringing icevision to working condition. This model is made with a reliable whole screw. An increase in the step of the turns to 150 mm provides the rapid release of the hole from the shoga, reduces the effort of the fisherman and prevents the junction of the screw. The telescopic insert-extensor will allow you to adjust the height of the ice to the thickness of the ice and the growth of the fisherman with the help of fixed extensions, to adjust the height of the ice. It is possible to increase the depth of drilling by adding an extension cord of the ears-400 to the screw.

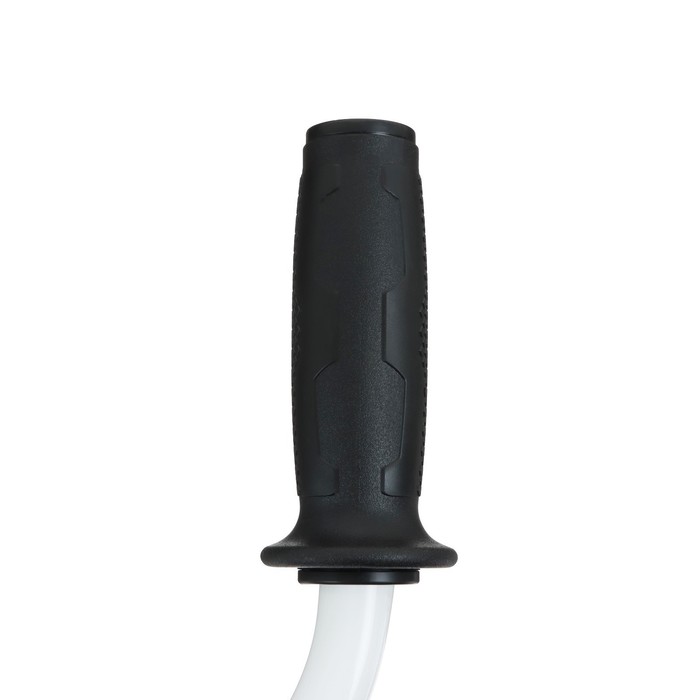

non-slip “warm” handles will provide maximum comfort for drilling. The upper and lower handles of the ice discovery are shifted relative to the axis of the screw. This arrangement of the handles allows you to rotate icebour at the same time with two hands. The storm move is smooth, brings without effort. Reliable polymer coating can withstand sharp temperature fluctuations and strong mechanical loads. A “warm” nozzle for carrying an ice discovery is made on the screw.

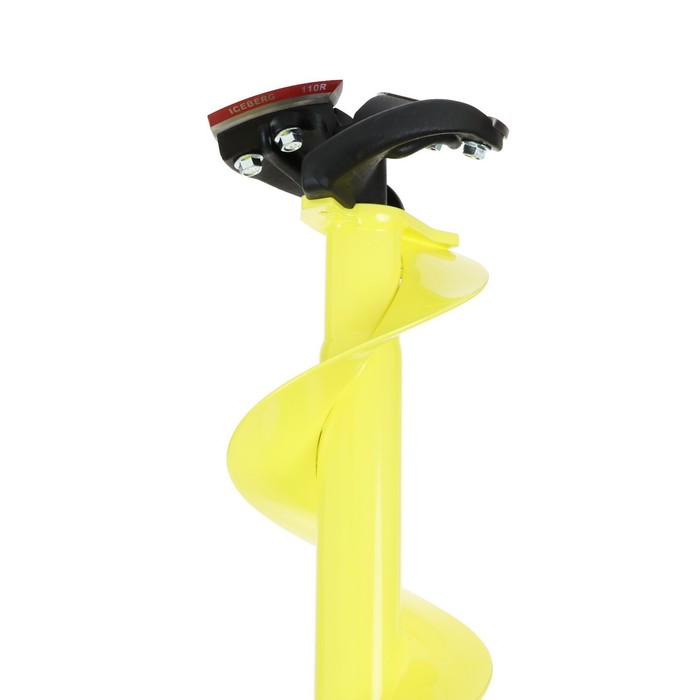

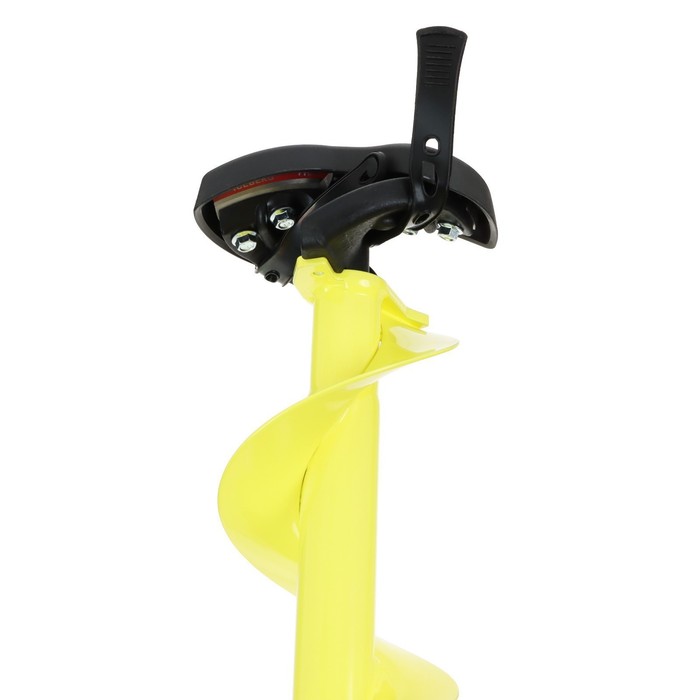

the removable head is made of durable composite material, therefore it withstands heavy loads and guarantees a constant cutting angle to the knives. Radius knives made of high -quality steel are suitable for working with all types of ice, providing light drilling.

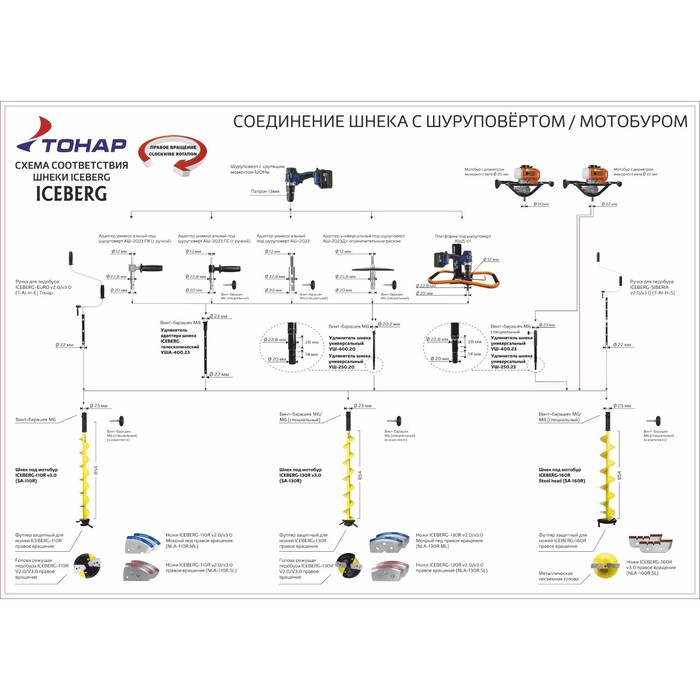

In addition to the extension cord, there is the ability to install a motorcycle with a 22 mm output diameter. It can be fixed both immediately on the screw and through the extension cord of the Usha-400.

when using a screwdriver, a motorbour and a gas station with iceberg-Siberia ice discovery, we recommend that you use knives for wet ice in order to avoid slipping during drilling. < /p>

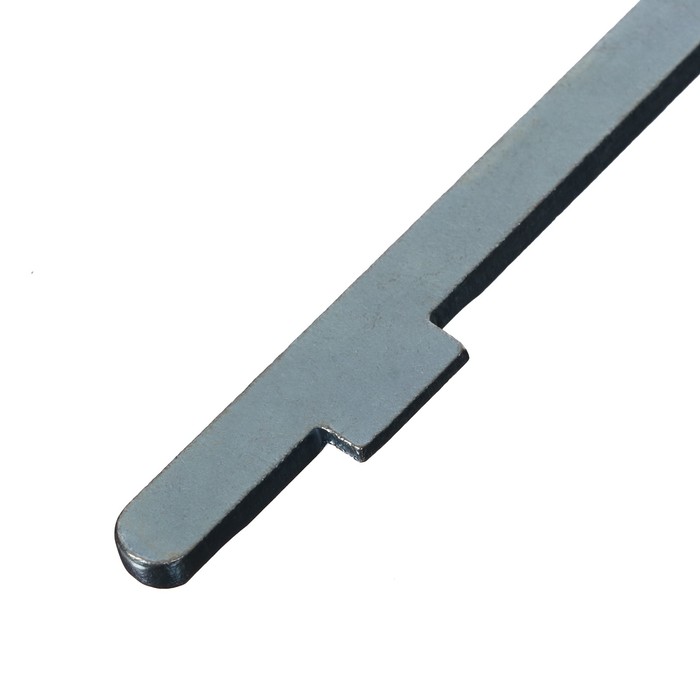

In the node of fixation of the telescopic extension cord, two holes with one universal hole were replaced. To join the adapters to the screwdriver, the product is equipped with a special step-liner m6. Both lambs come with the Iceberg v3.0 ice discovery

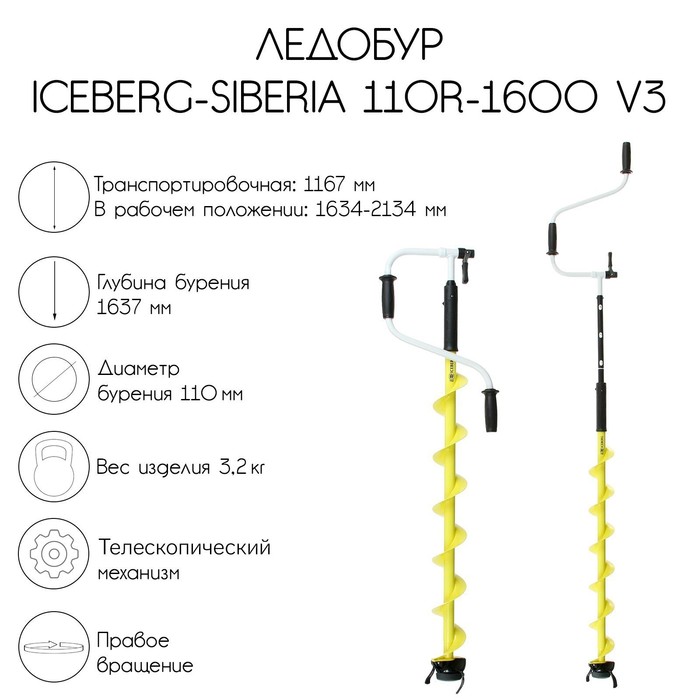

Technical characteristics

• Right rotation.
• Diameter of drilling: 110 ± 5 mm. << /li>
• drilling depth: up to 1637 mm.
• The length in the working position: 1634 - 2134 mm.
• Shnek length: 854 mm.
• Length in the transport position: 1167 mm.
• screw-bar (thread parameter): M6.
• Iceobur weight: 3.2 ± 0.2 kg.

Supply set

• Ice Bour assembled: 1 pc.
• Knife Iceberg 110r V2.0: 2 pcs. (installed on the ice drift).
• Iceberg knives 110r v2.0 (wet ice): 1 set.
• Protective case: 1 pc. 2 pcs.

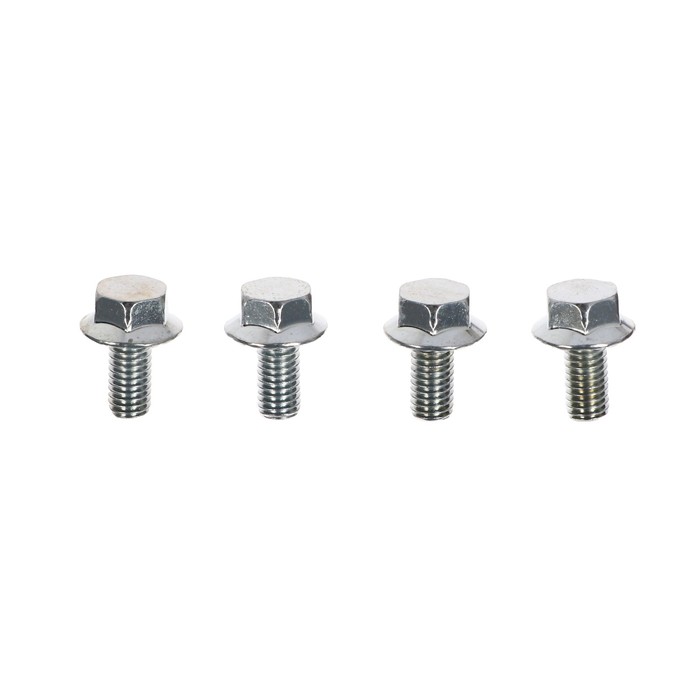

• Bolt M5X10 DIN6921: 6 pcs. (installed on the ice drift).

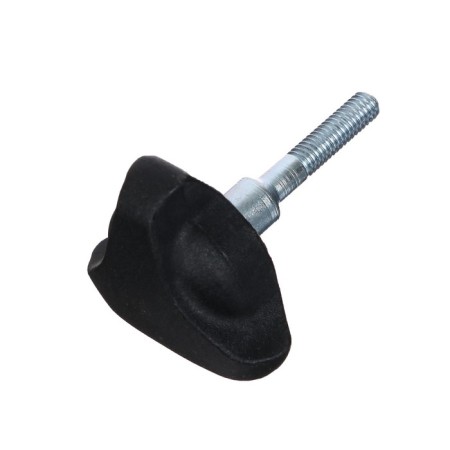

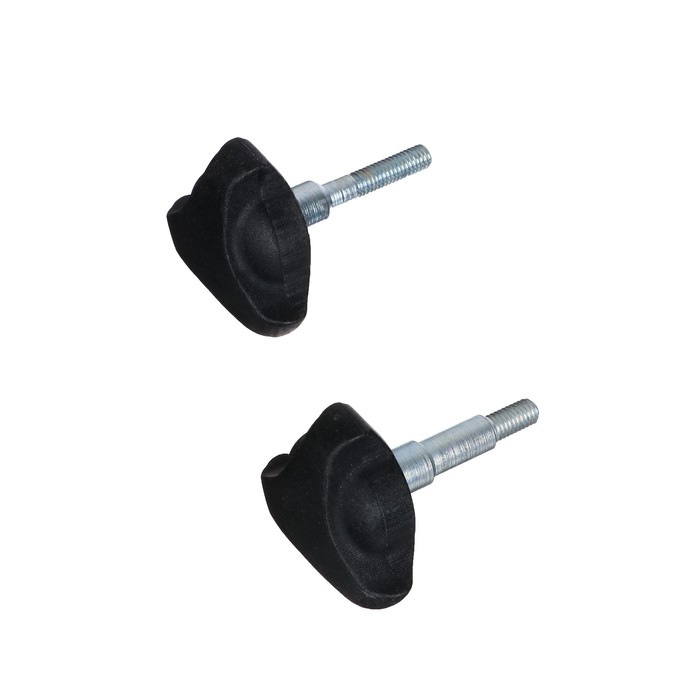

• M6 vint-barashka (special): 1 pc.

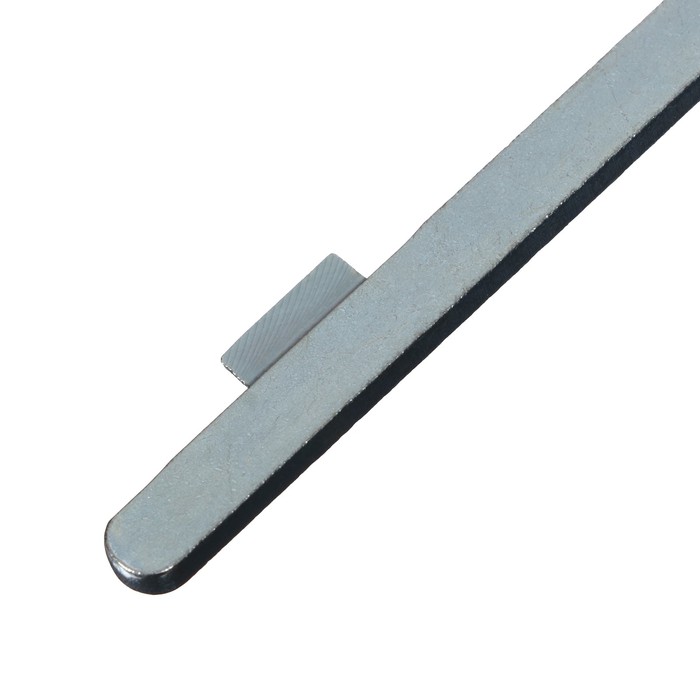

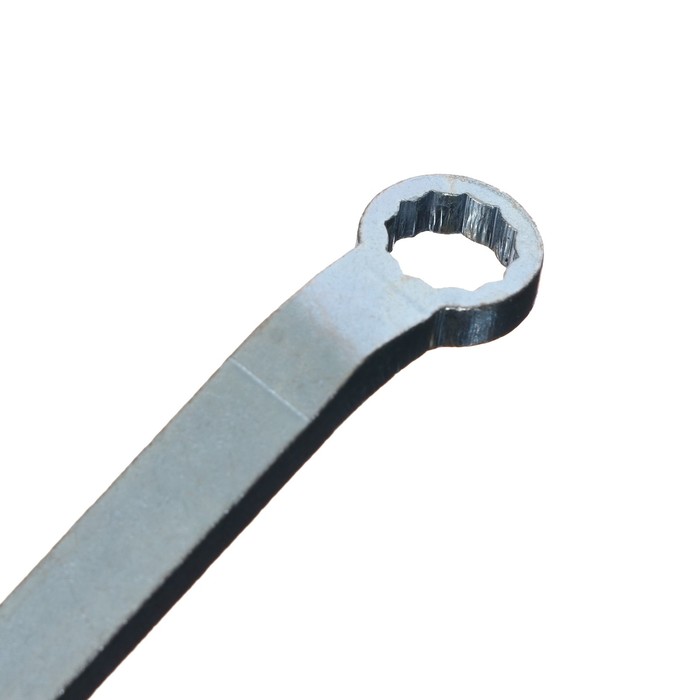

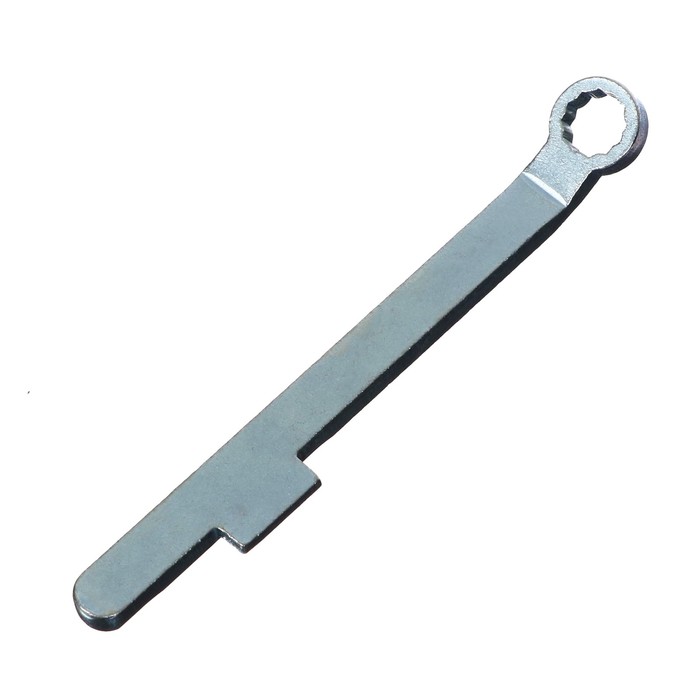

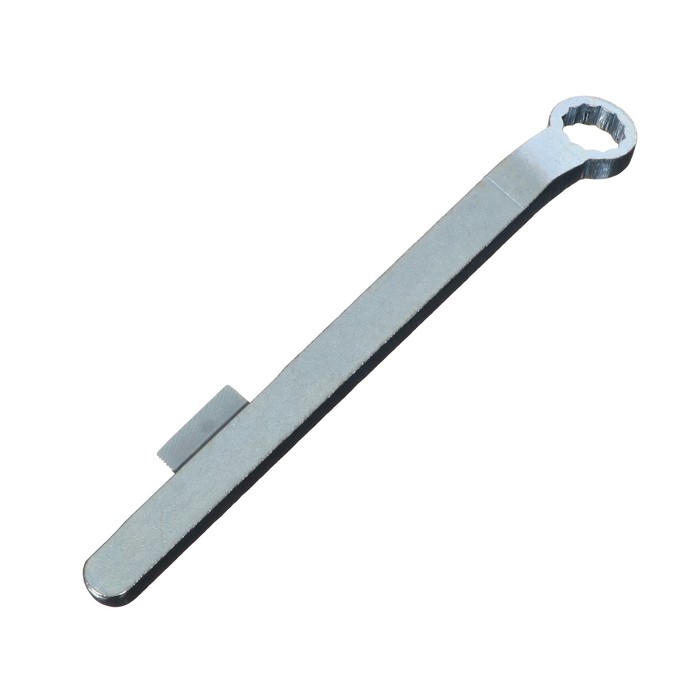

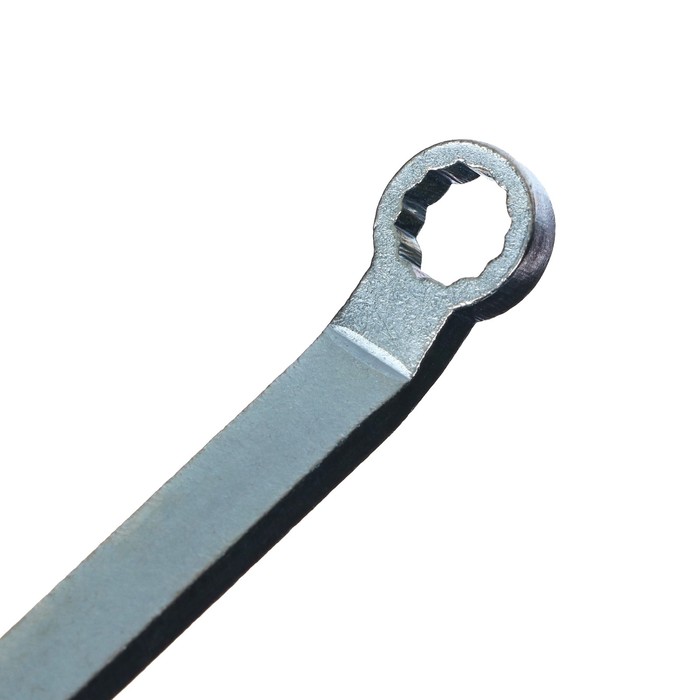

• Key of the double-sided S-8mm: 1 pc.
• Passport: 1 pc.
