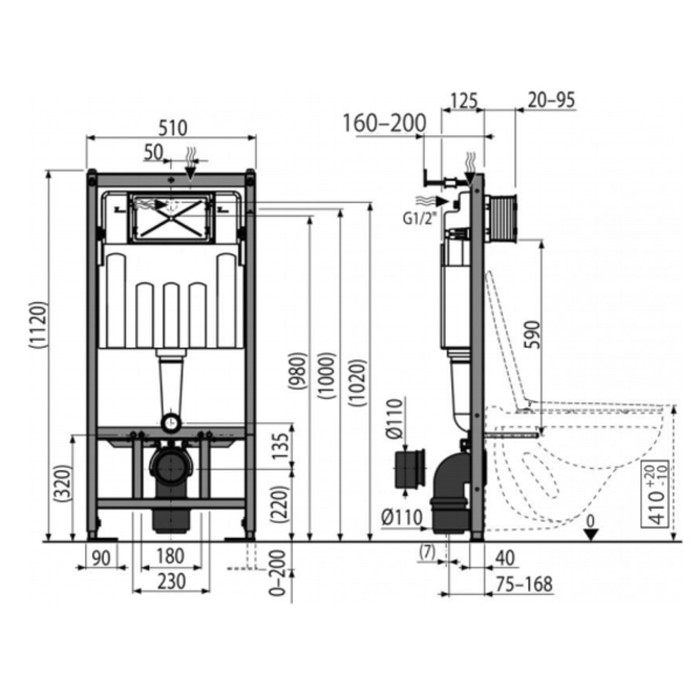

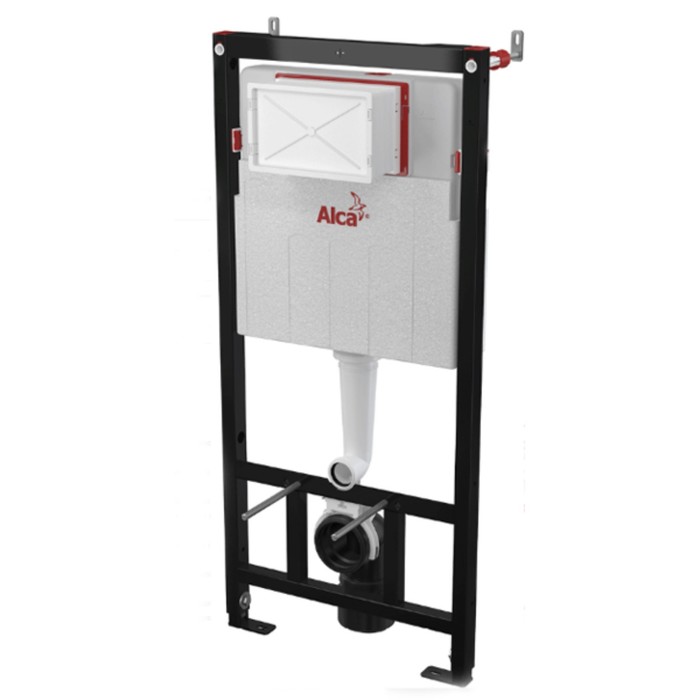

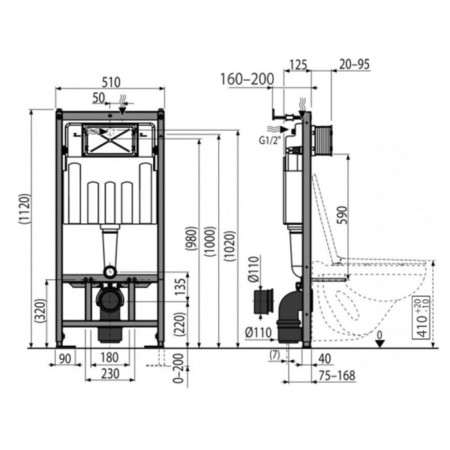

Installation Alcadrain AM101/1120-0001, for dry installation, installation height of 1.2 m

contains a dispenser of toilet pills

adjustable drawers in a range of 0–200 mm with the brake system designation of centering and nively

a movable holder for a stock knee, installed in eight positions at a distance 0–93 mm

angular valve with the ability to connect to the Mepla

pipeline system, the design of the frame allows the installation to the profile for drywall intended for these purposes, or to the carrier wall

The installed system is closed with a plasterboard sheet and does not need additional fasteners

Polystyrene insulation design prevents the condensation process on the surface of the tank and weakens the vibration in the construction structure

the ability to install the bracket with the transition of DG 1/2 "For connecting a bidet or beetta

double washing, independently adjustable, with a hygienic reserve

is suitable for installing pneumatic or sensory flushing

All buttons of control Alcaplast

The capacity of the service without the use of tools

Summing of water in the back/on top in the middle of the

tank is made of one fragment of polypropylene, which provides its 100% tightness < /p>

the lid of the service hole simplifies the installation process and protects against moisture and dirt

the mounting depth of the sleeve is regulated in the range of 20–95 mm

installation depth of 125 mm

The material of the supporting structure: metal processed with powder paint
