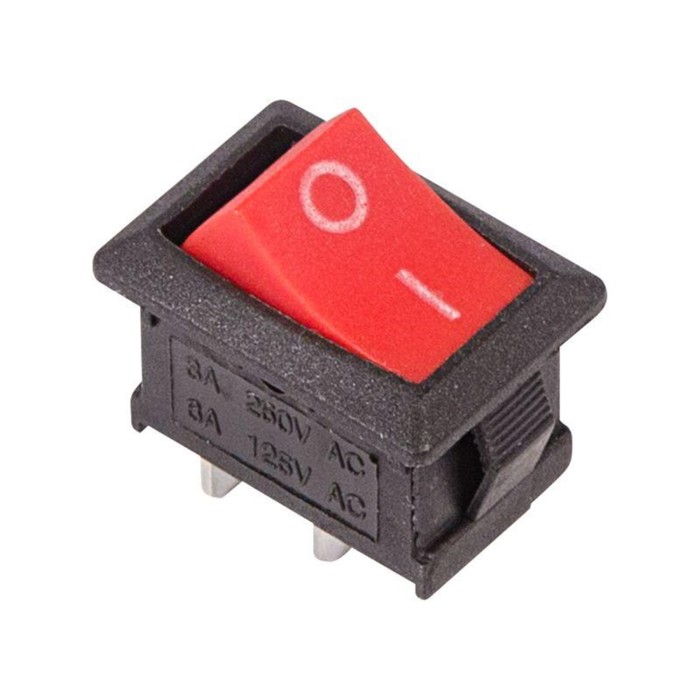

Klavic switch Rexant 36-2111, 250 V, 6 A, On-OFF, 2C, Red

keyboards 250V 6A (2C) On -OFF Red Mini (RWB - 201, SC - 768) is designed to switch electrical circuits of alternating current with a voltage up to 250V. The keyboards (rocker) switches are used as components of various electrical equipment (in network filters and extension cords, audio equipment, power supply, electrical installations in various industries, cars, and many other places). Such a keyboard switch has two provisions. The principle of action is based on moving the key to one of the positions. To switch to the right position, you need to make some efforts to the key. Installation is carried out without the use of screws on flat panels with a thickness of 0.8 mm to 3 mm. Contacts are connected by a flat terminal, or using soldering.

The main characteristics

- the nominal voltage: 250v.

- maximum voltage: 1500vs no more than 1 minute.

- Nominal current: 6A (250vac).

- Contact resistance: no more than 35 MOM.

- Type of switching: on-off.

- number of contact groups: 1.

- the number of contacts in the contact group: 2.

- Fixation of the provisions: yes.

- Indication of switching positions: no.

- operating temperature: from- 25 to +85.

- Resource: 10,000 cycles.
