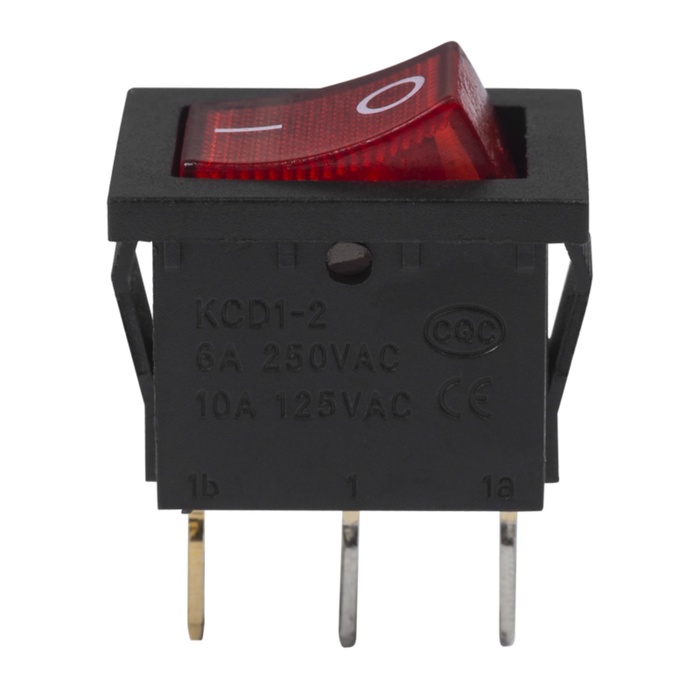

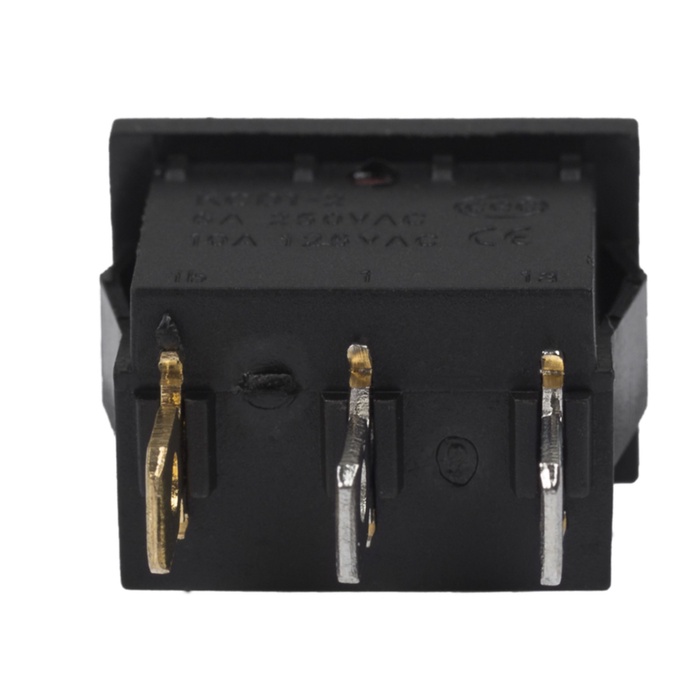

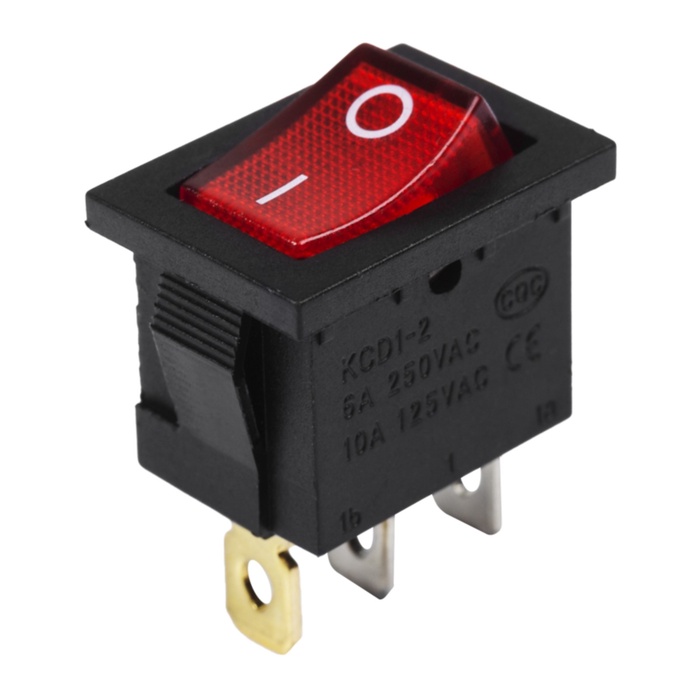

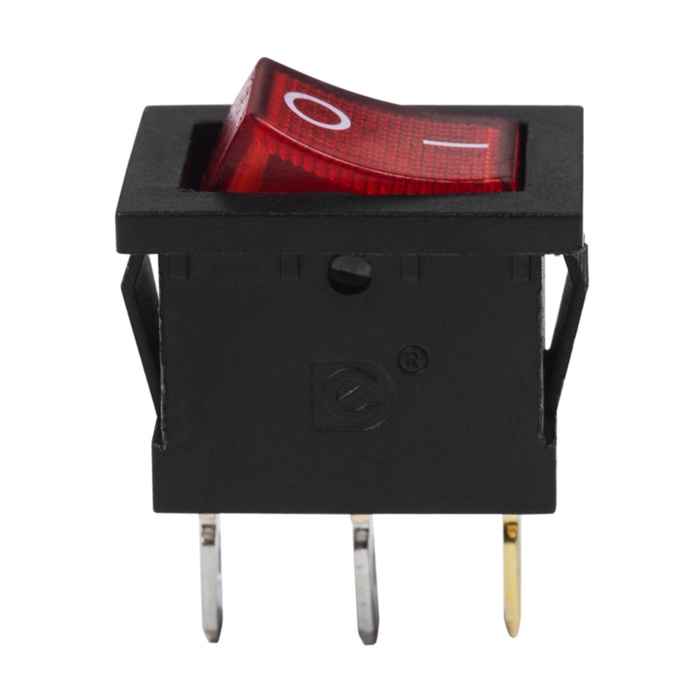

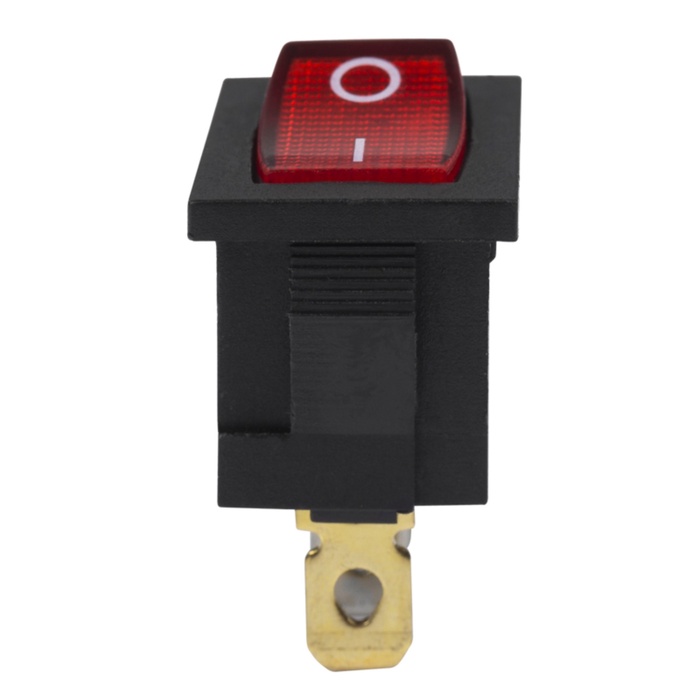

Klavim 24V 15A (3C) on-off switch Red with mini rexant backlight
Klavim 24V (DC) 15A (3C) ON -OFF red with Mini backlight is designed to switch electric circuits with a voltage of 24V. The keyboards (rocker) switches are used as components of various electrical equipment (in network filters and extension cords, audio equipment, power supply, electrical installations in various industries and many other places). Such a keyboard switch has two provisions. The principle of action is based on moving the key to one of the positions. To switch to the right position, you need to make some efforts to the key. Installation is carried out without the use of screws on flat panels with a thickness of 0.8mm to 3mm. Contact connection is carried out by a flat terminal, or using soldering.
| Characteristics | |
| A country | China |
| Color | Red |
| Degree of protection | IP40 |
| Fixation | Yes |
| Form | Rectangular |
| Indication | Yes |
| Nominal current, and | 15 |
| Operation temperature, ° C. | From -25 to 85 ° C |
| Tension, c | 24 |
| The number of keys | 1 |
| Type of voltage | DC |
