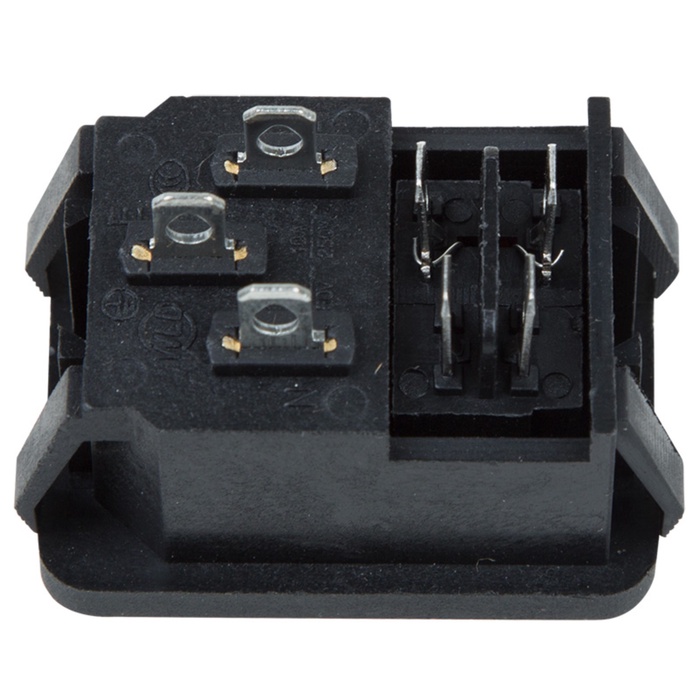

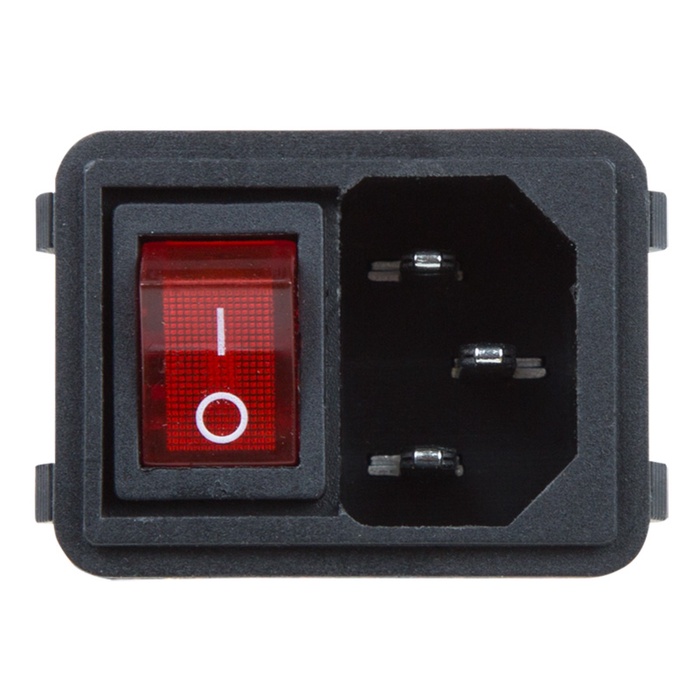

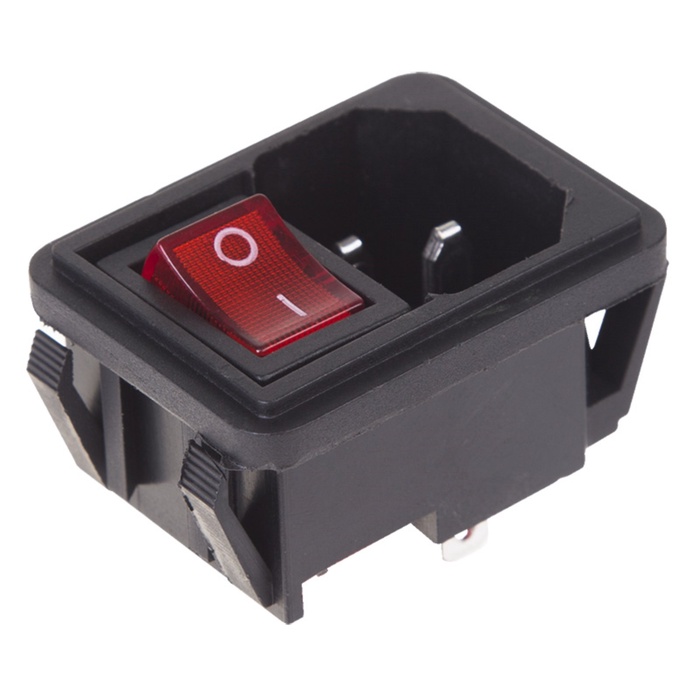

Klavima switch 250V 10A (4C) On -OFF red with backlight and plug C14 3PIN REXANT
$9.95
In Stock
Characteristics
A country
China
Color
Red
Degree of protection
IP40
Form
Rectangular
Height, see
3
keyboards 250V 10A (4C) ON -OFF red with backlight and plug C14 3PIN is designed to switch electrical accumulative currents with a voltage up to 250V. The combination of the circuit breaker with the power connector is used as components of various electrical equipment (on power supplies). The keyboard switch has two provisions. The principle of action is based on moving the key to one of the positions. To switch to the right position, you need to make some efforts to the key. Installation is carried out without the use of screws on flat panels with a thickness of 0.8mm to 3mm. Contact connection is carried out by a flat terminal, or using soldering.
| Characteristics | |
| A country | China |
| Color | Red |
| Degree of protection | IP40 |
| Form | Rectangular |
| Height, see | 3 |
| Indication | Yes |
| Length, see | 4.1 |
| Material | Plastic |
| Nominal current, and | 10 |
| Operation temperature, ° C. | From -25 to 85 ° C |
| Tension, c | 250 |
| The number of keys | 1 |
| Width, see | 3 |
