Klement flat Rexant RP-M 1.5- (4.8), nest 5.6 mm 0.75-1.5 mm2

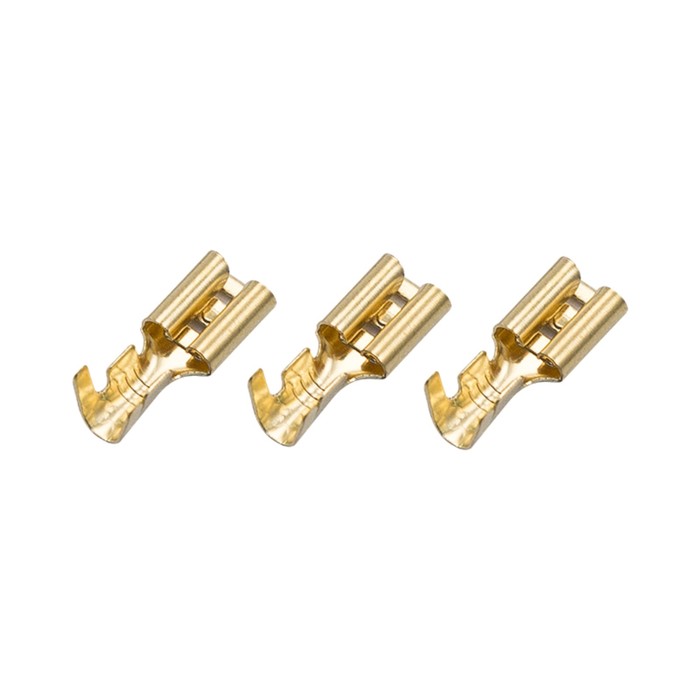

Flat terminal (KP Nest-6 mm) 1-1.5 mm² (DJ622-D4.8*0.5B) Rexant is designed to create a high-quality connection of electrical equipment or connection of wires with each other, which, if necessary, can be disconnected without unnecessary effort. Such a terminal is used to end the multi-core copper wires when installing mobile electrical contact connections on a rolling stock (car, car, airplane and shipbuilding). The squeezing is carried out by special press roles (HT-202; HT-230; HT-301) in the vein and isolation, which will provide maximum connection strength to the wire. Each terminal has a latch for a more durable mechanical connection with a plug.

The main characteristics:

• The temperature range of operation: -55...+135 ℃
< Li> section of the wires used in the range: 0.75-1.5 mm²

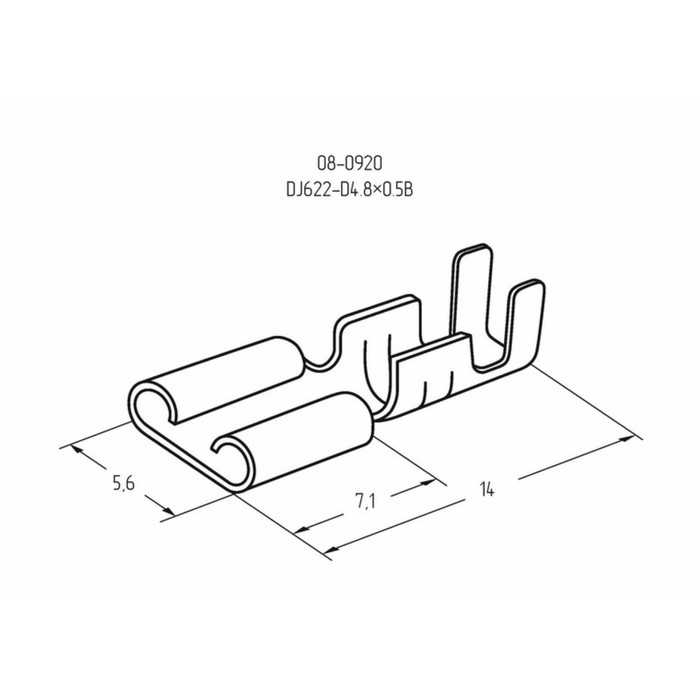

• The total length of the plug: l = 14 mm
• Work width of the nest: w = 5.6 mm

The use of flat terminals makes it possible to significantly accelerate electrical work, while the possibility of repeated disconnection and accession of wires.
