LED LED GreenBean Studiolight II 100

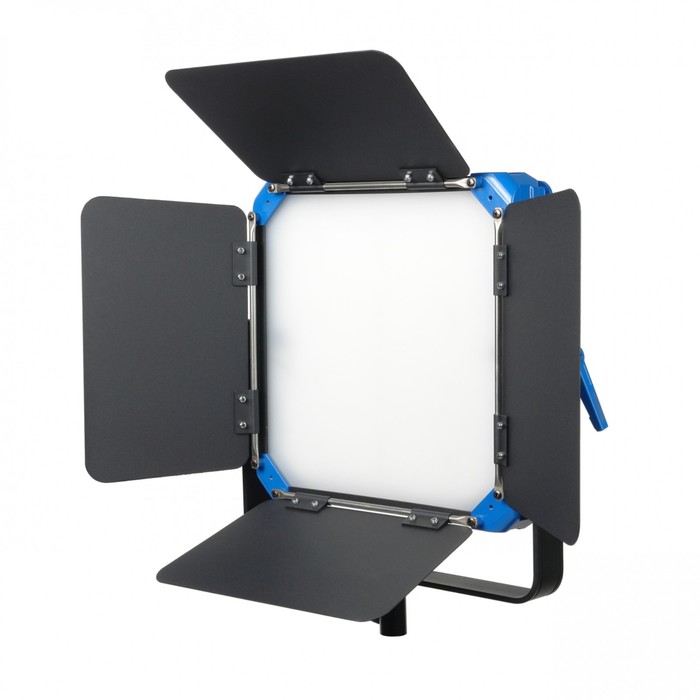

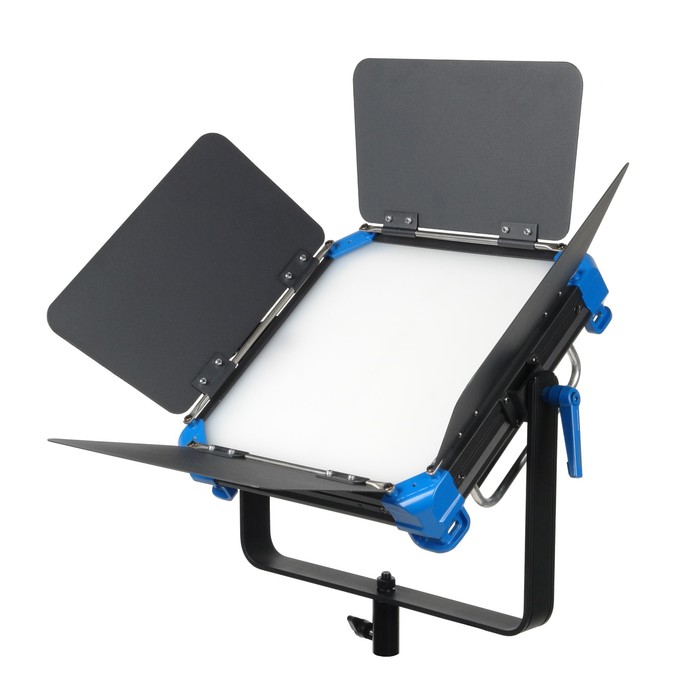

The new GreenBean Studiolight II 100 LED panel gives a bright flow of white “daytime” light with a maximum capacity of 100 W and a constant color temperature at any established power level. The illuminator is suitable for uniform lighting of the crew in television, video studio, when recording blogs, in film production and much more. The device is controlled using the control panel on the back of the device, as well as from the DMX remote control DMX-512. Complete metal curtains and a built -in dispersing filter help to create the necessary controlled lighting. The illuminator can serve to create lighting of any type - filling, drawing, background, etc.

Super -haired uniform luminous flux

224 Super -fingered and economical LEDs give out a uniform luminous flux with a color temperature of 5600 ± 200 K. The service life of LEDs is more than 50,000 hours.

The high level of color rendering CRI> 95 and the lack of flicker make the illuminator suitable for professional shooting, and also reduce the time of post -production.

The glow surface of 265 x 265 mm is closed with a white scattering filter, softening the luminous flux with virtually no brightness.

operating modes and management

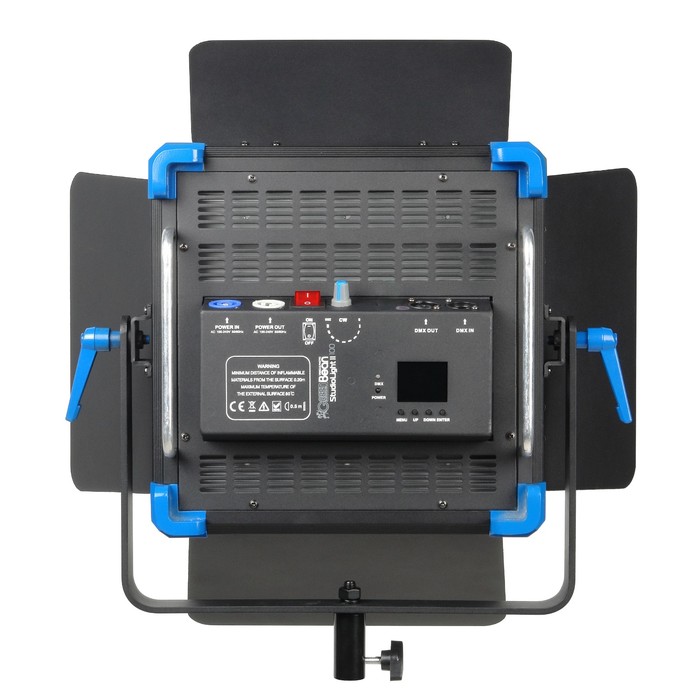

The screen of the illuminator provides the following modes to choose from: set the DMX channel address, set the “lead” or “led” mode of operation, manage in manual mode brightness using rotation or buttons regulators, call and configure the “strobe” mode and much Other.

The installed parameters are displayed on a 36x28 mm LCD-display color, helping to quickly reconfigure the illuminator. For the convenience of using an inclined or suspended illuminator, the image on the display can rotate at 180 °.

DMX512 technology

The control technology for the DMX-512 protocol allows you to control the lighter together with other devices connected to a line up to 500 meters long.

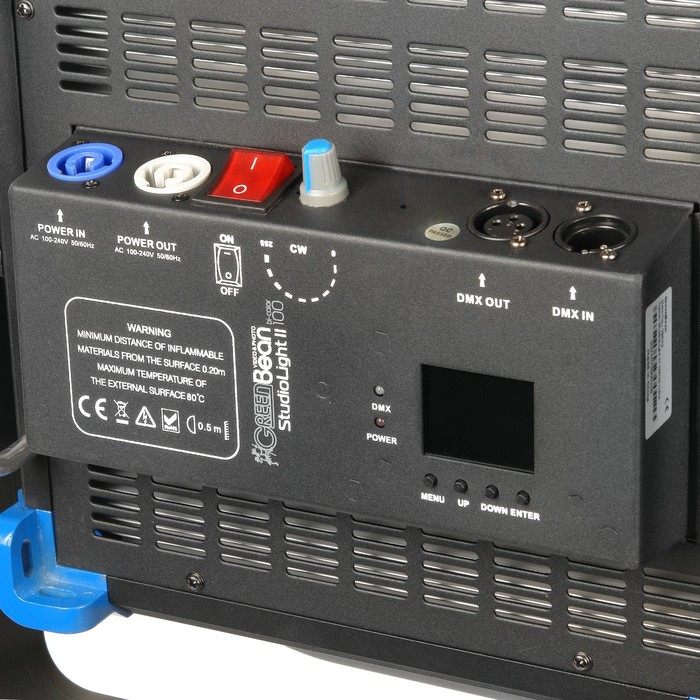

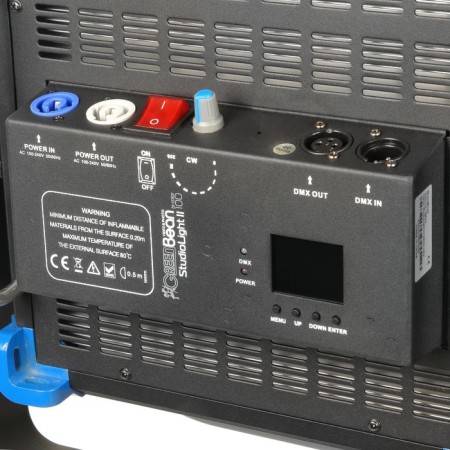

The illuminator is equipped with 3-PIN in “Entrance” and out “output” connectors, which make it possible to connect the illuminator via DMX protocol in the “leading” or “led” mode of operation.

Wireless control of the panel can be organized, for example, using the GreenBean Airdmx 512R Pro and GreenBean DMX Control 192 2.4G control panel.

natural cooling system

The device uses a natural cooling system - an aluminum case and ventilation holes are removed a sufficient amount of heat secreted by LEDs. The absence of a fan and the overheating system will ensure long -term silent operation of the device.

Thanks to this, the illuminator can be used when shooting with a synchronous sound recording or, for example, in theatrical productions.

Lighter power

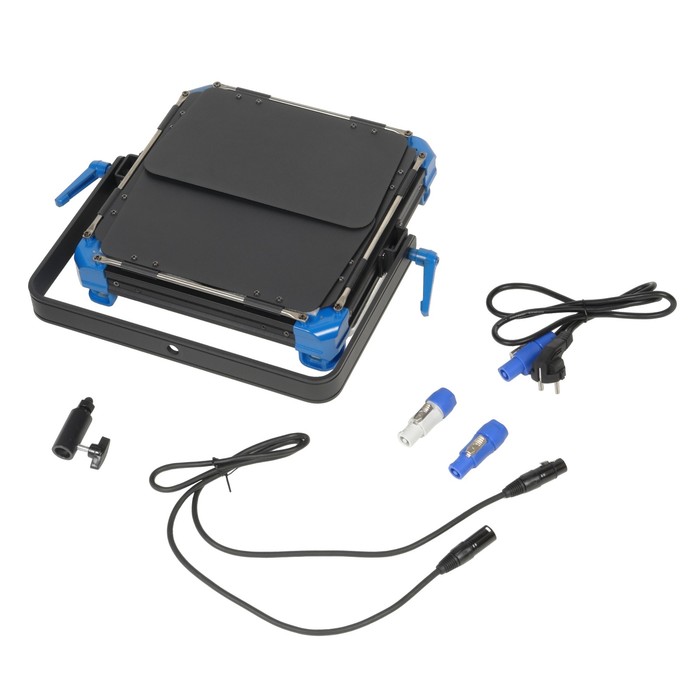

The illuminator is powered by a standard 220V alternate network, the power cable is included in the kit. It is possible to connect several illuminators at once to one power source using a pair of connectors on the illuminator housing. To do this, it is necessary to purchase only an additional power cable, the connectors for the connecting cable are already in the kit.

Cascade connection of illuminators is perfect for stationary work in the studio or on the stage, where illuminators are installed for long -term use.

Reliable installation of an illuminator

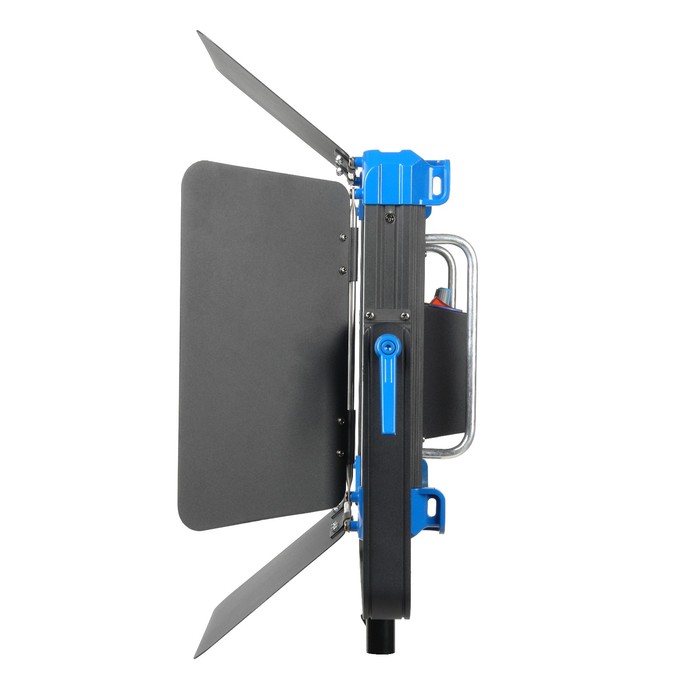

The illuminator is installed on the rack or suspended on a bar with a 5/8 spigote using a metal-lyre-lyre bracket. The illuminator is fixed at any angle of inclination to the rack, and the selected position is steadily fixed on both sides with screws with large metal handles.

On the case there are metal loops to fix the safety cables that increase the reliability of fixing the suspended illumination.

PDF operating manual in Russian can be downloaded here.
