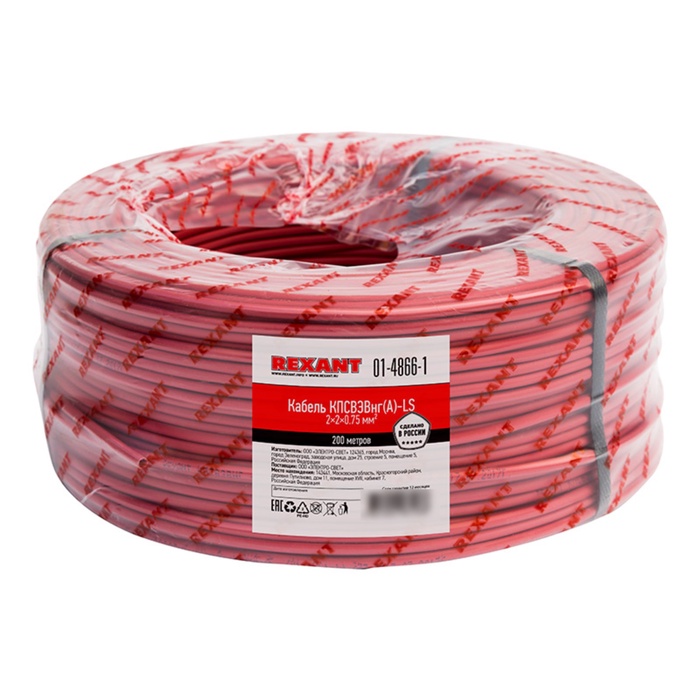

Meter cable for fire alarm KPSVEVG (A) -LS 2x2x0.75mm², bay 200M Rexant

The cable is used for group laying in fire alarm systems. It is used in organizing access and communication control systems, as well as for other control systems.

KPSVEV NG (A) -LS is designed for operation inside and outside the premises, subject to protection against direct exposure to solar radiation and atmospheric precipitation. It is made according to TU 27.32.13-009-39644825-2020.

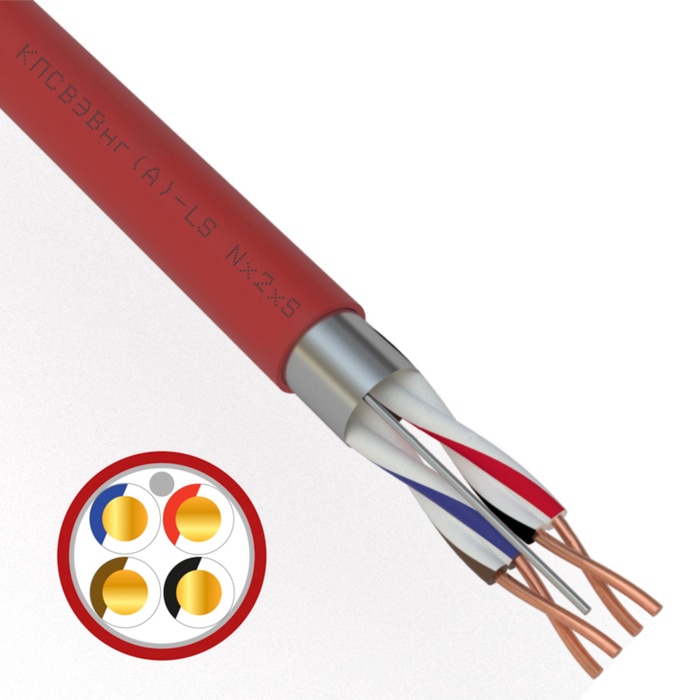

4 Single-wire conductive veins with a cross section of 0.75 mm² are made of copper and subjected to 100% annealing, so the cable becomes softer, which simplifies the installation process and increases The service life. The veins are insulated with a reduced fire hazard with polyvinyl chloride plastic and twisted with each other, which increases the signal range and reduces the tip.

on top of the vein is longitudinally imposed a screen of laminated aluminum foil with a contact conductor. a shell of polyvinyl chloride plastic, which has low fire hazard and low smoke and gas exploring.

The temperature of the gasket: -10...+50 ° C.
