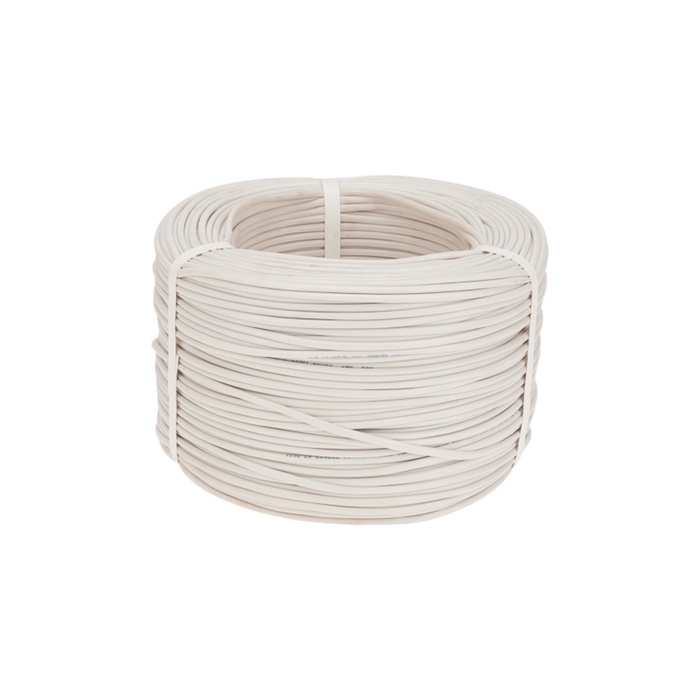

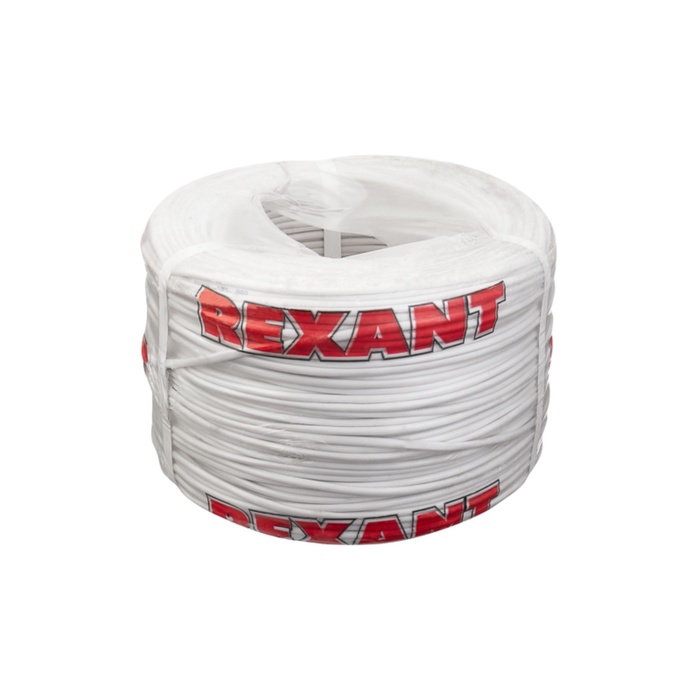

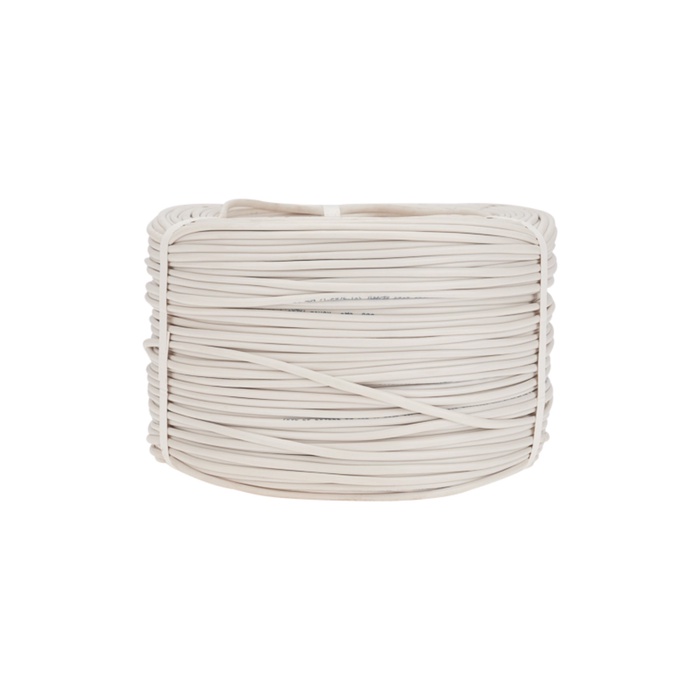

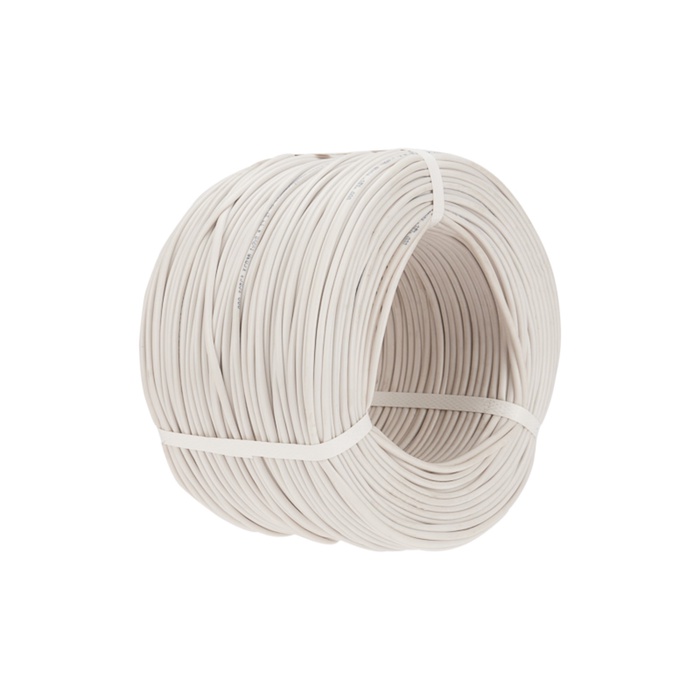

Meter cable signal KCPEB 1x2x0.4mm, 200M rexant bay

The cable is designed to install communication and signaling systems, telecommunications, control and data collection for single inpatient and non -stationary laying in collectors, tunnels, buildings, rooms in the absence of mechanical influences on the cable. Up to 145 in alternating current in the frequency range up to 50 Hz or 200 in direct current.

the cable is made according to TU 27.32.13-0530590-2017 and meets safety requirements in accordance with GOST 31565-2012. < /p>

2 Single -wire conductive veins with a diameter of 0.4 mm are made of copper and exposed 100% annealing, so the cable becomes softer, which simplifies the installation process and increases the service life. The veins are insulated with high -pressure polyethylene and twisted with each other, which increases the signal range and reduces the tip.

on top of the vein is longitudinally imposed a screen of laminated aluminum foil with a contact conductor.

veins and screen are insulated with polyethylene high pressure.

on top of these layers, a shell of polyvinyl chloride plasticity is applied, allowing the wire to operate at low and high temperatures.
