Optim-Apollo radio station, SV 26965-27410 kHz, 12 V, 4 watts, 40 channels

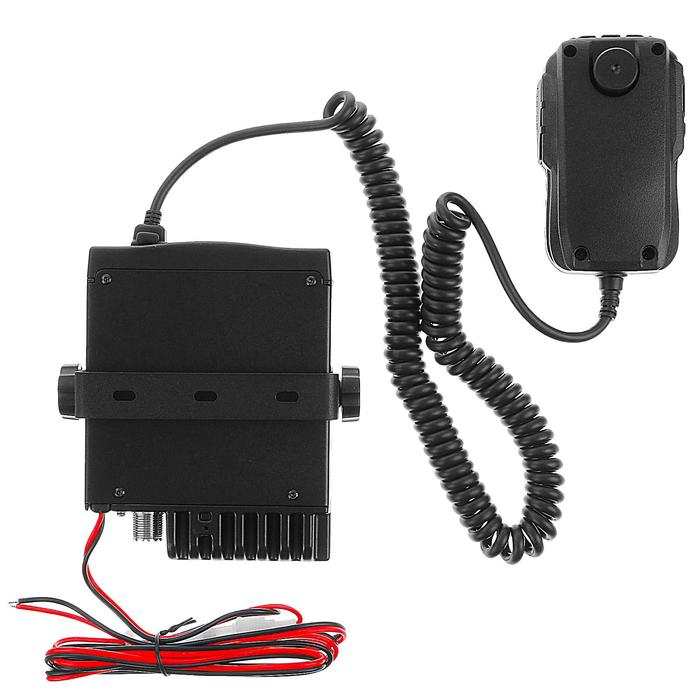

Automobile SI Radio station Optim Apollo is the long -awaited replenishment of the line of radio stations with full -fledged control on the tangent and the possibility of hidden installation of the case in the car interior. An excellent cooling radiator, informative display, a speaker on the manipulator, output power up to 10 watts, rich functionality, modern element base - all this is inherent in the new Apollo.

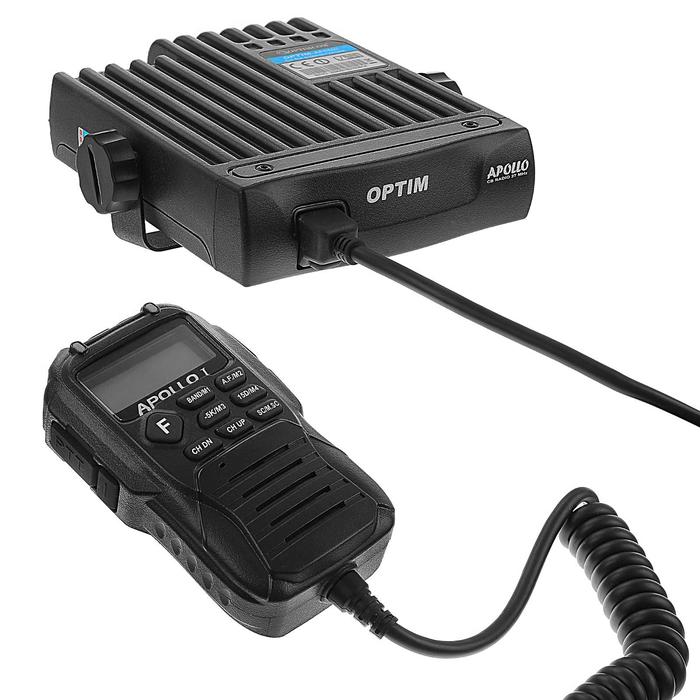

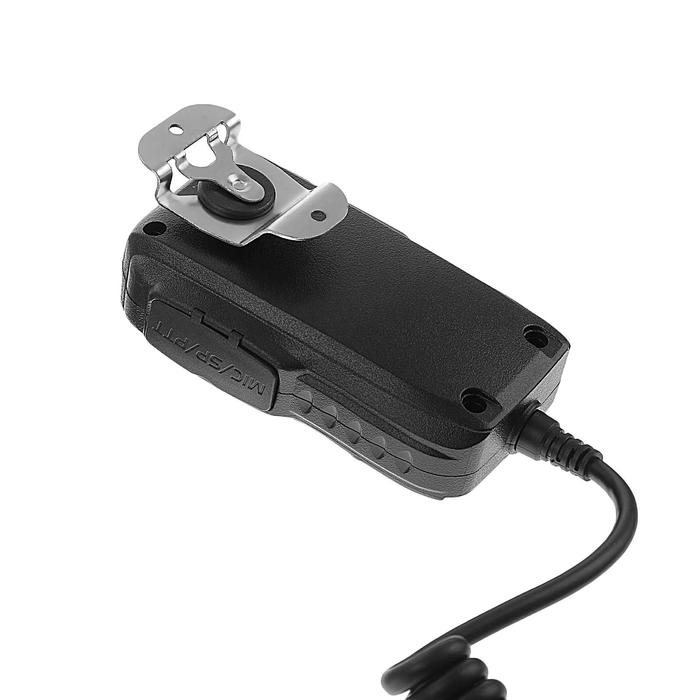

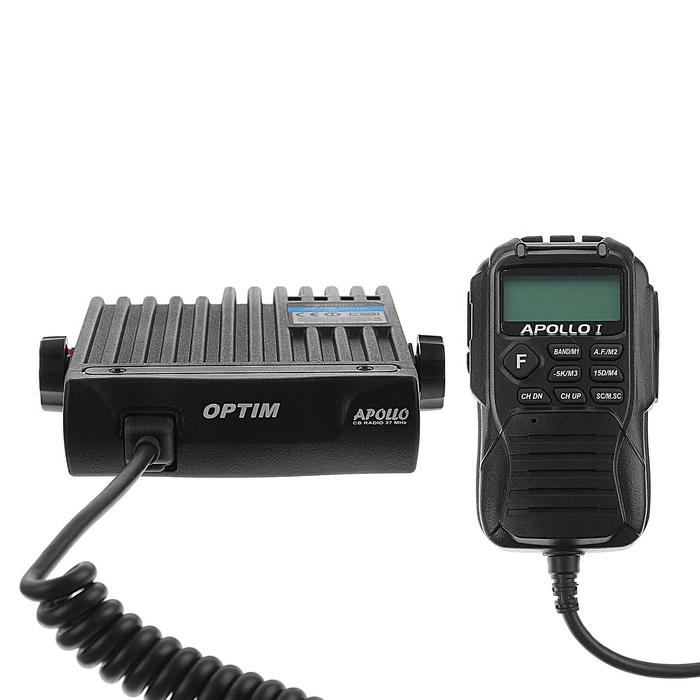

On the front panel there is a bright display with three backlight options and displaying many activated functions, 8 control buttons, a microphone hole and a 2-watt speaker. On the upper part, the channel selection keys are provided for "up", "down", as well as the power cage / off. On the left side there is a PTT button and a multifunctional mode switch button. On the right side is a headset covered with a polymer plug, which allows you to connect any headset to the radio station with the Kenwood standard connector from the portable radio, which opens up new capabilities in the car, full -fledged control using the headset and a quiet signal signal using a headphone. This possibility for SIS stations will allow you not to distract passengers and children in the car’s cabin, for example, during long trips, keeping silence in the cabin when your passengers are sleeping.

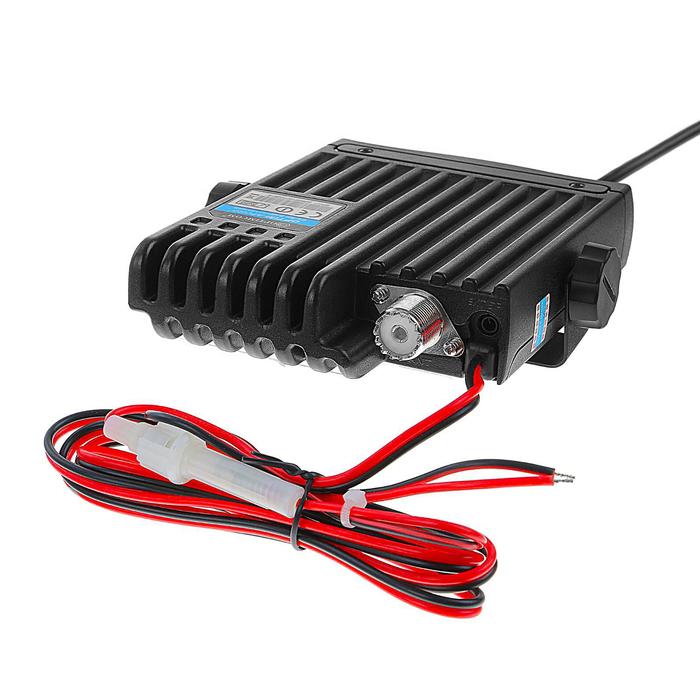

The Optim Apollo case is made of high -quality aluminum. The upper wall is a large radiator that effectively removes heat to prevent overheating. There is no speaker on the lower part, as organized in other walkie -talkies of a similar design - this is especially convenient, because Sound is reproduced directly from tangent. However, if the reproduction volume is insufficient, there is a connector for connecting an external speaker with a “jack of 3.5 mm” on the back of the case, which can be located in any convenient place of the car interior. Crossing the line of famous President William and Megajet MJ-555, Optim Apollo confidently makes him decent competition both in functionality and quality. Of course, it is available in the “zero-five-pins” modes, and an automatic ASQ-shummaid, and a wide frequency range, and the possibility of choosing a low or high level of output power, AM/FM modulation and everything that is necessary for a wide circle of users every day work on the air.

Features

• 10 frequency nets.
• Switching the frequency shift of Russia -Europe with one click of the key marked -5k. >
• Automatic reduction of the receiver reinforcement when working with powerful signals at close range.
• Memory for 4 channels, with memorizing the type of modulation and frequency shift of Russia-Europe.
• The ability to install any sequence of memory channels during scanning.
• adjustable output power of the transmitter 4 and 8 watts.
• 28 gradations of SQ settings.
• 10 sensitivity levels of ASQ.
• full-fledged S-meter.
• The prescribed priority of the Vol/SQ keys. Separate keys for choosing channels.
• The absence of defects when working with a disheveled antenna, the radio station does not freeze, the output cascade is not excited and does not fail. (According to our statistics, only 1 radio station was under repair with a weekend cascade, and then after a artisanal repair.)
• the receiver has a high overload, good selectivity, and has a filter of the 1st PC of the 4th Order (Continuity).
• does not require refinement of noise -given agents. Hysteresis 5-10 dB, do not clap.
• the key transition key to the 15th channel.

Characteristics: characteristics:

• frequency range: 25.615 - 30.105 MHz;
• adjustable output power: - Hi mode - up to 10 watts, - Low mode - up to 4 watts;
• compatibility from Kenwood-warts;
• Automatic Asq and manual noise-surveyors;
• Modulation AM/FM;
• Dual Watch function;
• European modes/ Russia switches in one button;
• selectivity near the neighboring channel 60 dB;
• current consumed 0.3 A nominal/1.8 A maximum;
• sound power of the dynamics 2 watts;
• display with 3 backlight colors (orange, green, yellow);
• 4 Enerle -dependent channels of memory;
• Memory/frequency modes;
• scanning;
• a strong case, a large radiator;
• the ability to connect an external speaker;
• antenna connector PL (UHF-Female);
• quick disconnecting of the sound of mute;
• protection against reinforcing.
