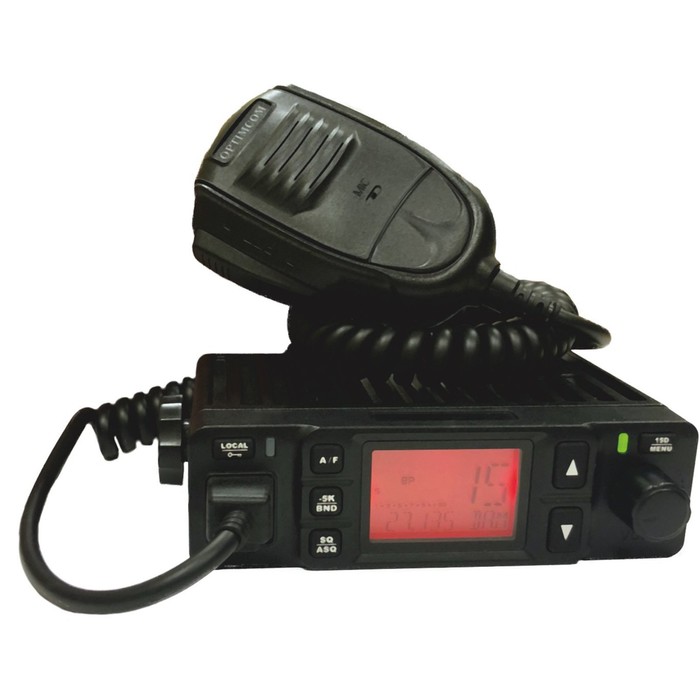

Optim Corsair radio, 40 channels, AM-Hm

Optim Corsair with power supply from a voltage source from 12 to 30 V. The radio station is designed to work in a frequency range of 27 MHz. Small dimensions and a large screen provide convenience in use.

supply voltage 12-24 c. > The frequency shift mode is -5 kHz

fast transition to the 15D -am.

modulation of AM and the World Cup

Local function -a rapid reduction in the reception and transmission of one button.

Night backlight of the buttons, the variable brightness and color of the display backlight.

Numeria voltage 12-24 in direct current.

frequency range 27 MHz

types of modulation F3E (World Cup) and A3E (AM).

transmitter:

Output power 4 watts.

Frequency instability 0.002%

frequency range of 300 Hz - 3 kHz

harmonic coefficient of not more than 8%

receiver:

maximum sensitivity of the World Cup with a signal/noise 10 dB - 0.5 μV/am with signal/noise 10 dB - 0.5 μV

frequency range of 300 Hz - 3 kHz (am, World Cup)

selectivity near the neighboring channel 65 dB

maximum sound frequency power 2 W

Supply Set:

Radio station 1 pc.

of the tangent with a cable and a connector of 1pc P>

Radio mounting bracket 1pcs.

tangent mounting bracket 1 pc.

set of fasteners of 1 pc. P>

Operation Instructions 1 pc.

packaging
