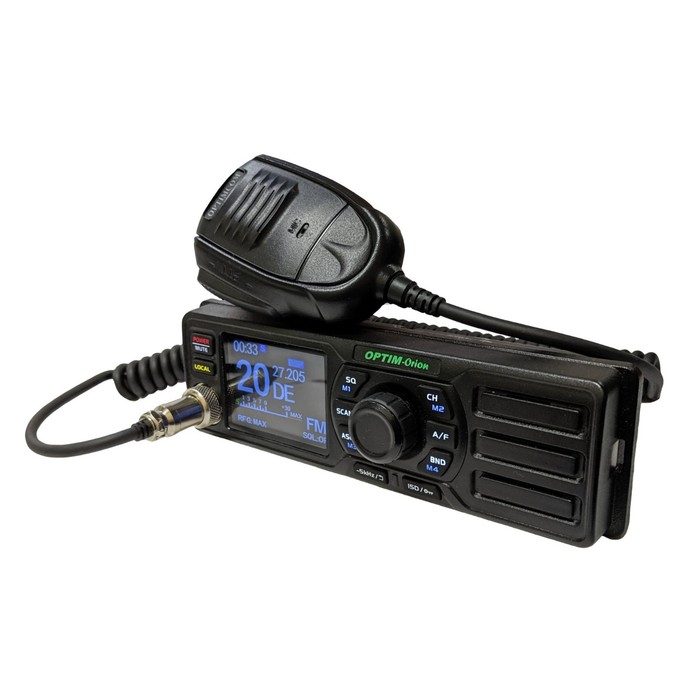

Optim Orion CB radio, color display, up to 15 watts

The new Optim-Orion radio station is a further development of the Optim Voyager model. The main advantages of the radio station are the ability to install a 1-Din slot or a vehicle’s windshield using a duma holder, as well as a large color LCD display, a loud speaker on the front panel, and a 12-24-voltable power supply.

Russian menu;

Local function - control of the transmission range with one button;

the built -in meter of the KSV with the protection of the transmitter from the malfunction of the antenna;

watch, calendar, voltmeter ;

CTCSS;

Vox function (voice activation of transmission);

number of channels: 40 (see the frequency grid);

Frequency range: 26965 - 27405 kHz;

types of modulation: am, World Cup;

power voltage: 10.5 - 30 V;

consumed current: no more than 3 A;

dimensions: 190x60x80 mm4

Output power: 4 W;

Frequency instability: 0.005%

frequency range : 300 Hz - 3 kHz;

non -linear distortions of not more than 8%.

maximum sensitivity of the World Cup: at 10 dB SINAD 0.25 μV AM with 10 dB s/w 0.5 MKV;

selectivity on the mirror channel: 60 dB;

maximum sound frequency power: 3 watts
