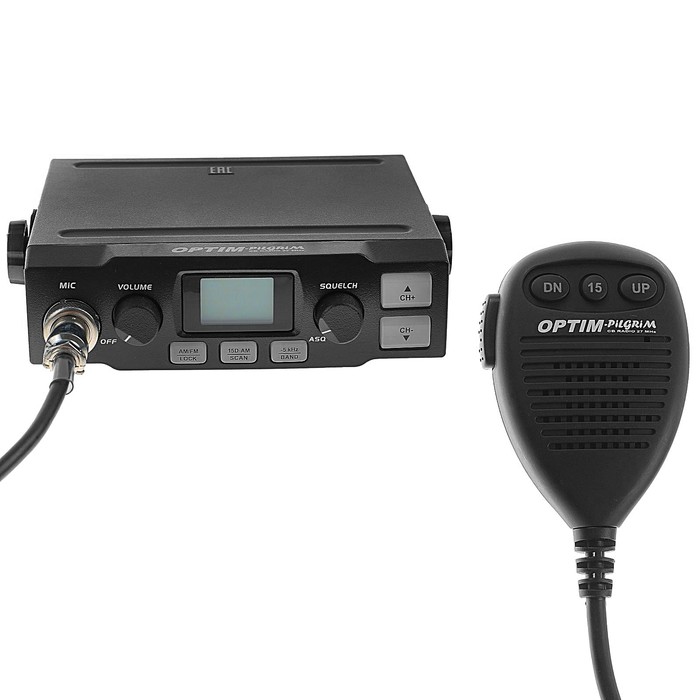

Optim-Pilgrim radio station, SV 26965-27410 kHz, 12 V, 4 watts, 40 channels

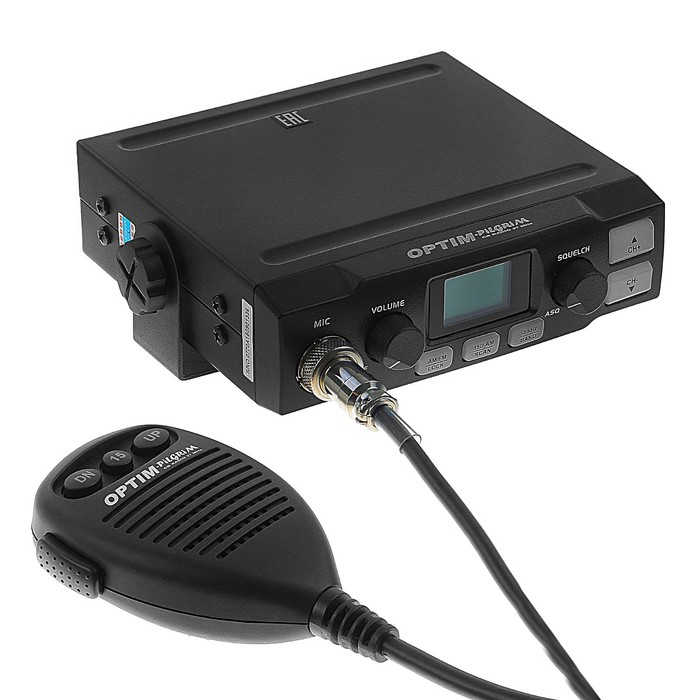

The Optim Pilgrim automobile radio station is designed on a modern element base with many functions relevant for each user and can be used for a wide range of tasks. The frequency range of the radio 25.615 - 28.305 MHz, the classic output capacity up to 10 watts. The main controls located on the front panel have an increased size, which positively affects the convenience of control. The buttons and display are illuminated by orange backlight, comfortable for the eyes in the dark. The display displays the main information about the working condition - the number of the selected channel, the installed modulation, the noise -agent mode, the level of output power.

the main distinguishing feature of the Optim Piligrim radio is the convenience of control. Multifunctional keys provide access to all radio functions. The left button under the display switches AM/FM modulation and locks the keyboard, the right one allows you to select the frequency grid and the standard shift mode minus 5 kHz, that is, the modes of "zeros" and "five". By pressing the central button, you can quickly switch to the “15 channel” of motorists, which other would not be at this time, and the modulation will automatically occur to the necessary on the 15 channel - AM. A long -term pressing of this button activates the scanning mode of channels to detect a useful signal.

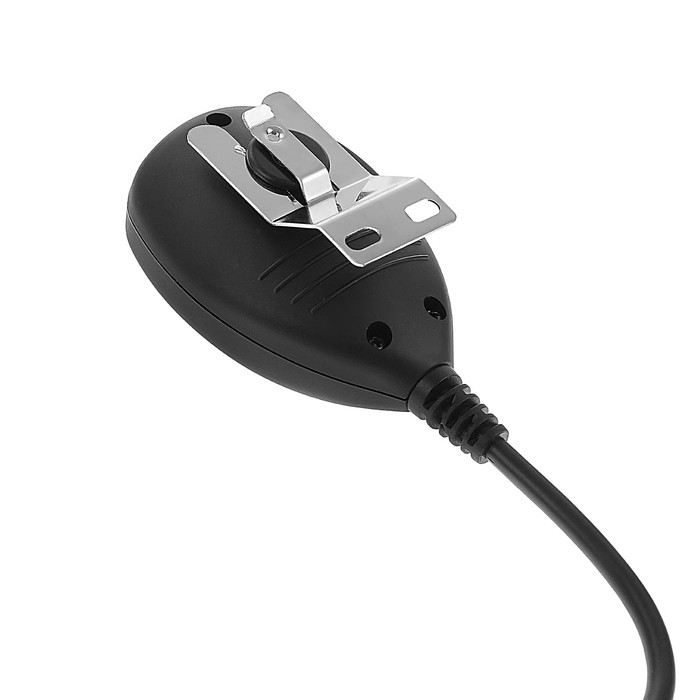

the Optim Pilgrim radio - a universal solution for all motorists. It is fulfilled according to modern requirements, has excellent modulation, protection against reinforcing and does not need any technical improvements. The tangent is equipped with the channel switching buttons and the "15" button for a quick transition to the 15th channel, as well as on the front panel. Two types of noise -quotant - manual threshold, the level of which is configured by a separate regulator, and the automatic ASQ allows you to choose the features necessary depending on the conditions of use.

features

characteristics:

• frequency range: 25.615 - 28.305 MHz;
• Output power: up to 10 watts (hi );
• The choice of power level - Hi (high), LOW (low);
• Modes "Russia" and "Europe" ("0" and "5");
• scanning mode;
• keyboard blocking;
• choice of modulation am/fm;
• duplicate functional buttons on tangent;
• Quick transition 1 button to "15 channel" and modulation AM;
• Number from a voltage of 13.8V DC;
• non -linear distortions - no more than 8%;
• Selectivity in the neighboring channel - 60 dB;

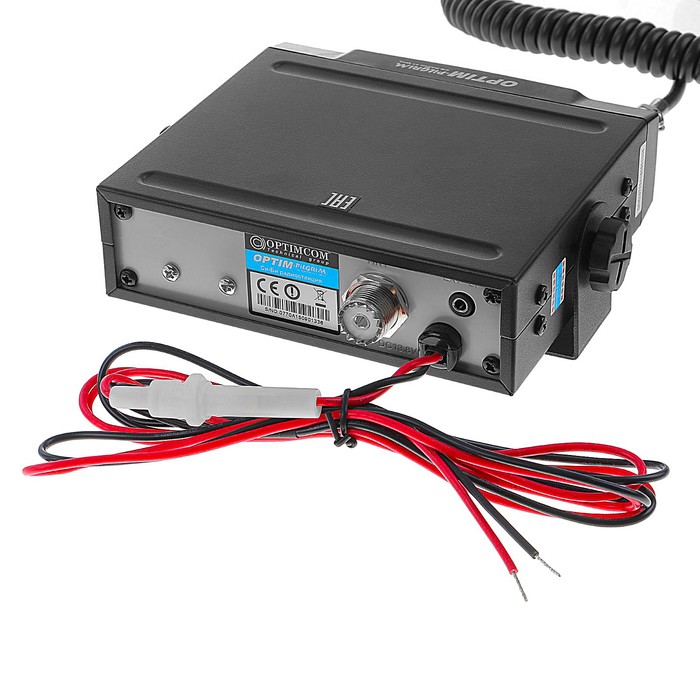

• The connector for connecting the antenna - standard PL -259 (UHF);
• Powerful speaker 3 watts.
