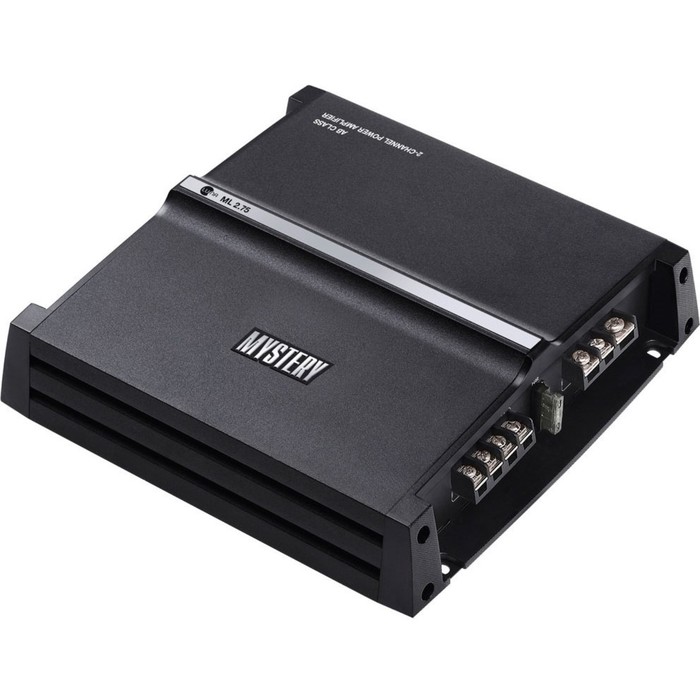

Power amplifier Mystery ML 2.75, 2x, 2x75 W

Two -channel power amplifier

Technical characteristics

Documentation

power (4 Ohms): RMS 75 W X 2, mah 150 W X 2

Power (2 Ohms): RMS 100 W X2, Mah 200 W X 2

Power in the bridge mode (4 Ohms): RMS 150 W X1, MAX 300 W X1

Input sensitivity 0.2 - 6 in

filter Low Pass - 50 Hz - 250 Hz

filter High Pass - 100 Hz - 100 Hz - 2.2 kHz

range of low -frequency level adjustment - 0/6/12 dB

signal/noise ratio -> 90 dB;

the coefficient of nonlinear distortion (ThD ) - <0.1%

protection from overheating, overloading on current, short circuit - fuse: 30a

dimensions (d x w x v) - 245 x 240 x 64 mm
