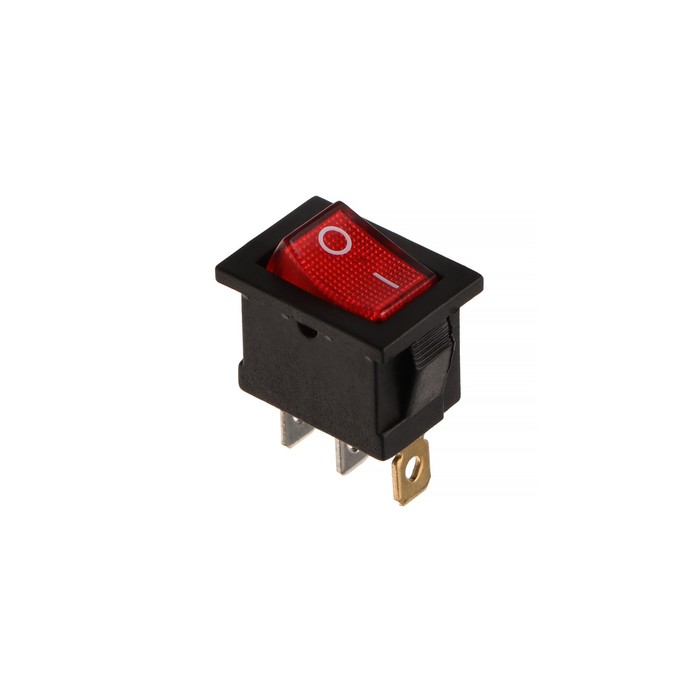

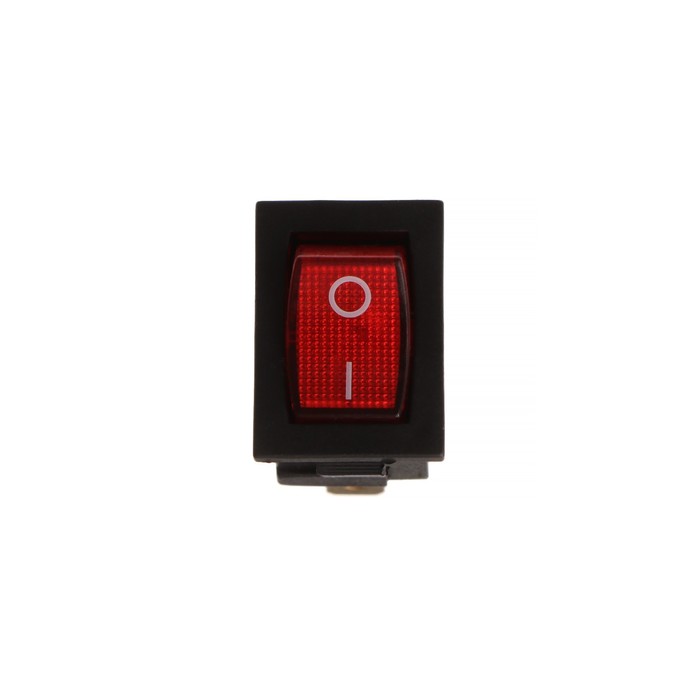

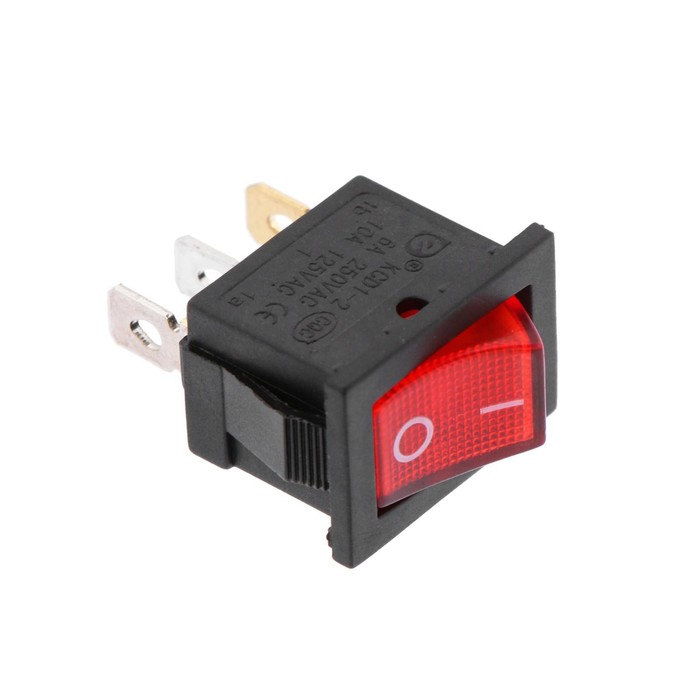

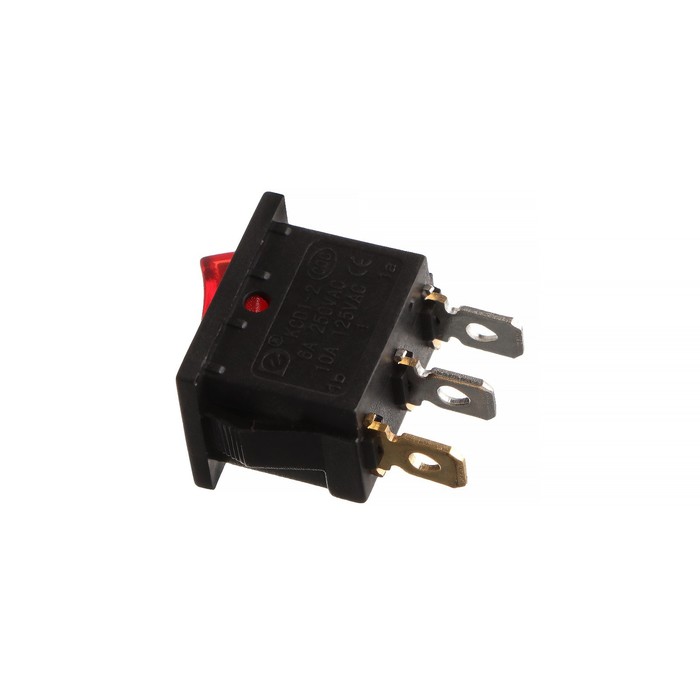

Red switch with backlight, 12 V, 15 A, 3 contacts, mini size

The switch is designed to switch electrical circuits. The keyboards (rocker) switches are used as components of various electrical equipment (in network filters and extension cords, audio equipment, power supply, electrical installations in various industries, cars, and many other places). Such a keyboard switch has two provisions. The principle of action is based on moving the key to one of the positions. To switch to the right position, you need to make some efforts to the key. Installation is carried out without the use of screws on flat panels with a thickness of 0.8 mm to 3 mm. Connection of contacts is carried out by a flat terminal, or using soldering.

characteristics:

• Nominal voltage and current: 15 A (12V);
• Contact resistance : no more than 35 MOM;
• type of switch: on-off;
• number of contact groups: 1;
• number of contacts in the contact group: 3;
• Fixation of the provisions: yes;
• indicator of the switching provisions: red;
• operating temperature: from -25 ℃ to +85 ℃;
• degree Protection (IP): IP30;
• resource: 10,000 cycles.
