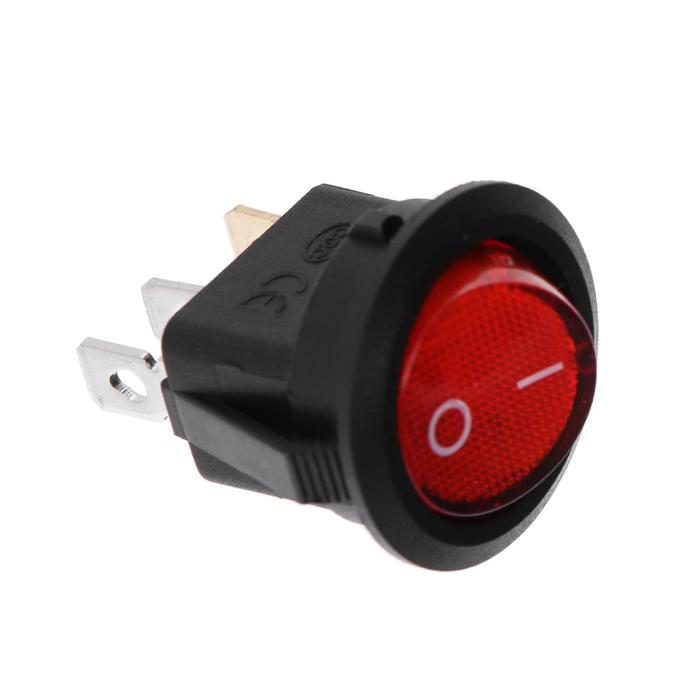

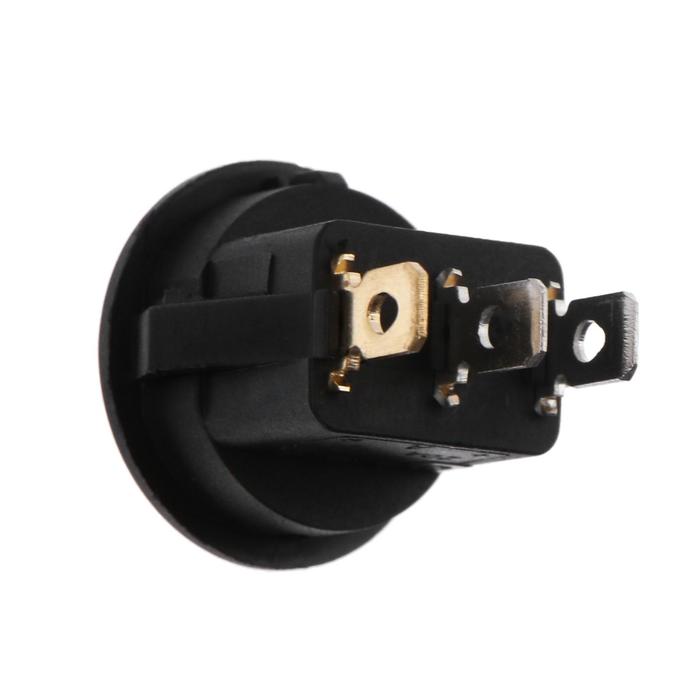

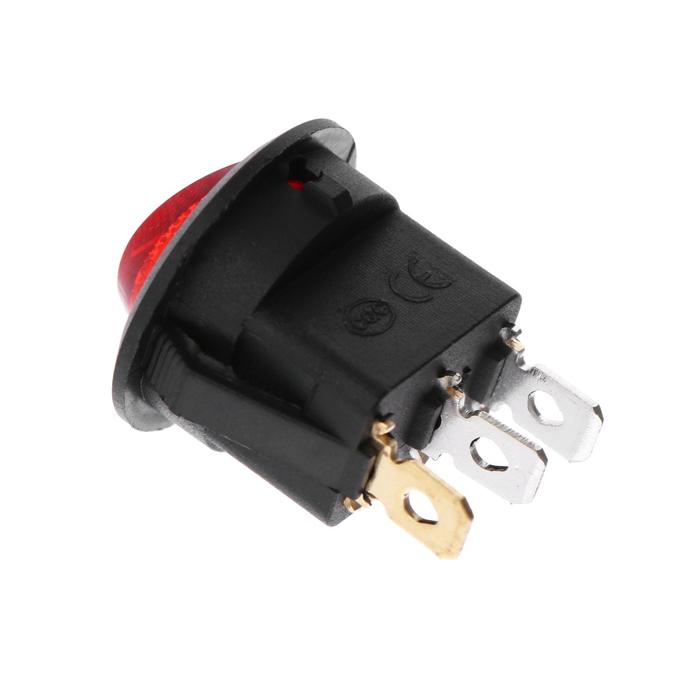

Red switch with backlight, 12 V, 20 A, 3 contacts
$2.98
In Stock
The switch is designed to switch electrical circuits with a voltage of 12 V. The keyboards (rocker) switches are used as components of various electrical equipment (audio equipment, power supply units, electrical installations in various industries, cars, and many other places). Such a keyboard switch has two provisions. The principle of action is based on moving the key to one of the positions. To switch to the right position, you need to make some efforts to the key. Installation is carried out without the use of screws on flat panels with a thickness of 0.8 mm to 3 mm. Contact connection is carried out by a flat terminal, or using soldering.
characteristics:
- Nominal voltage: 12 V;
- Nominal current: 20 A; /li>
- Contact resistance: not more than 35 MOM;
- Type of switching: on-off;
- Number of contact groups: 1;
- Number of contacts In the contact group: 3;
- Fixation of the provisions: yes;
- indicator of switching positions: red;
- working temperature: from -25 ℃ to +85 ℃;
- degree of protection (IP): IP30;
- resource: 10,000 cycles.
| Characteristics | |
| A country | China |
| Backlight | Yes |
| Color | Red |
| Current strength, and | 20 |
| Power, W | 240 |
| The wire | No |
