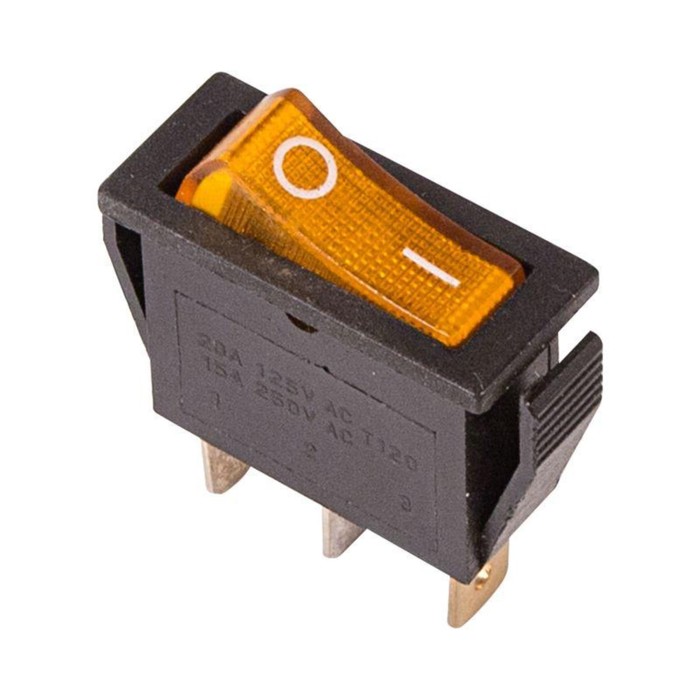

REXANT CARAMING REMOUSTER 36-2212, 250 V, 15 A, On-OFF, 3C, yellow, with backlighting

The keyboard is 250V 15A (3C) on-off yellow with backlight is designed to switch electrical circuits of alternating current with a voltage up to 250V. The keyboards (rocker) switches are used as components of various electrical equipment (in network filters and extension cords, audio equipment, power supply, electrical installations in various industries, cars, and many other places). Such a keyboard switch has two provisions. The principle of action is based on moving the key to one of the positions. To switch to the right position, you need to make some efforts to the key. Installation is carried out without the use of screws on flat panels with a thickness of 0.8 mm to 3 mm. Contact connection is carried out by a flat terminal of 6.6 mm, or using soldering.

The main characteristics

rated voltage: 250v.

maximum voltage: 1500VAS no more than 1 minute.

Nominal current: 15a (250vac ).

Contact resistance: no more than 35 MOM.

Type of switching: on-off.

Number of contact groups: 1.

Number of contacts in the contact group: 3.

Classification of the provisions: yes.

indicator of switching provisions: yellow.

Operating temperature: from - 25 to +85.

resource: 10,000 cycles.
