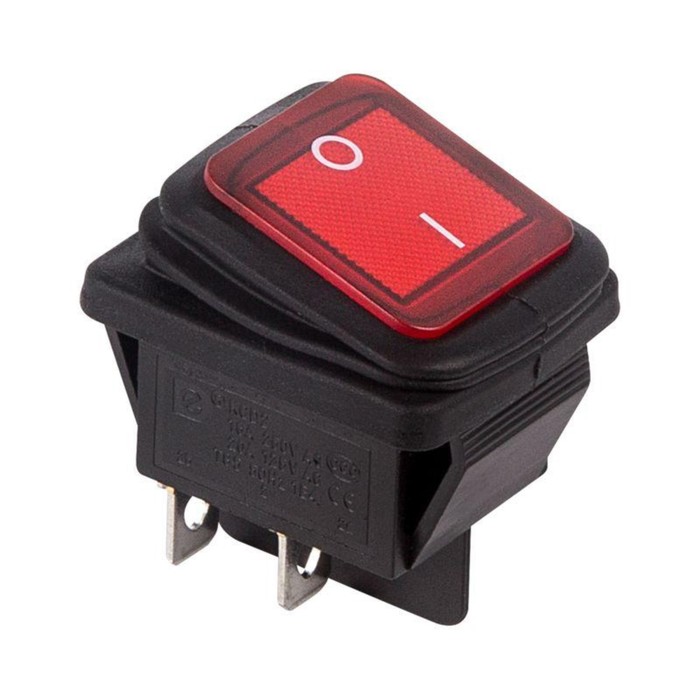

REXANT CLOSION REXANT 36-2361, 250 V, 15 A, ON -OFF, 4C, Red, with backlight

keyboards 250V 15A (4C) ON -OFF red with backlight is designed to switch electrical accumulative currents with voltage up to 250V in conditions of high humidity. The keyboards (rocker) switches are used as components of various electrical equipment (in network filters and extension cords, audio equipment, power supply, electrical installations in various industries, cars, and many other places). The protective shell of the key provides moisture and dust protection of the switching mechanism. Such a keyboard switch has two provisions. The principle of action is based on moving the key to one of the positions. To switch to the right position, you need to make some efforts to the key. Installation is carried out without the use of screws on flat panels with a thickness of 0.8 mm to 3 mm. Contact connection is carried out by a flat terminal of 6.6 mm, or using soldering.

The main characteristics

- the nominal voltage: 250v.

- maximum voltage: 1500vs no more than 1 minute.

- Nominal current: 15a (250vac).

- Contact resistance: no more than 35 MOM.

- Type of switching: on-off.

- number of contact groups: 2.

- Fixation of the provisions: yes.

- the number of contacts in the contact group: 2.

- indicator of switching positions: red.

- working temperature: from - 25 to +85.

- Resource: 10,000 cycles.
