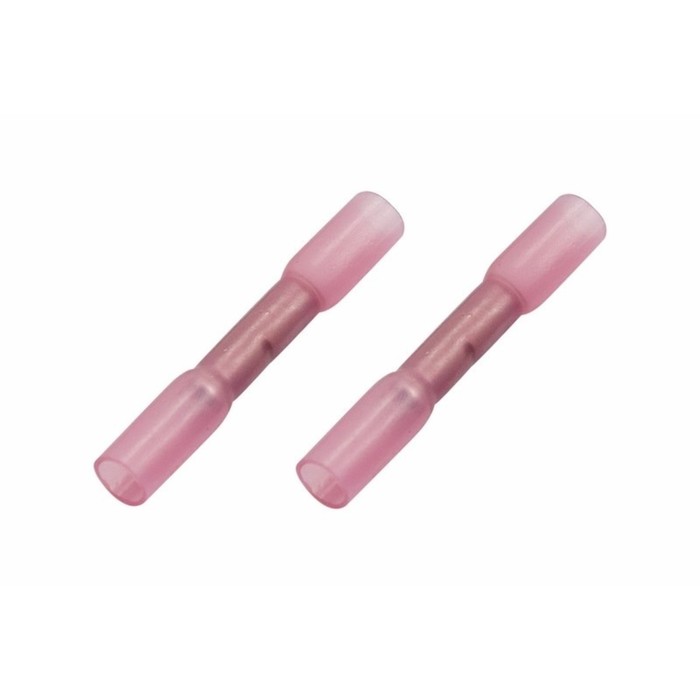

Rexant Connecting Guille, L-37mm 0.5-1 mm² (GSI-T1.0/GSI-T0.5-1.0) red

The connecting sleeve isolated, heat-shrinkable (GSI-T L-37 mm), 0.5-1 mm² red rexant is designed for high-quality and rapid connection of the wires with each other, as well as hermetic insulation of their connection. Such a sleeve is used to connect multi-core copper wires of the corresponding diameter when installing electrical contact connections on a rolling stock (car, car, airplane, aircraft and shipbuilding) or in other places where the reliability of the connection (for example, radio or climatic equipment) is important. The insulated heat -saturated Rexant connector consists of two components: a metal seamless tube and a protective insulator that closes the connector completely. A whole metal tube (contact part) is made of brass, with surface electrolytic pudding, has in the middle a restrictive cut, for a uniform establishment of wires on both sides. The heat -assigned insulator is made of a transversely stitched nylon with an inner glue layer and a shrinkage coefficient of 4: 1, which will provide complete sealing of the connection and reliably protect the contact part from external influences, and a person from electric shock. The translucent case allows you to control the institution. The squeezing is carried out by mechanical deformation with special press rolls (HT-301 H, HT-301 N, HT-301 W) on top of the protective insulator. The use of isolated sleeves makes it possible to significantly accelerate electrical and repair work, while the contact is completely tight and electrical safety.

Technical characteristics:

• Temperature range: -40...+ 105 ℃;
• cross section of the used wires in the range: 0.5-1 mm²;

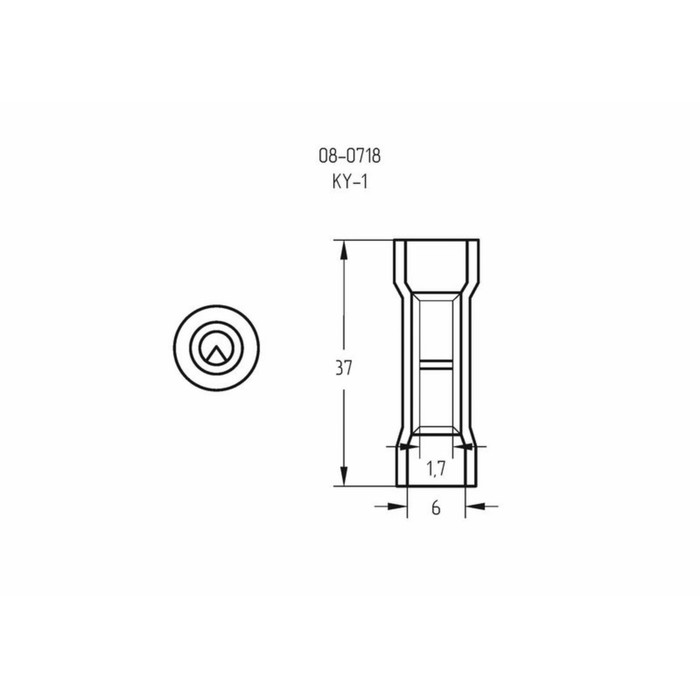

• The length of the connector: l = 37 mm;
• The maximum permissible value of the transmitted current: 19 A;
• moisture protection: IP67;
• The color of the insulator: red.
