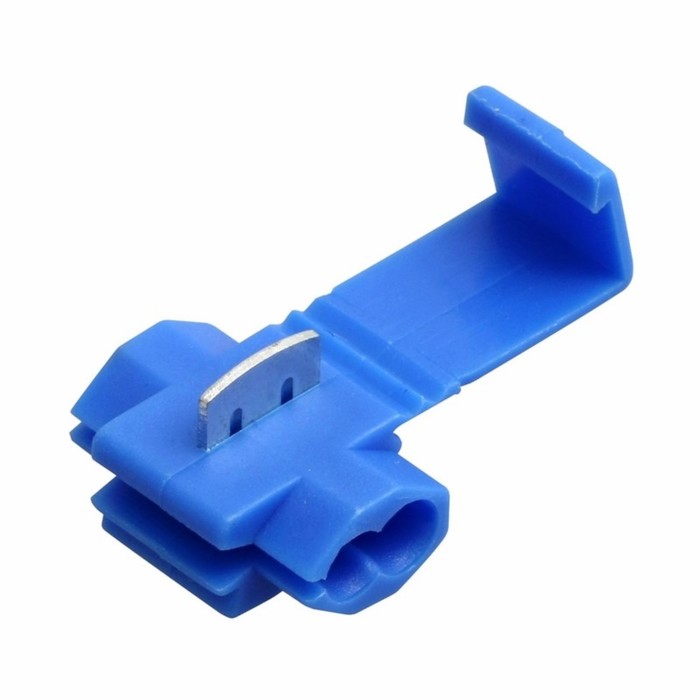

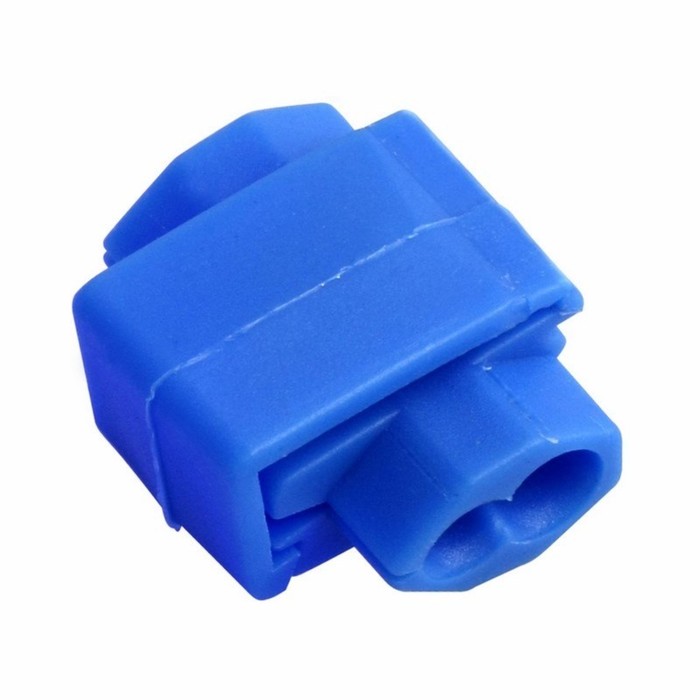

Rexant power lies, 1.0-2.5 mm² (OV-2/ZPO-1 1.0.5) blue

The branch 1.0-2.5 mm² Blue Rexant is designed to branch electricity from the current-consuming wire with subsequent supply of power for additional electrical equipment. Such, used in an electrician and radio electronics, the branch is a plastic case, inside which a contact knife is located.

Technical characteristics:

• The branch case is made of polyvinyl chloride (PVC); /LI>
• Sredal contacts are made of brass with an electrolytic protective coating;
• cross-section of the wires used in the range 1.0-2.5 mm²;
• Contact material: tinned brass;
• The most acceptable: 18 a/250v.

Installation:

• We lay the wires into the case (without preliminary cleaning);
• With a small effort on the lid, during which the contact knife cuts out the insulation of the embedded wires, we snap it;
• After the click, the connection is ready for operation.
