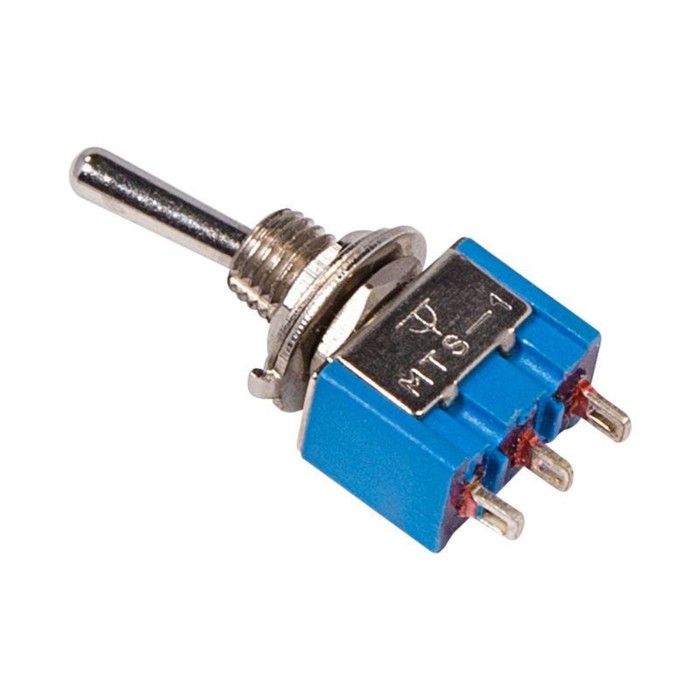

REXANT TUMBLER 36-4010, 250V, 3C, On-ON, 1 strip, Micro MTS-102

Tufbler 250V 3A (3C) ON - ON The Single -Paul Micro is designed to switch electrical alternating currents with a voltage up to 250V. Such a variety of switches is used on facial panels as components of various electrical equipment (in measuring instruments, power supplies, electrical installations in various industries, cars and trucks, trains and many other places). A distinctive feature of the toggle switch is a transit switch, the principle of operation of which is based on its movement in one of the positions. To switch to the right position, you need to make some efforts. Installation is carried out without the use of screws on flat panels with a thickness of 0.8 mm to 3 mm. Contact connection is carried out using soldering.

The main characteristics

rated voltage: 250v.

Nominal current: 3a (250vac).

Type of switching: on - on.

Number of contact groups: 1.

The number of contacts in the contact group: 3.

Regulation: yes.

indicator of switching provisions : absent.

Installation diameter: 6. 2mm.

working temperature: from - 25 to +85.

resource: 10,000 cycles.

This switch is installed on various technical devices that require high reliability in operation.
