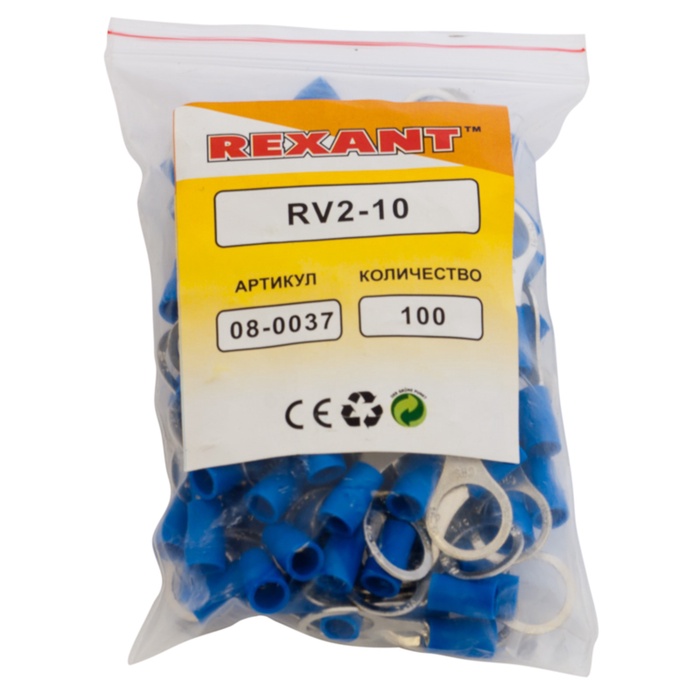

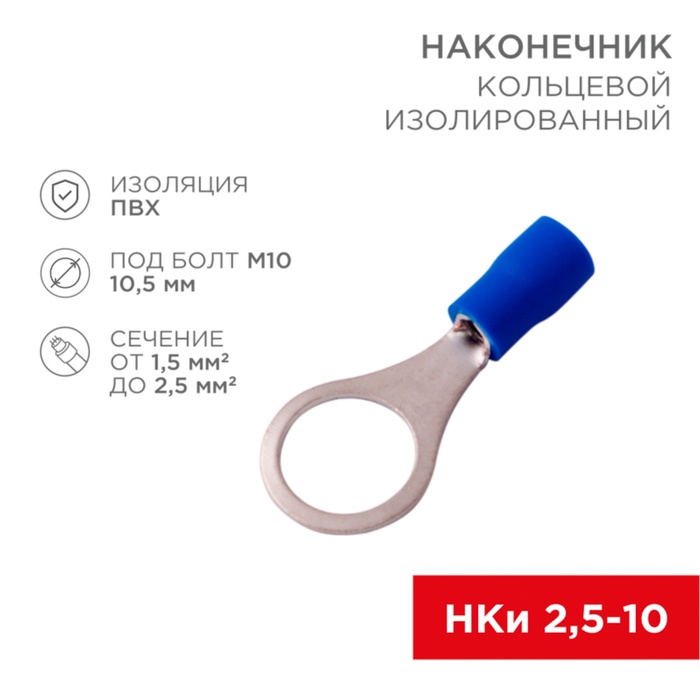

Ring Tip isolated Ø 10.5 mm 1.5-2.5 mm² (NKI 2.5-10) Blue Rexant
Ring isolated tip is designed to connect electrical equipment. Connection is carried out through a contact connection based on a screw fixation.
The tip is used to limit multi -core copper wires when installing mobile electrical contact connections on a rolling stock or in other places where the reliability of the connection is important.
The use of the tip accelerates electrical work and allows you to repeatedly disconnect and connect the wires to the equipment.
The tip consists of two components: a metal connector and a protective insulator.
a metal connector is made of copper with surface electrolytic luster Therefore, it can be used in conditions of high humidity. The terminal of the terminal is made of PVC.
squeezing is carried out by special press rolls on top of the protective insulator (ht-301 h art. 12-3014, 12-3014-4; ht-301 n art. 12-3116; ht -301 w art

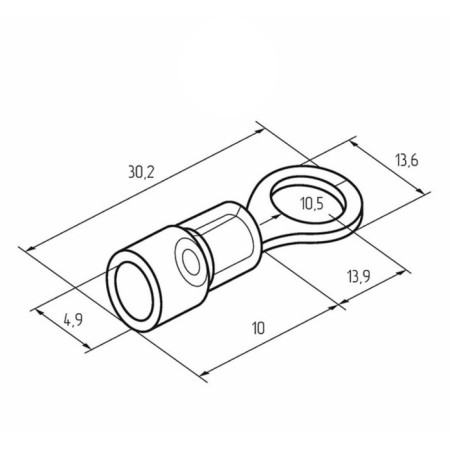

| Characteristics | |
| A country | China |
| Height, see | 1.36 |
| Length, see | 3.02 |
| Material | Copper |
| Operation temperature, ° C. | From -40 to 80 ° C |
| Section, mm | 1.5 - 2.5 |
| Tip of the tip | Annular |
| Width, see | 1.36 |
